Fluidized Bed Dip Powder Coating Equipment

Fluidized Bed Dip Coating Equipment

PECOAT® Fluidized Bed Dip Powder Coating Equipment

PECOAT® fluidized bed dip powder coating equipment includes fully automatic, semi-automatic and manual types, which can be designed and manufactured according to customers’ requirements. Its technological process is based on the technical requirements provided by customers, and combined with our company’s successful design and production experience over the years. PECOAT® aims to provide high cost-effective fluidized bed system for middle level clients who want to buy good equipment at good price.

Parts Associated

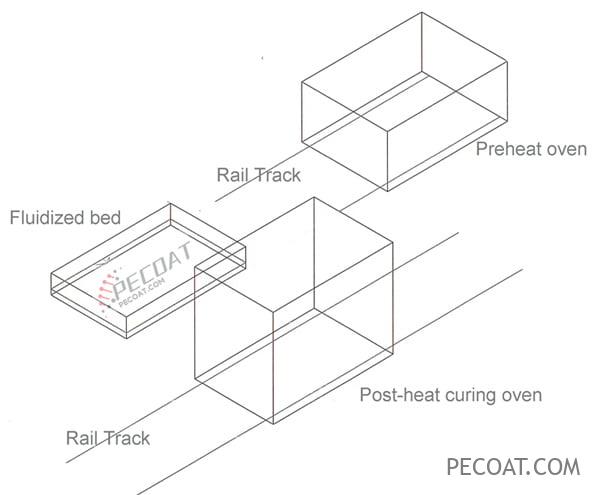

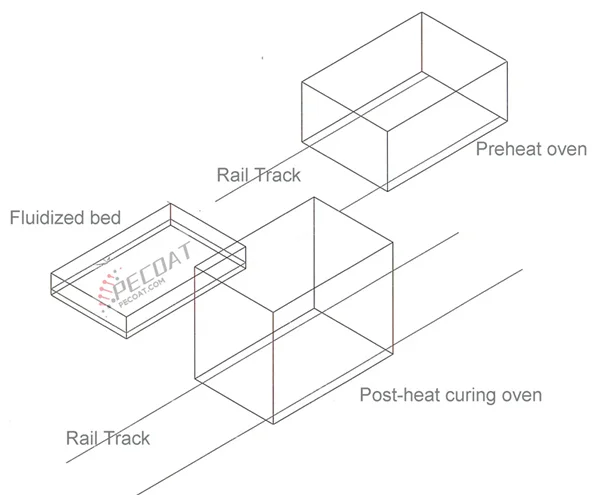

A complete system of fluidized bed dip coating equipment is comprised of the following components:

  1. Pre-heat oven
  2. Fluidized bed
  3. Post-heat curing oven
  4. Conveyer rail track
  5. Electric control system

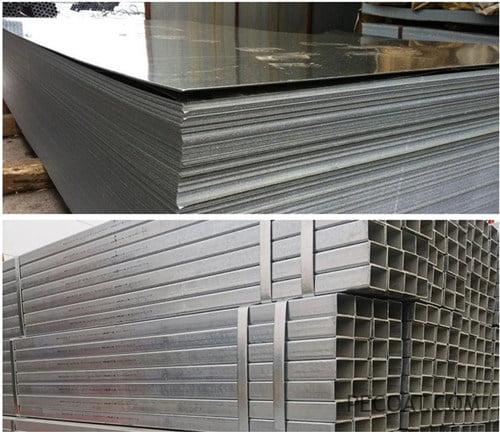

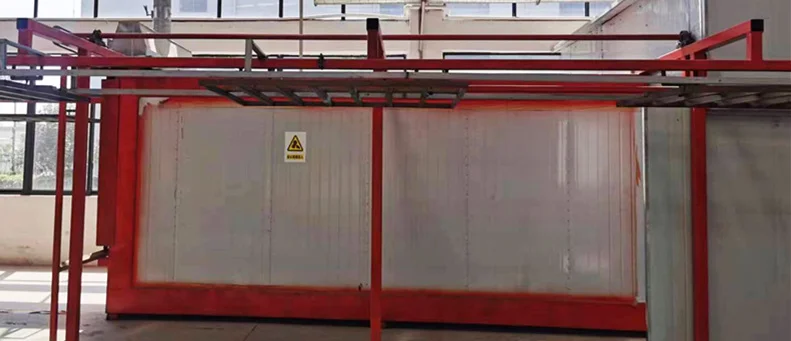

fluidized bed dip coating equipment The preheat oven shell use galvanized sheet, the inner layer use high-quality thermal insulation board, small thermal conductivity and good thermal insulation. The air inlet and outlet are equipped with two-way sliding doors to effectively prevent the hot air from overflowing, and the air inlet and outlet of the cabinet are equipped with exhaust fans to automatically discharge the exhaust gas . The preheating chamber has three kinds of heating mode for your option , electricity, gas or diesel.

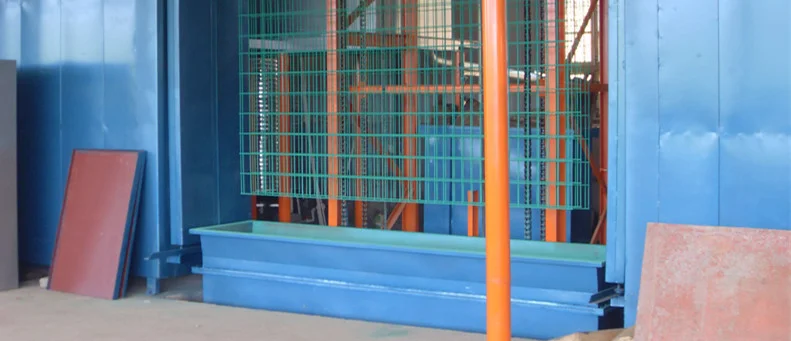

fluidized bed dip coating equipment Fluidized bed includes a dipping tank and a lifting system. Underneath the dipping tank, there is an air blower, which blow the powder to be like “boiled”. The lifting system ensure the stability and high efficiency of dipping process, and uniformity of the coating thickness.

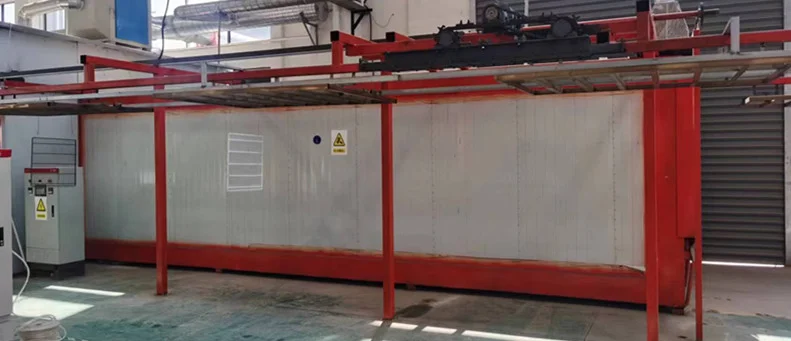

post heat ovenThe post-heat oven shell use galvanized sheet, the inner layer use high-quality thermal insulation board, low thermal conductivity and good thermal insulation. This post heating process causes the coating to levelling, harden ang gain strength. The heating system of the oven has three kinds of mode for your option , electricity, gas or diesel.

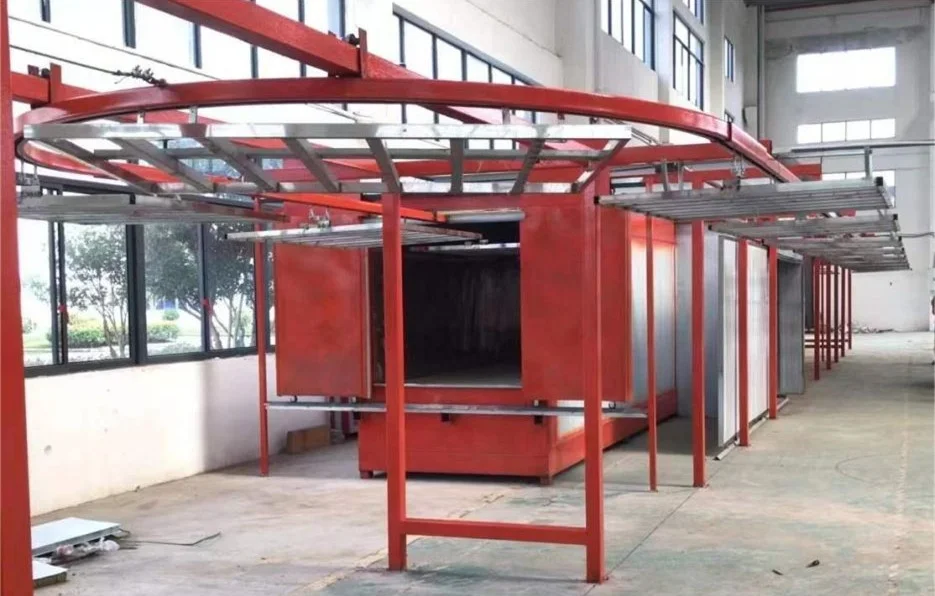

conveyor rail trackCycled conveyor rail track features high flexibility and high efficiency, it increases outputs dramatically. Semi-automatic type usually uses double track, full automatic types use double track or single track, which is determined by the shape and size of the workpiece.

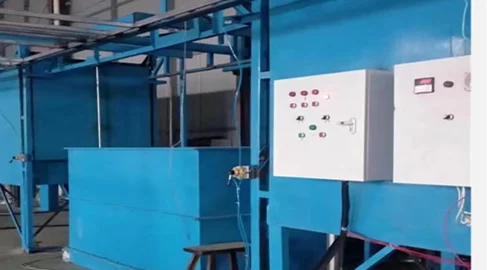

electric control systemElectric control system include:
  1. Pre-heating control system
  2. Dipping tank control system
  3. Conveyor track control system
  4. Post-heat curing oven control system.
Product Type

We have three types: manual type, semi-automatic type, full automatic type. Manual type is rarely used because of its high labor cost and low efficiency. Semi-automatic type is more popular due to its high cost-effective. The hanging trailer of the semi-automatic type is operated manually and usually has double rail track, and the hanging trailer of the full automatic type is motor-operated, and has single rail track or double rail track. Which type is better for you? The final solution is determined by the size and shape of the parts that need to be coated, your desired rate of production, your desired outputs and the required heating source type.

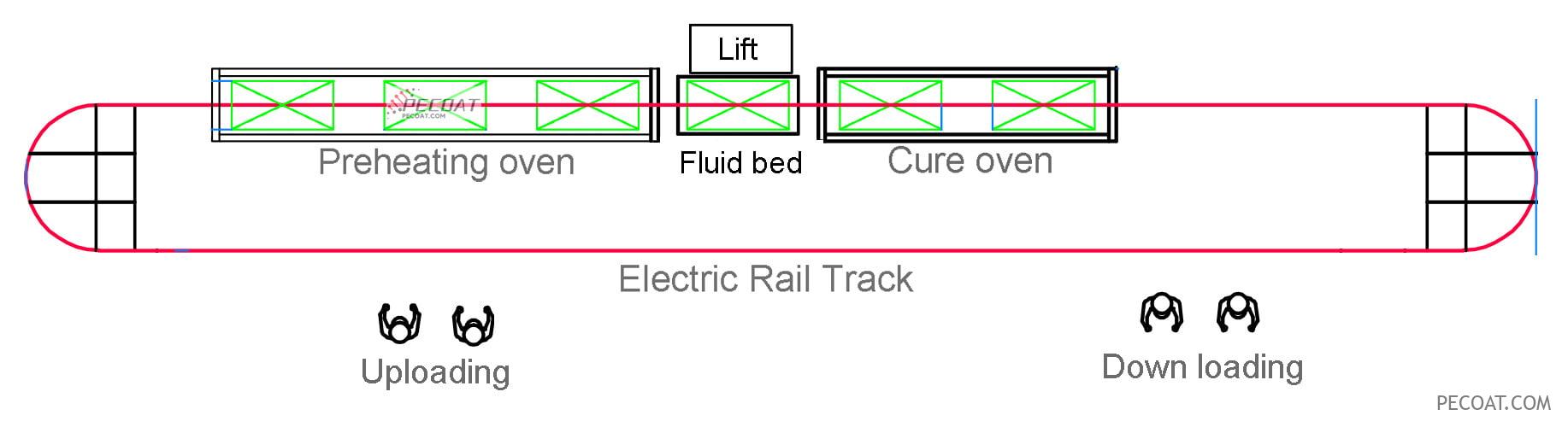

full automatic for Fluidized Bed Dip Coating Equipment

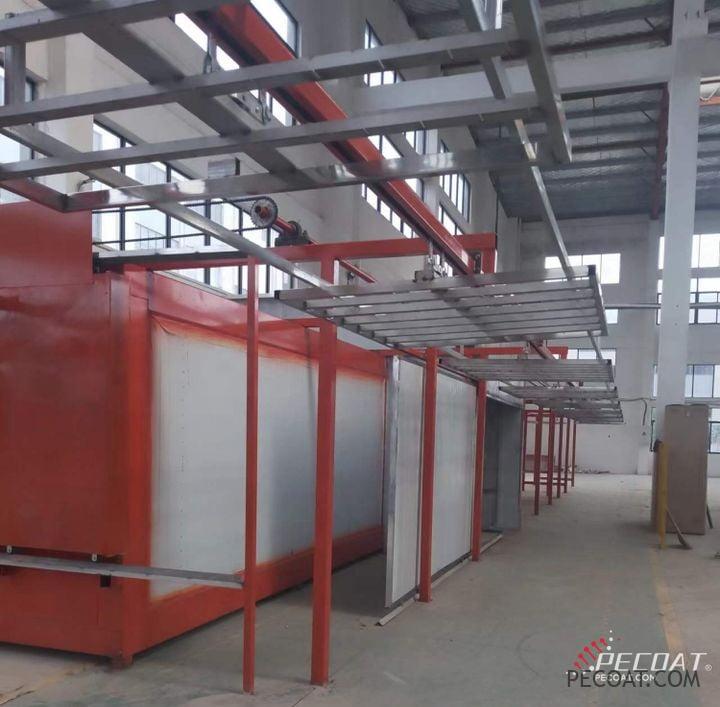

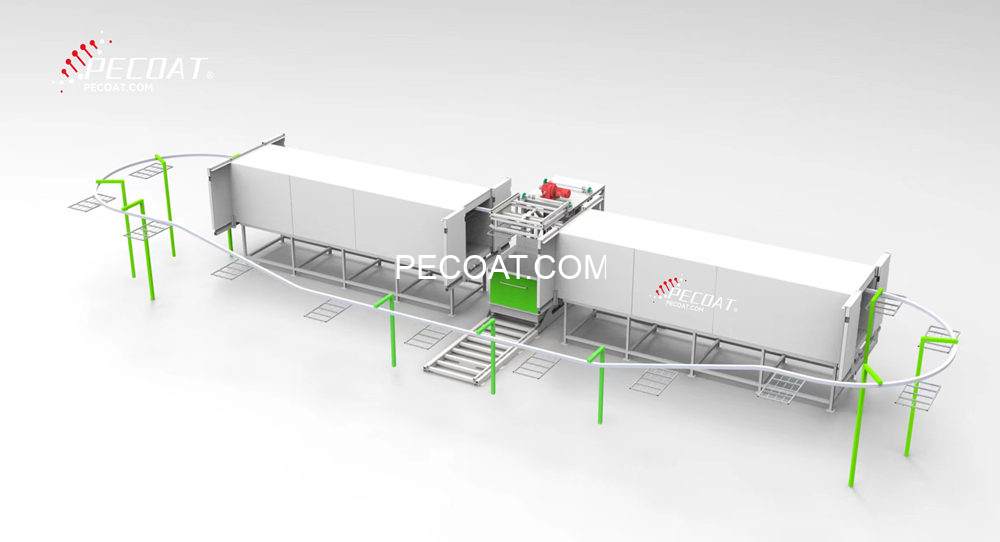

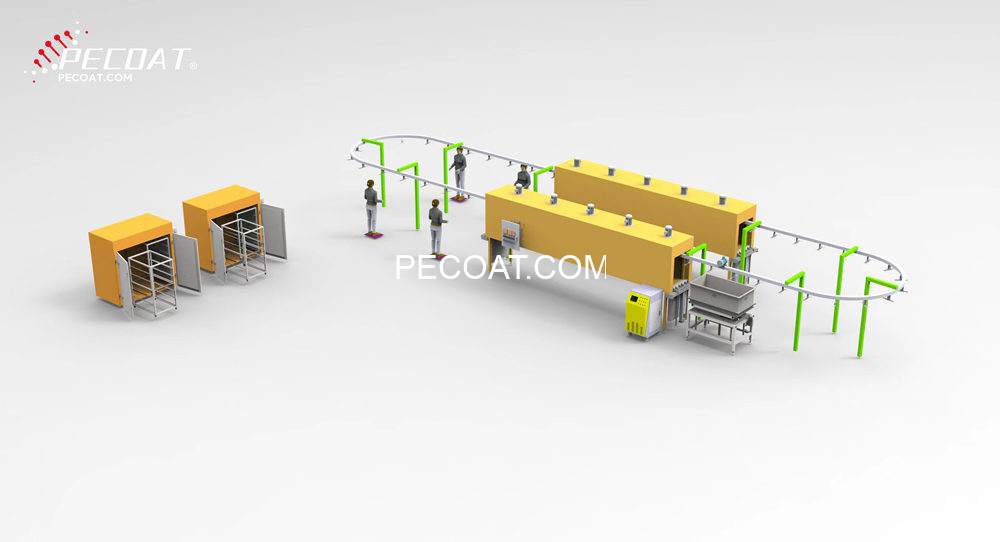

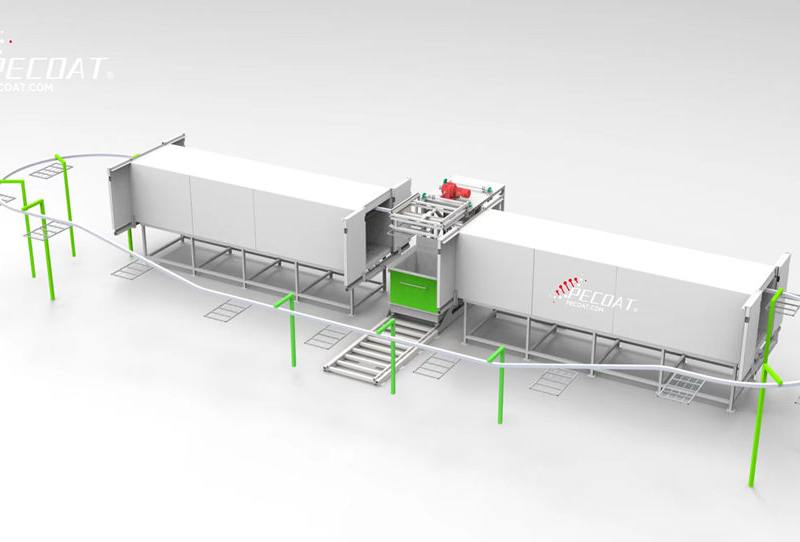

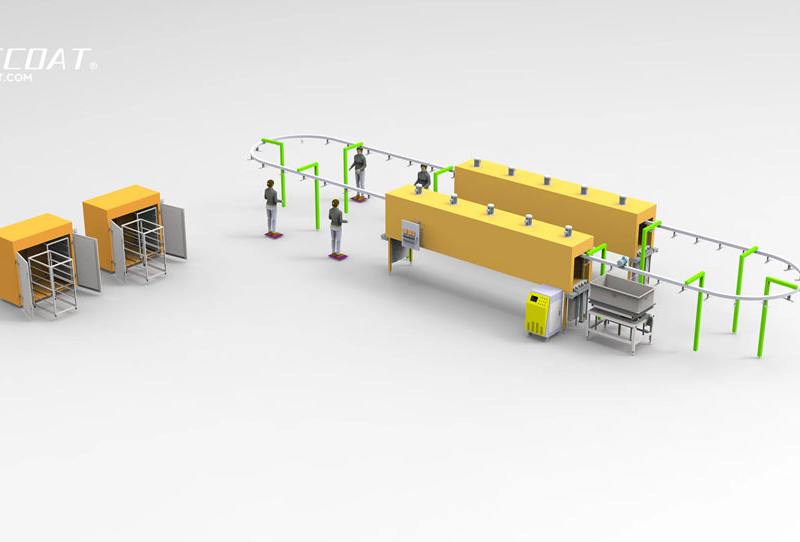

Full Automatic

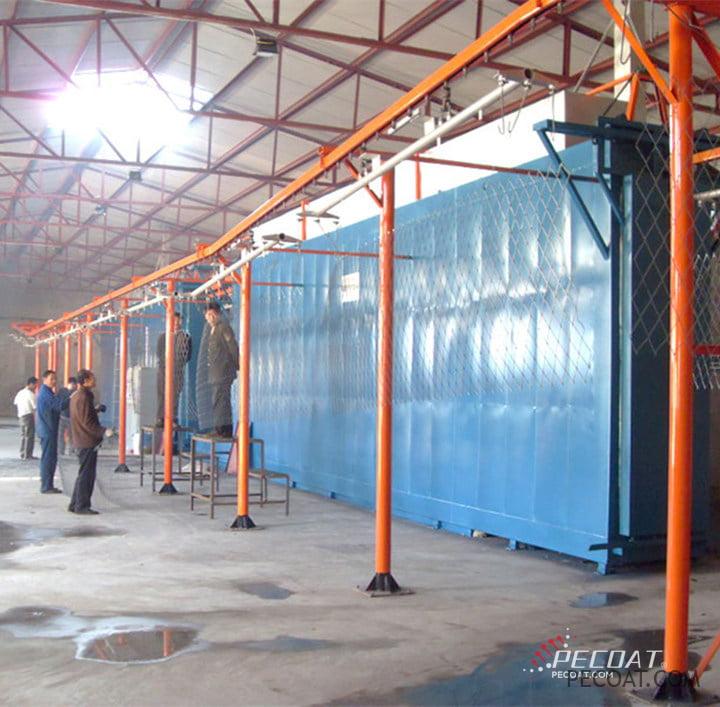

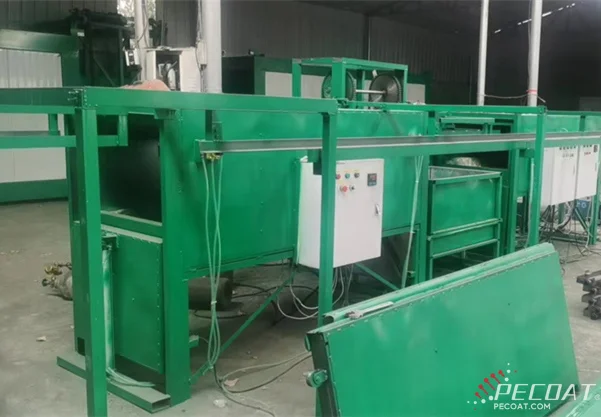

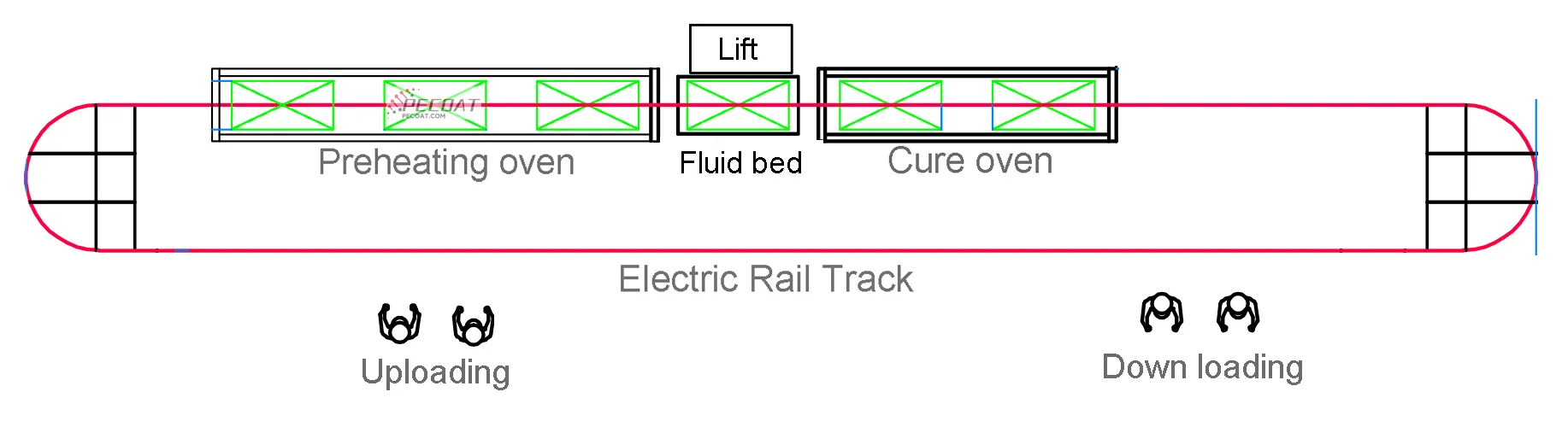

automatic dipping coating equipment -Fluidized Bed Dip Coating Equipmentautomatic Fluidized Bed Dip Coating Equipment

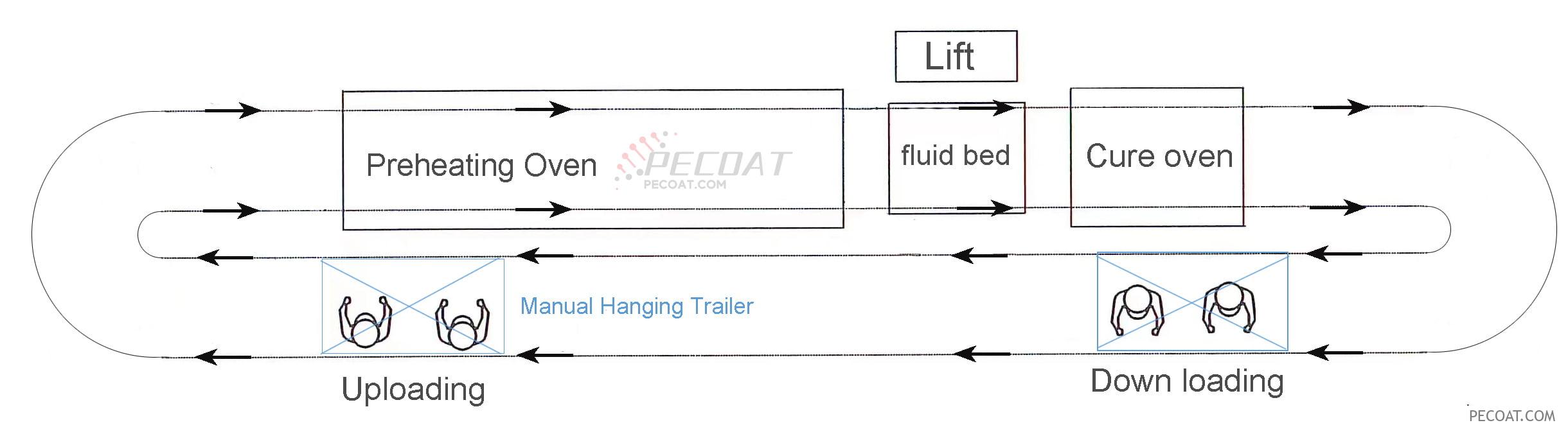

semi-automatic of fluidized bed dip coating equipment

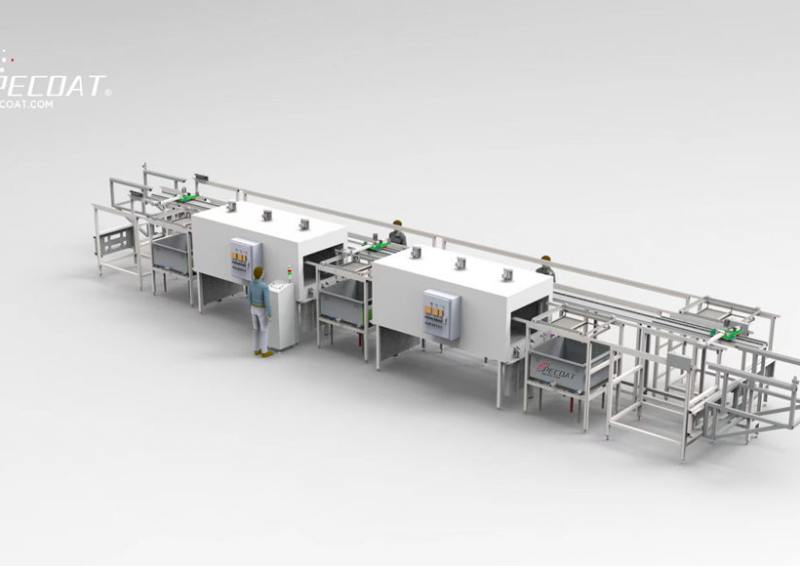

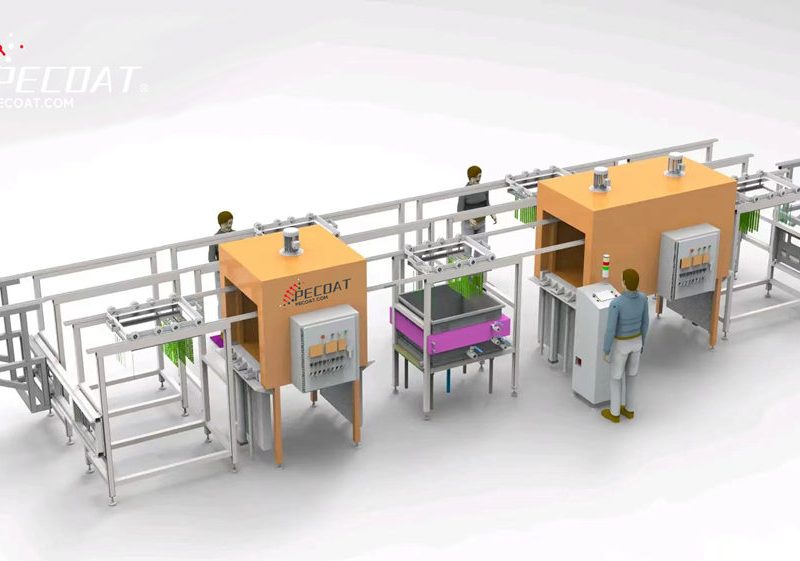

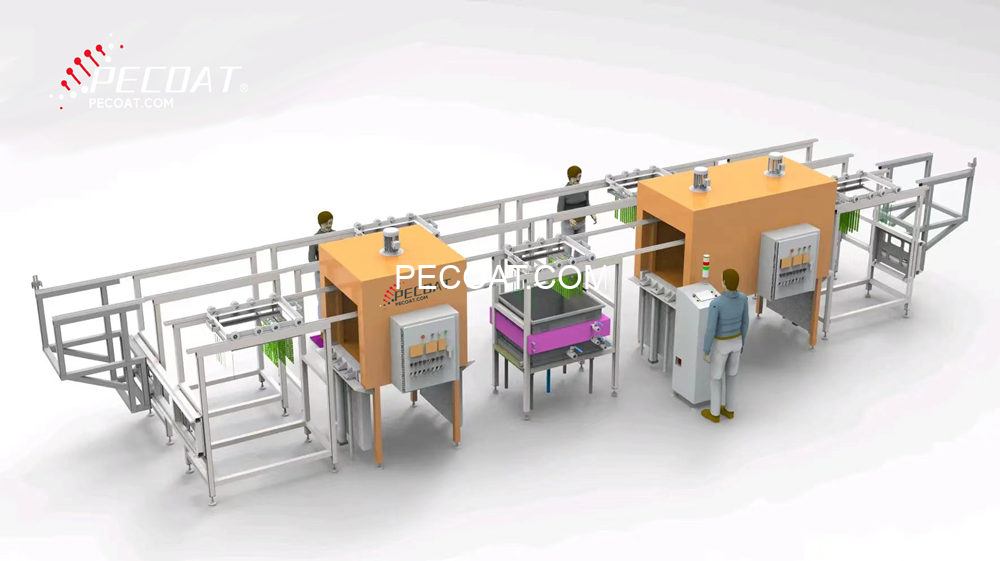

Semi-Automatic

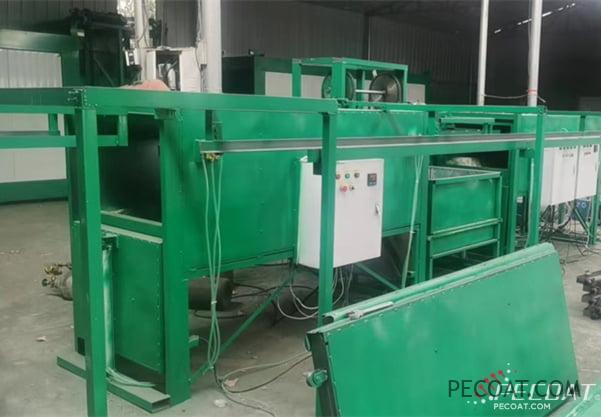

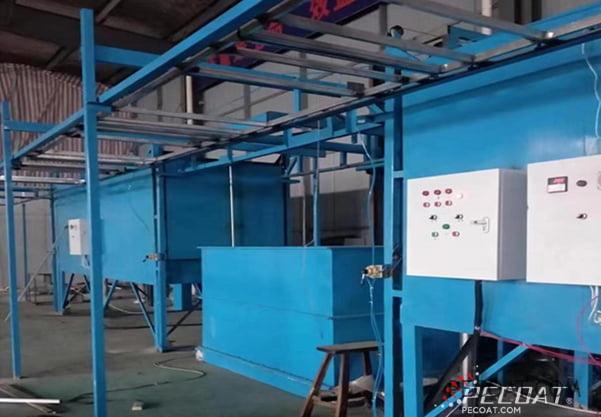

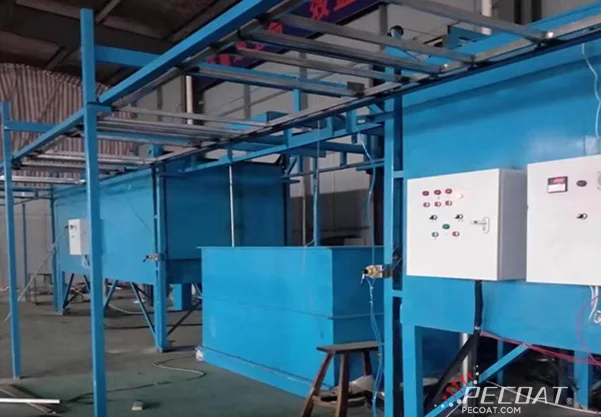

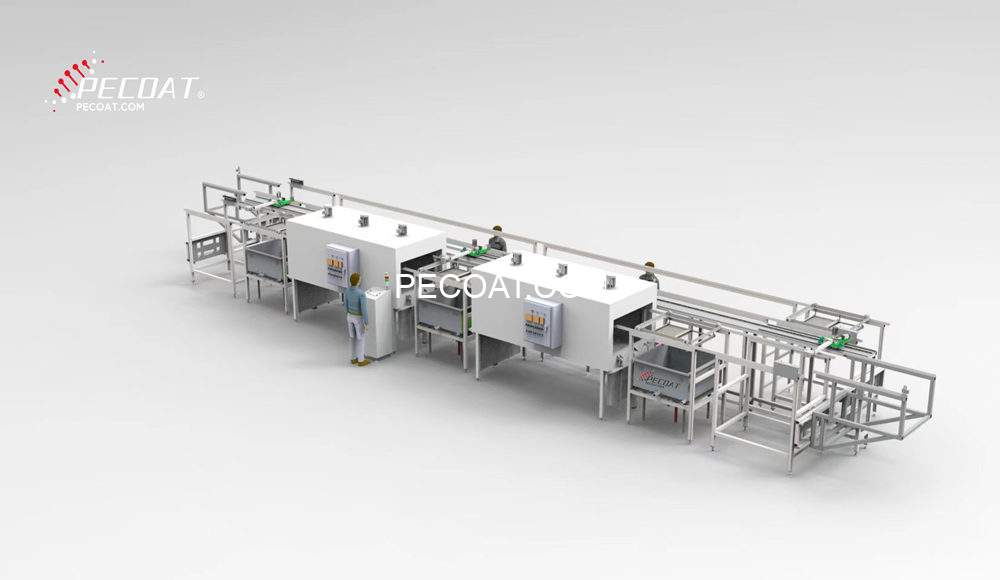

semi-automatic fluidized bed dipping coating equipmentsemi-automatic Fluidized Bed Dip Coating Equipment
Use Process
ProcessTemp. (℃)Time (minutes)
Uploading workpieceRoom Temperature2-10
Pre-heating200-40010
DippingRoom Temperature3-5
Curing180-22020
CoolingRoom Temperature10-15
UnloadingRoom Temperature3-5
Above parameter is only for approx. reference and understanding. The accuarte value should be determined by application.
1. Uploading --- 2. Preheating
1. Uploading --- 2. Preheating
3. Dip Coating --- 4. Curing Coating
5. Download Workpiece --- 6. Start Next Cycle
Project Case

The equipment is customized based on customers’ workpiece parameter. Please feel free to contact us if you want to learn more details about fluidized bed powder coating equipment.

FAQ

To offer accurate prices, the following information is required.
  • What is the max dimension of workpiece which you coat? (L× W× H), please send us a picture of your workpiece.
  • What is your expected output per hour?
  • What is the heat source type that you will use? electricity, gas or diesel? This is usually determined by the cost of gas and electricity in your country
  • What type of coating do you use? PE, PVC, Nylon or any others?
20-30 days after prepayment
  • 30% TT prepay, 70% TT before delivery or against BL copy
  • 30% TT prepay, 70% LC at sight
  1. The installation process is not very complicated. We will provide installation instructions.
  2. We also supply installation and commissioning service on site.
