Automatic Fluidized Bed Dip Powder Coating Line for Fence Posts, Welded Wire Mesh,Gate, Y Arms

Posted by: PECOAT | on July 3, 2021

Table of Contents

1 DESIGN CONCEPT

2 WORKPIECE TO BE COATED

3 DRAWING

4 Customized Specificatons

5 Related Posts:

DESIGN CONCEPT

This fully automatic fluidized bed dip powder coating line is designed specifically for fence posts, welded wire mesh, gates, Y-arms, and small accessories. Aiming at workpieces of different specifications such as 3.4-meter-long fence posts and 2.67m × 1m welded wire mesh, it precisely matches the equipment parameters: the 6000*1000*3000 oven can meet the overall baking needs, and the high temperature of 350°C ensures the curing of PE powder.

WORKPIECE TO BE COATED

Fencing Post	3.4 meter Length, 76 mm Diameter Round Hollow Section and 3.6 mm thick
Wire Mesh	4 mm Diameter Anti-Climb Welded Mesh,2.67 meter X 1 meter.
Fencing Gates	2 meter X 2.7 meter
Small accessories	Y Arms , Small Fence Fixtures

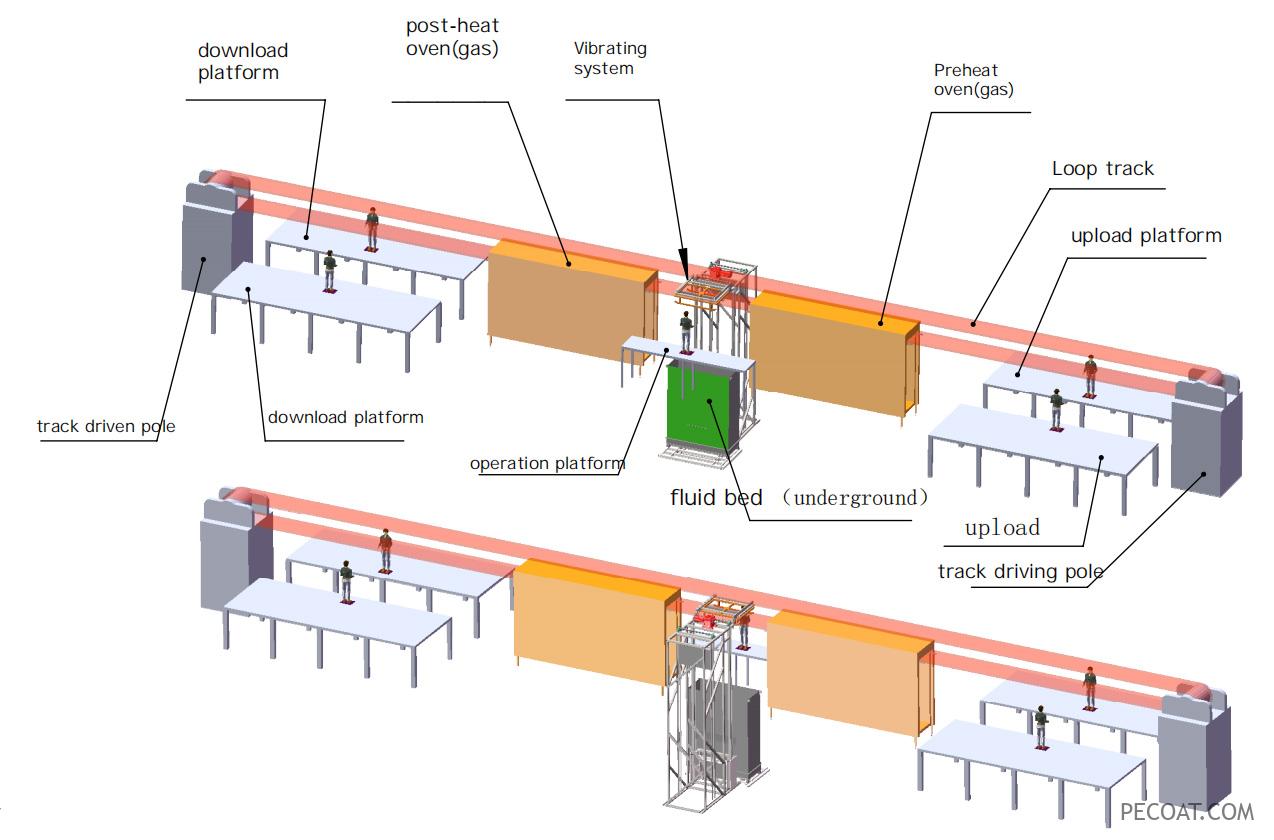

DRAWING

Customized Specificatons

Type	Fully automatic
The maximum temperature of the oven	350°C
Oven size	600010003000
Fluidized bed lifting range	0-3000mm
Hanging track line width	900mm, power 3KW
Fluidized bed system power	10KW
Output Capacity	Post-: 200 posts per day,and if we do panels any day Wire Mesh-: 200 panels per day. Every day we will to either if the two Fencing Gates is very less-: 10 gates in a month
Total power	16KW
