Semi-automatic Dip Powder Coating Line for Metal Wire Rack Shelf Basket

Posted by: PECOAT | on June 30, 2023

Table of Contents

1 DESIGN CONCEPT

2 DESIGN BASIS

3 WORKPIECE TO BE COATED

4 SPECIFICATIONS

5 Related Posts:

DESIGN CONCEPT

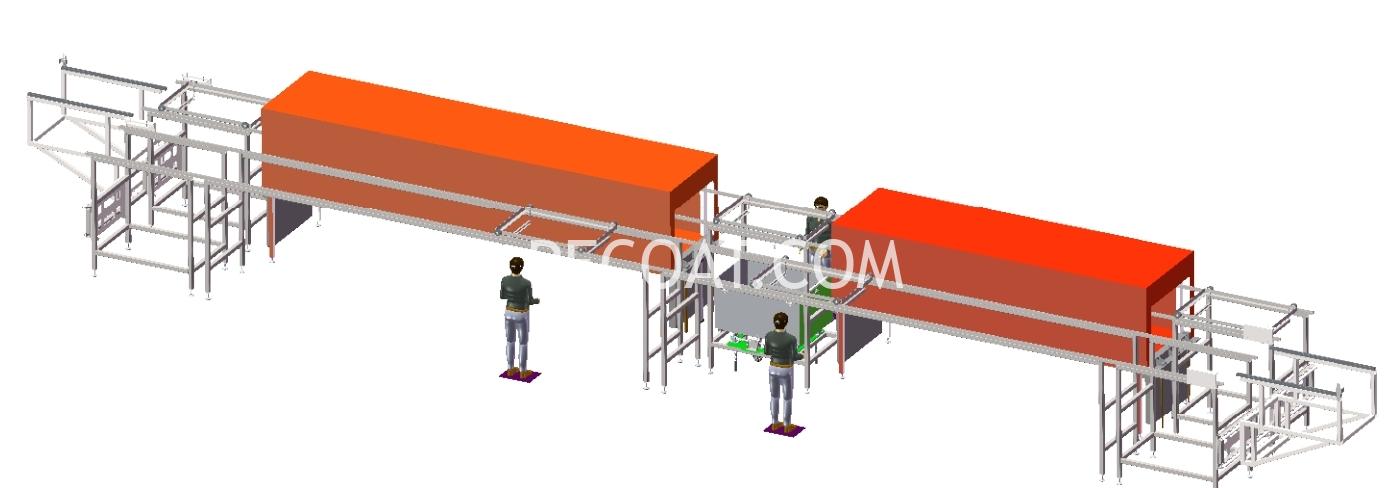

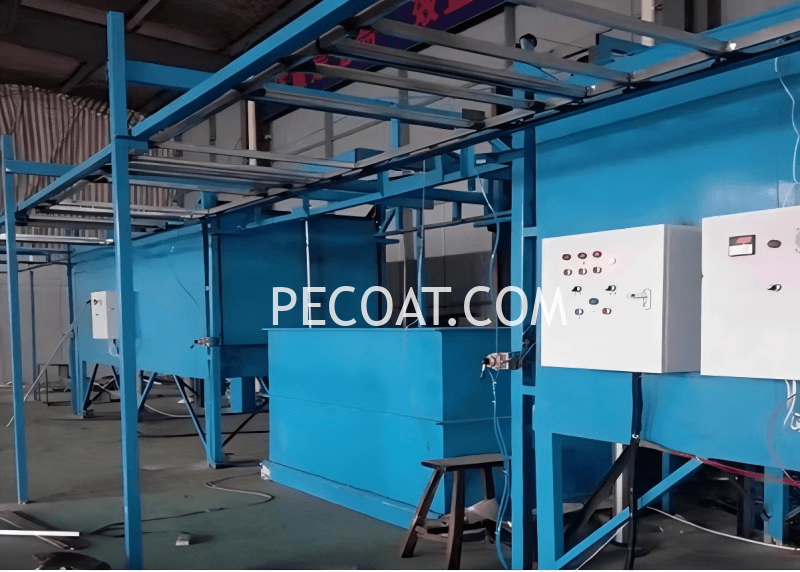

This semi-automatic dip powder coating line is specially designed for metal wire racks, shelves and baskets, with adapting to the characteristics of wire workpieces as the core. For wire baskets with a maximum size of 1000*500*500mm, the hanging tray with an effective size of 1200*800mm ensures stable loading. The 1200*950*700mm fluidized bed, combined with a lifting range of 0-700mm, can accurately achieve uniform coating of PE powder.

It adopts electric heating, with the oven’s maximum temperature being 350°C. The inner layer is made of 304 stainless steel for corrosion resistance, and the outer layer is carbon steel to strengthen the structure, ensuring the curing quality of PE powder. The 33KW preheating furnace and 50KW post-heating furnace work together to control temperature, adapting to the thermal conductivity characteristics of wire materials.

DESIGN BASIS

Maximum workpiece size	1000500500mm
Heating source	electricity
Operation mode	Semi-automatic
Production Output	30pcs/hour

WORKPIECE TO BE COATED

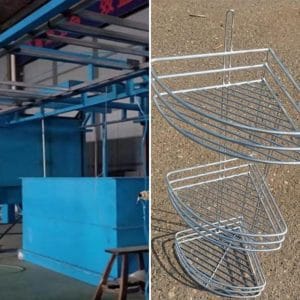

Workpiece Shape (important)	wire shelf basket
Coat Required	PE powder coating

SPECIFICATIONS

Hanging Tray	effective size 1200*800mm
The maximum temperature of the oven	350 ° C, the inner material is 304, and the outer carbon steel.
Fluidized bed lifting range	0-700mm
Fluidized bed powder tank size	1200950700
Accessories include	one electric control cabinet, eight trailers

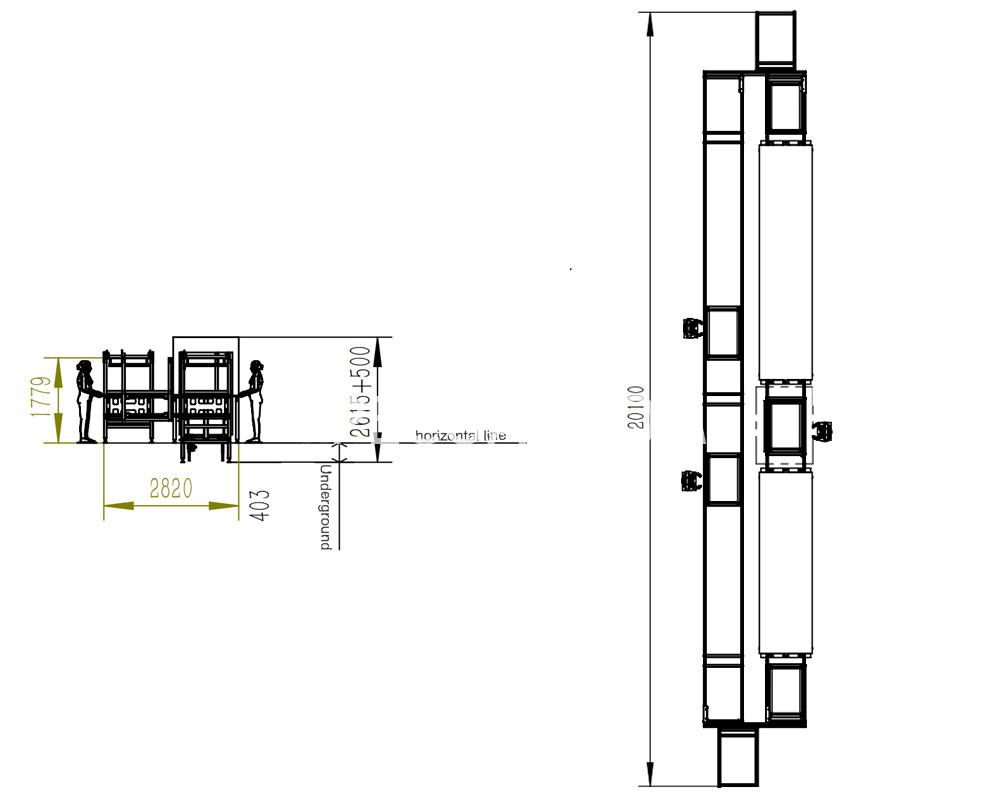

The overall size of the equipment	total length: about 20 meters, total width: about 2.8 meters
The guide rail	1.78 meters from the ground
Preheating oven power	33KW
Output	80-100 pieces/hour
