Semi-automatic Fluidized Bed Dip Coating Equipment for Welded metal frame
![Fluidized Bed Dip Coating Equipment](https://www.thermoplasticcoating.com/wp-content/uploads/2023/06/Semi-automatic-Fluidized-Bed-Dip-Coating-Equipment-Project-Case-for-Welded-metal-frame557-300x300.png?v=1686904589)
Project Case
Semi-automatic fluidized bed dip coating equipment for welded metal frame
Basis of Design
- Maximum workpiece size: 2m length×0.3m width ×1.5m height
- Max weight of workpiece: 60kg
- Heating source: Natural gas
- Operation mode: Semi-automatic
- Production Output: 20pcs/hour
Workpiece To Be Coated
- Workpiece Shape (important): Welded steel metal hollow frame
- Coat Required: PE powder coating
![workpiece to be coated](https://www.thermoplasticcoating.com/wp-content/uploads/2023/06/workpiece-to-be-coated.jpg)

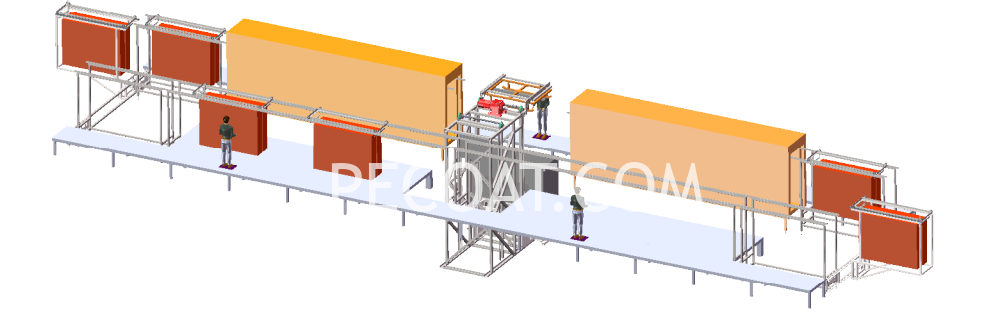

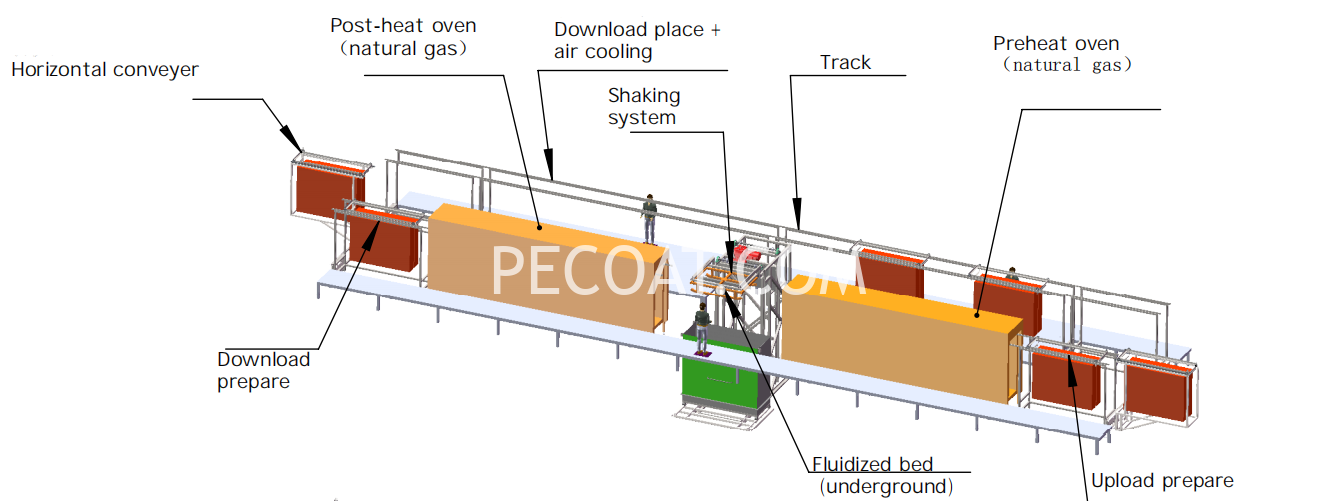

Project Drawing
- Effective size of trailer: 2500*650mm
- Other componentssize: The size of other components are adjusted according to the size of the trailer.
- Operation mode: The trailer is pushed by hand
- Maximum oven temperature: 350°C
- Fluidized bed : Electric drive, lifting range 0-2000mm,
- Powder tank size: 2500*1000*2000mm
- Accessories include: One electric control cabinet,
- Quantity of Hanging Trailers: 8
- Total size of line: About 31meter length, 7meter width
