Description

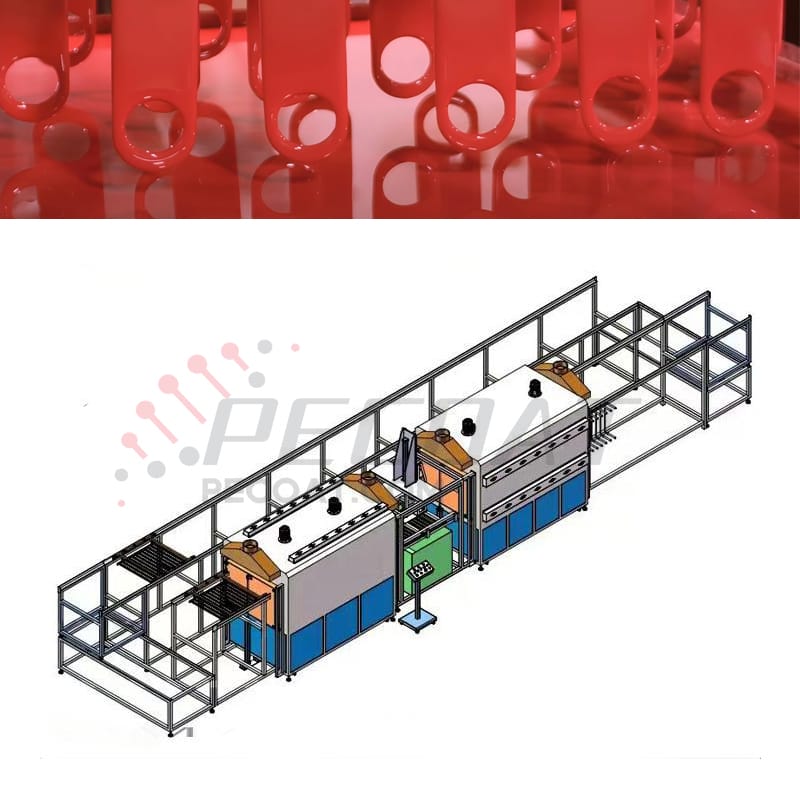

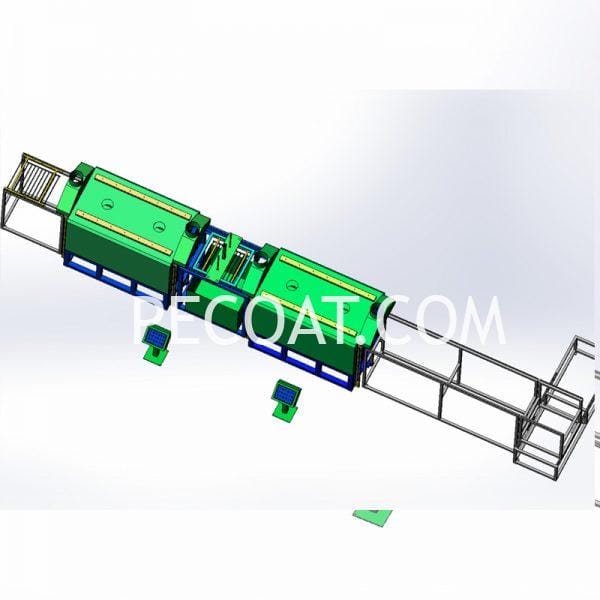

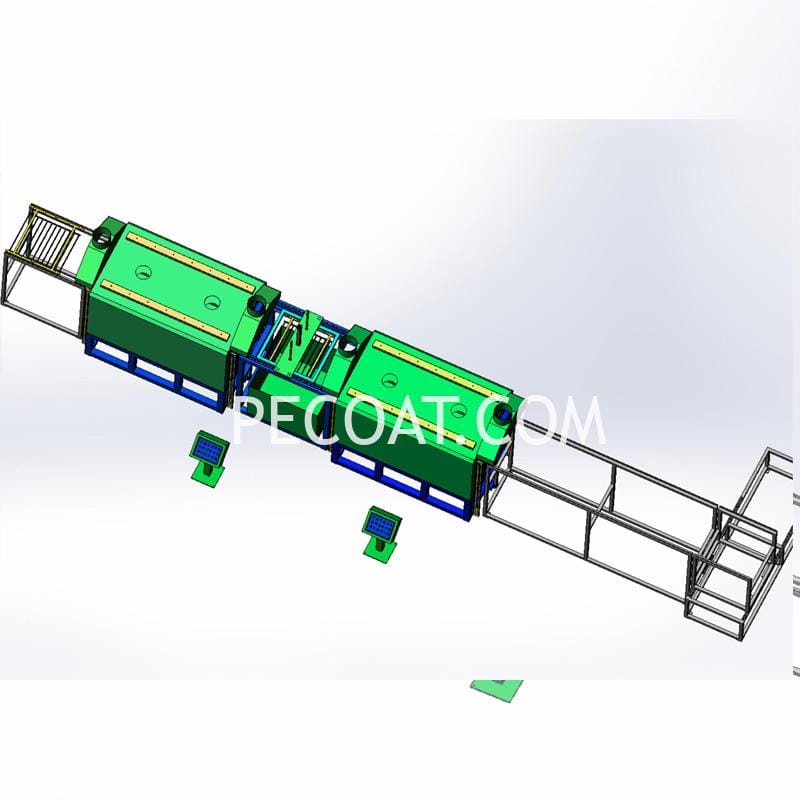

PECOAT® pvc plastisol dip coating equipment is mainly consist of preheat oven, post-heat oven, material tank, dipping system and chain tracks. It is specially designed for the dip coating process of pvc plastisol.
General Running Process
- Preheat the workpiece: Place the workpiece into the preheat ovenand keep several minutes to ensure uniform heating of the workpiece surface.

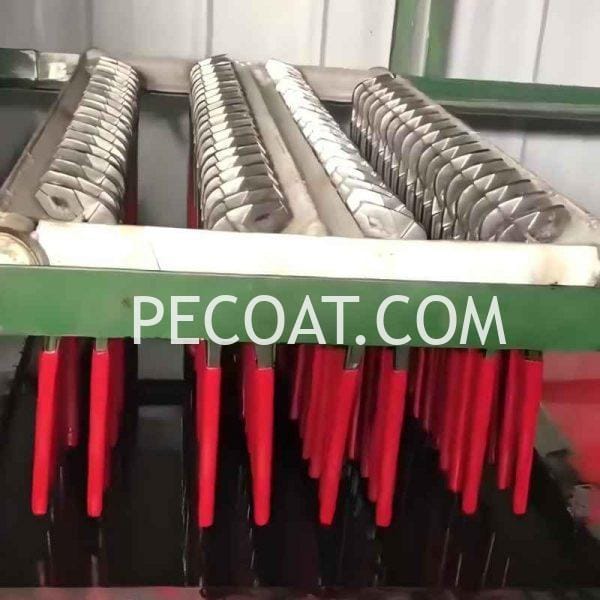

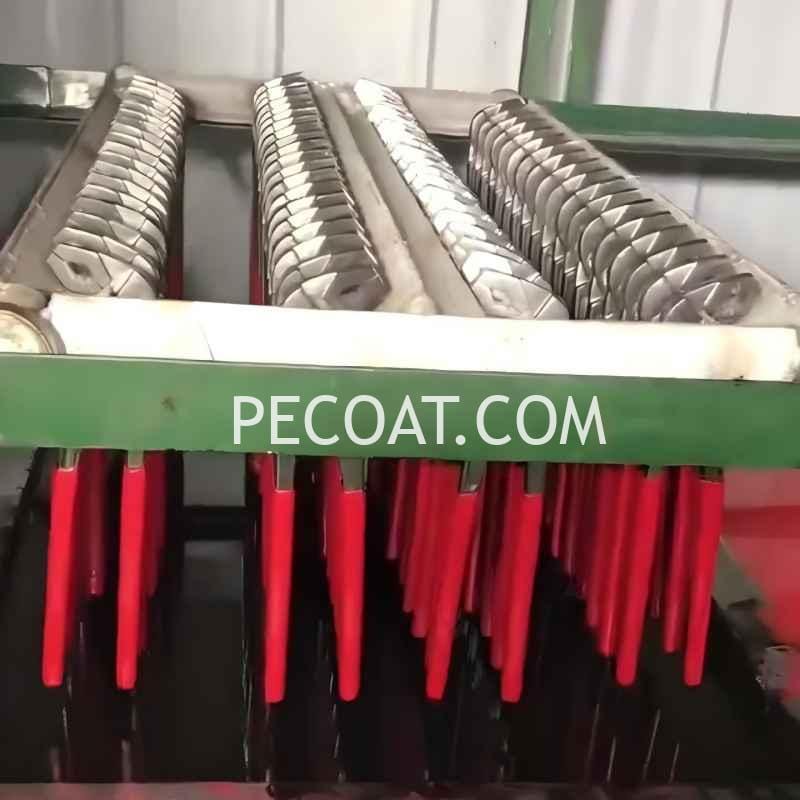

- Immerse in sol: Immerse the preheated workpiece into the plastisol tank through mechanical equipment or manual operation, and control the time (e.g., 2-6seconds) to form a uniform coating.
- Post-heat for curing: Transfer the workpiece coated with sol to the post-heat oven for curing, heat it at a set temperature (e.g., 200℃) for a specific duration (e.g., 2-5 minutes) to form a coating.
Key Differences Between Manual and Automatic
| Types | Operation mode |
|---|---|
| Manual | The ovens and material tanks are physically separated, and the transfer of workpieces is carried out via manual operation. |

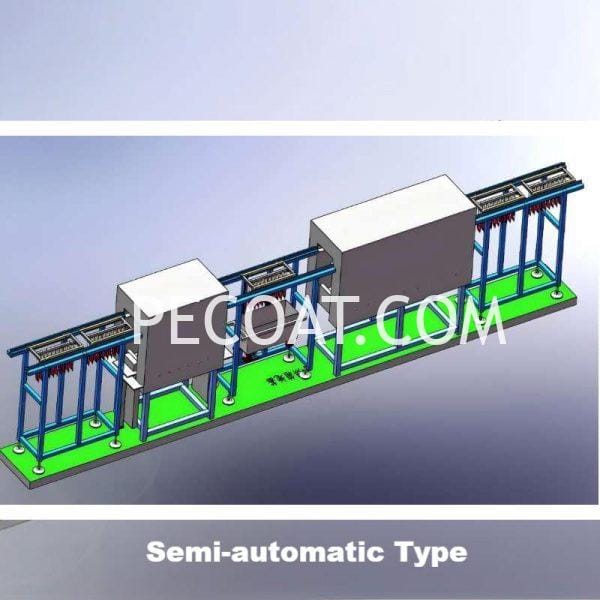

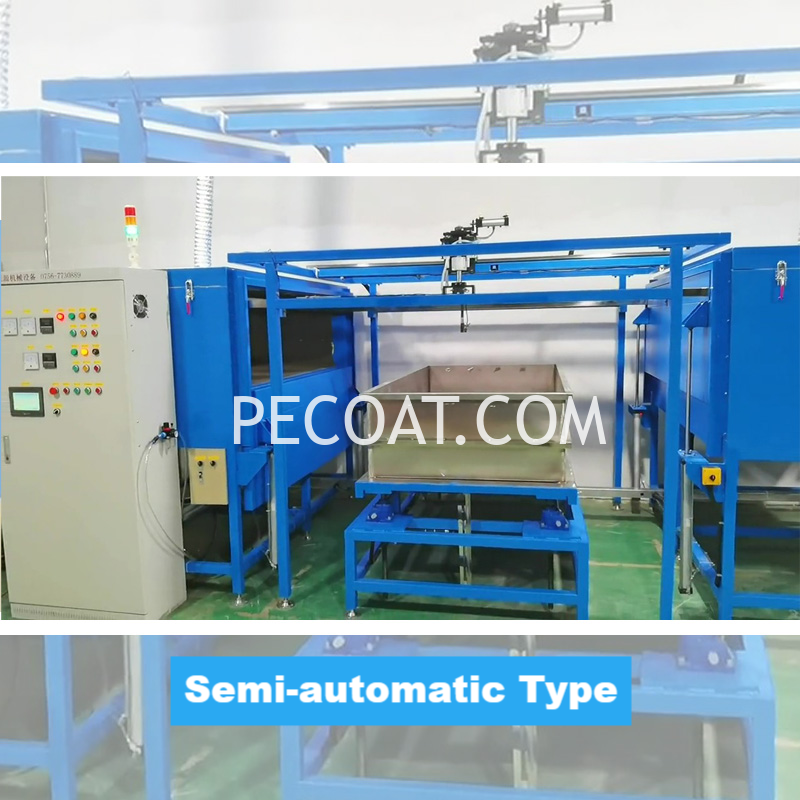

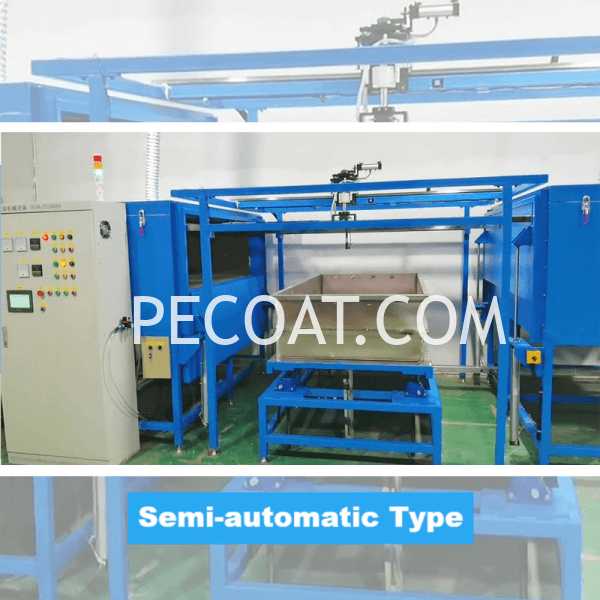

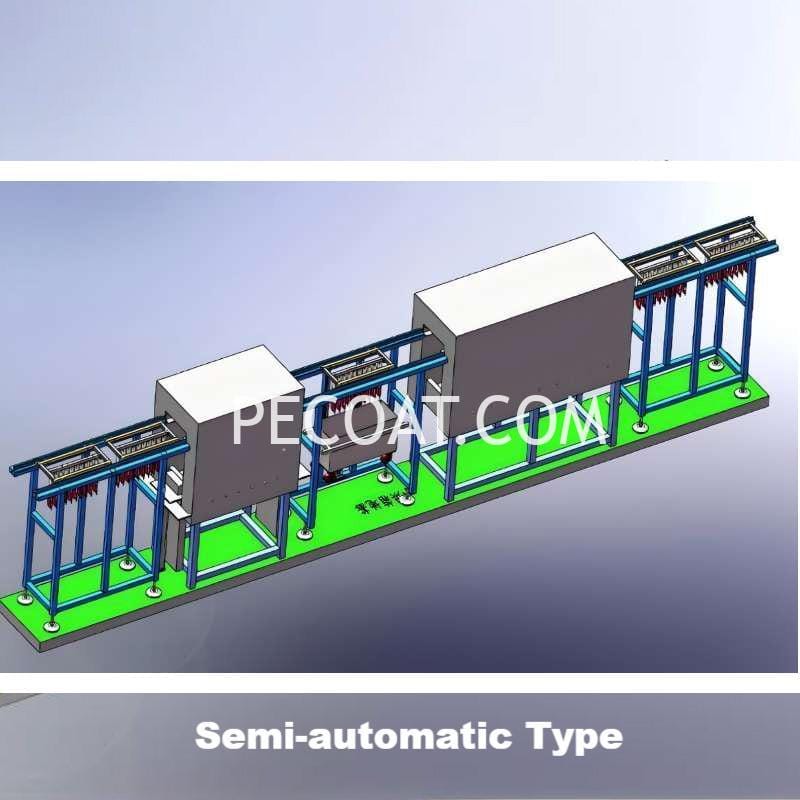

| Semi-automatic | The ovens and material tanks are connected through chain track, the movement of workpieces along the tracks is manually propelled. |

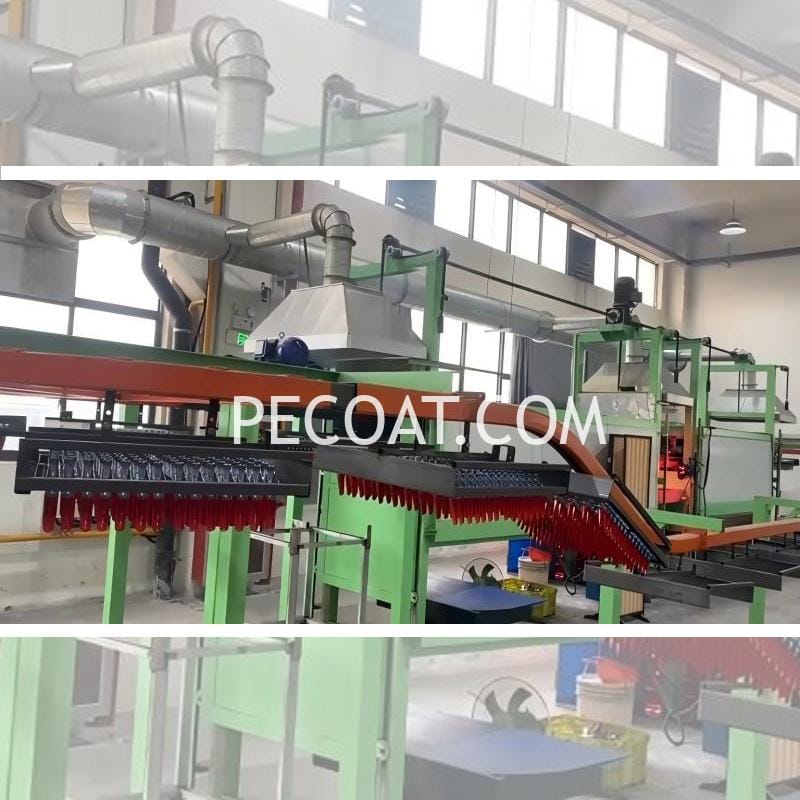

| Full automatic | The ovens and material tanks are connected through chain tracks, workpiece movement on the tracks is power-driven. |
Specifications
| Type | Semi-automatic |
|---|---|
| Heating source | Electricity |
| Use | Dip coating for metal product |
| Coating material | PVC plastisol |
| Packing type | Wooden case |
| Lead time | 20-25days after prepayment |
| Equipment dimensions | As designed |
| Insulation method of oven | Mineral wool layer |
| Material Tank Number | 1-2, based on requirement |
| Material of oven | Stainless steel |
| Output capacity | As designed |
| Accessories | 3-5pcs heating tube |
| Voltage | According the customer’s country |
| Door drive | Air-drived |
| Heating method | Heating tube |
| Material of heating tube | Stainless steel |
| Items to be prepared by the buyer | 1. PVC plastisol (PECOAT® optional) |
| 2. 5.5kw screw compressor (recommended) | |
| 3. 1 cubic gas storage tank (suggested) |
Project Videos
1
/
3

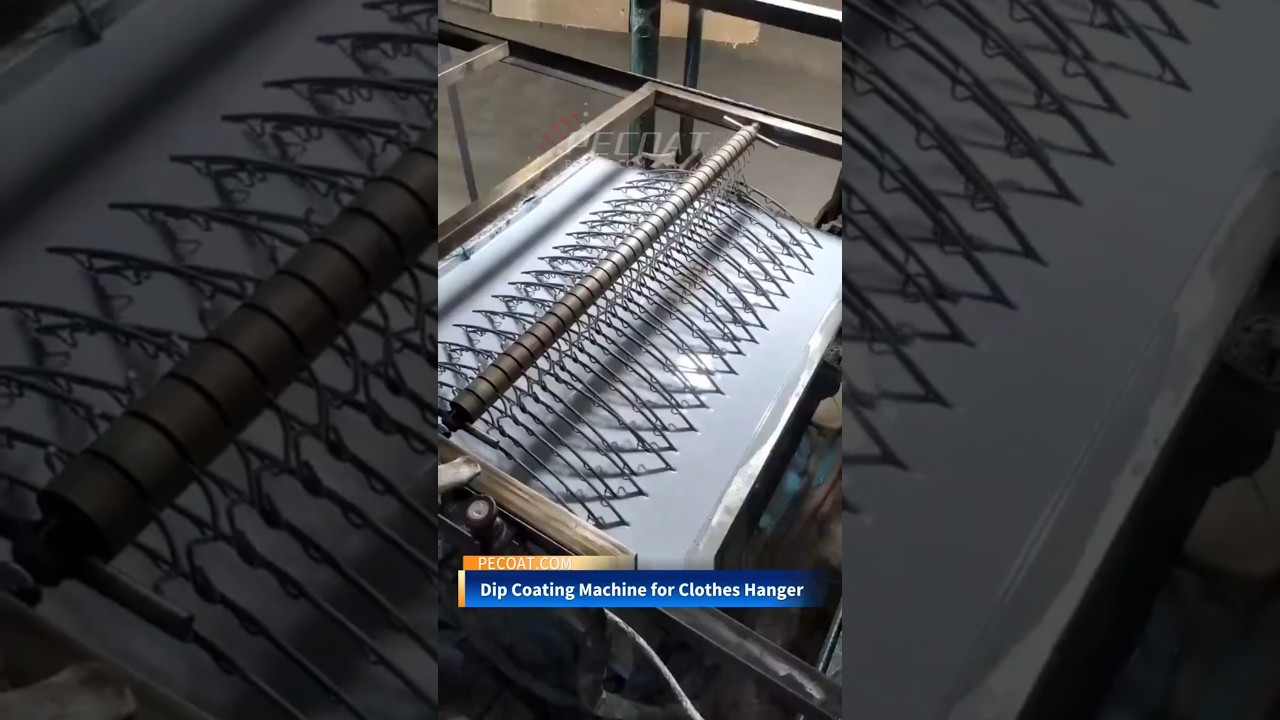

Semi-automatic PVC dip coating machine for clothes hangers, with flipping function
