Description

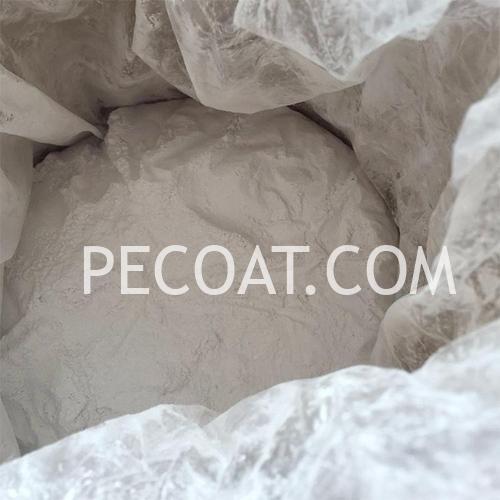

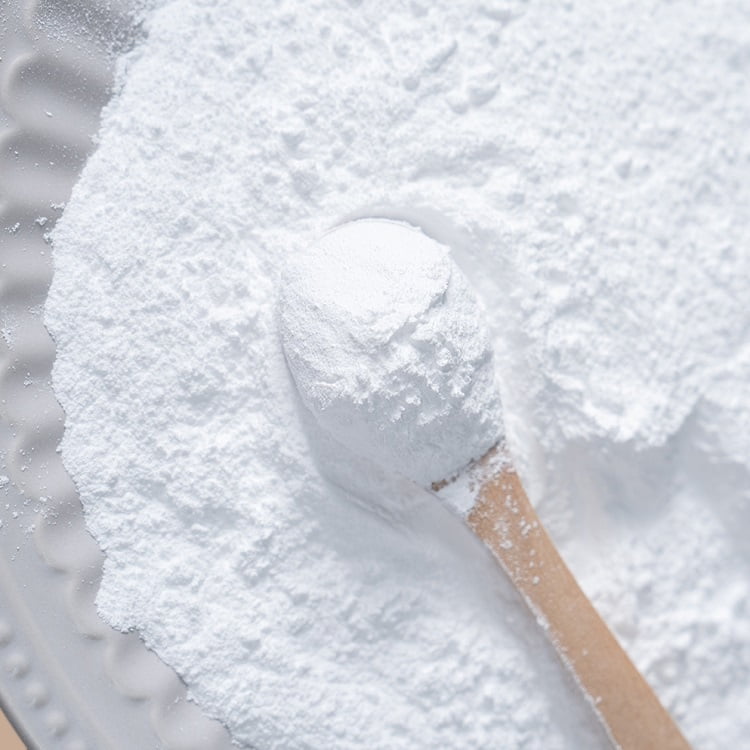

Polytetrafluoroethylene (PTFE) Suspension Molding Powder is a high-performance fluoropolymer material independently developed and produced, boasting outstanding physical and chemical properties and diverse application scenarios. It is a premium raw material widely used in industrial manufacturing, electrical and electronic fields, and sealing component production.
Physical and Chemical Properties
| Property Item | Specification/Characteristic |
| Appearance | Waxy white powder |
| Average particle size | 20-40μm |
| Melting point | 327±5℃ |
| Standard specific gravity | 2.130~2.190 |
| Usable temperature range | -100℃ to 260℃ |
| Core performance | Excellent heat resistance, electrical insulation and chemical permeability resistance |
Product Grades and Applications
We offer three tailored grades of PTFE Suspension Molding Powder to meet different application needs, each with unique performance advantages:
- PECO0-564: Featuring high cleanliness and purity, this grade is suitable for manufacturing oriented films or filled turning films. It is mainly applied in the production of electrical insulation films, capacitor films and other products with high reliability requirements, and is the first choice for high-precision electrical and electronic components.

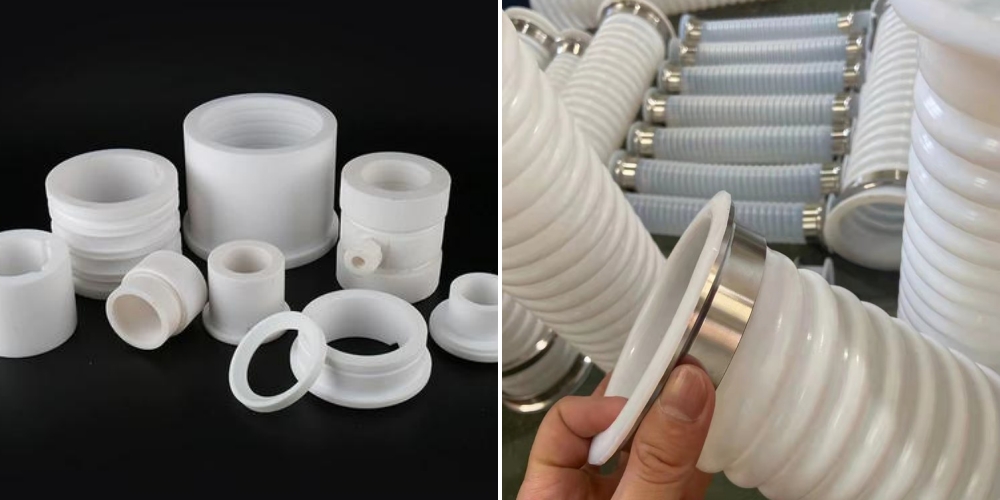

- PECO0-568: With uniform particle size, it is excellent for processing large filled products. It is widely used to make high-end products such as tubes, rods, plates and sealing materials, and can meet the strict performance standards of high-demand industrial manufacturing.
- PECO0-567: As a general-purpose grade, it is mainly used in the production of tubes, rods, plates and sealing materials for ordinary applications, providing cost-effective and reliable material solutions for conventional industrial production.
Technical Parameters
| Property | PECO0-564 | PECO0-568 | PECO0-567 |
| Appearance | White powder, no impurities | White powder, no impurities | White powder, no impurities |
| Tensile Strength (MPa) ≥ | 37.5 | 35.0 | 32.0 |
| Elongation at Break (%) ≥ | 320 | 320 | 300 |
| Bulk density (g/L) | 300~550 | 300~550 | 300~550 |
| Average particle size (μm) | 30±5 | 30±10 | 30±10 |
| Water content (%) ≤ | 0.02 | 0.03 | 0.03 |
| Melting peak temperature (℃) | 327±5 | 327±5 | 327±5 |
| Standard specific gravity | 2.130~2.190 | 2.130~2.190 | 2.130~2.190 |
| Thermal instability index ≤ | 30 | 30 | 30 |
Packaging Specification
25KG/Drum, 4 Drum/Pallet
