Full-Automatic PVC Dip Mold Machine for Small Caps Sleeves And Large Caps Boots
Table of Contents
DESIGN CONCEPT

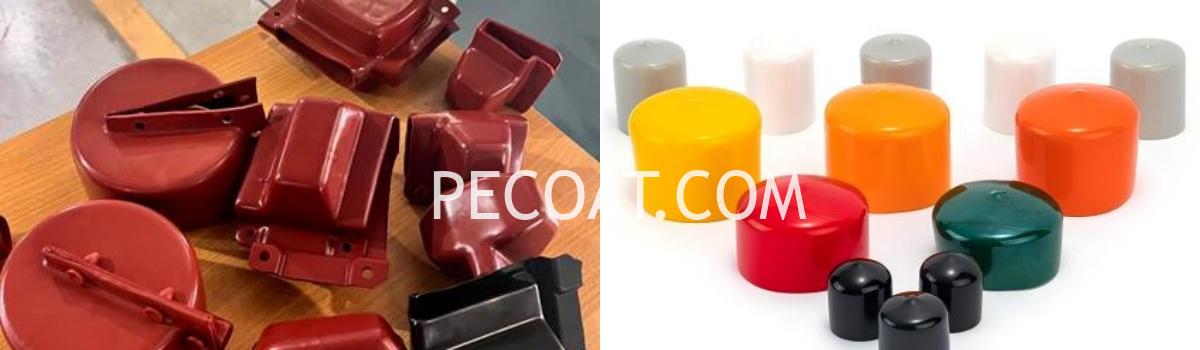

The design concept of this equipment centers on meeting customers’ diverse production needs, while taking into account the processing of products of both small and large specifications as well as automated and efficient production. On one hand, it is specifically adapted to the production of small PVC caps, sleeves, and large PVC shrouds and boots. Through the customization of 4 sets of hanging carts that match the drawings of shrouds/boots provided by the buyer, as well as a material tank with specifications of 860mm*680mm*350mm, the adaptability for products of different sizes is ensured.
DESIGN BASIS
| Use | Produce small size pvc caps and sleeves, and large size PVC caps and boots |
| Type | Fully automatic |
| Output capacity | approx 200-500pcs/dip for small size cap sleeves, approx 8-10pcs/dip for caps and boots |
| Voltage | 380V 50HZ |
SPECIFICATIONS

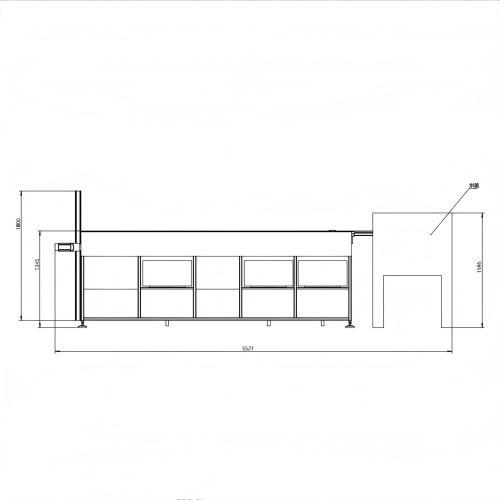

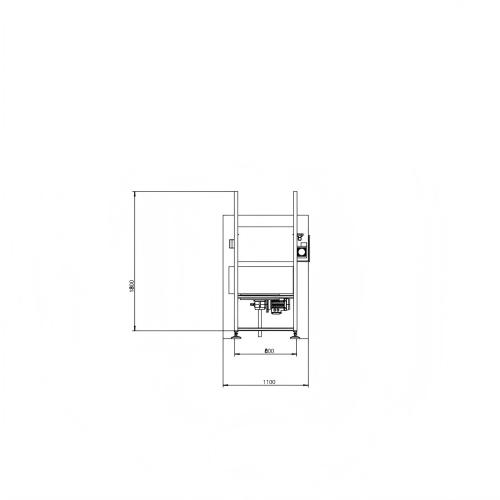

| Machine size | Length 7200mm, width 1000 mm, Max height 2200 mm |
| Output capacity | 200-500pcs/dip for small size cap sleeves, approx 8-10pcs/dip for caps and boots |
| Control system | PLC |
| Hanging cart | 4 sets |
| Material tank size | 860mm*680mm*250mm |

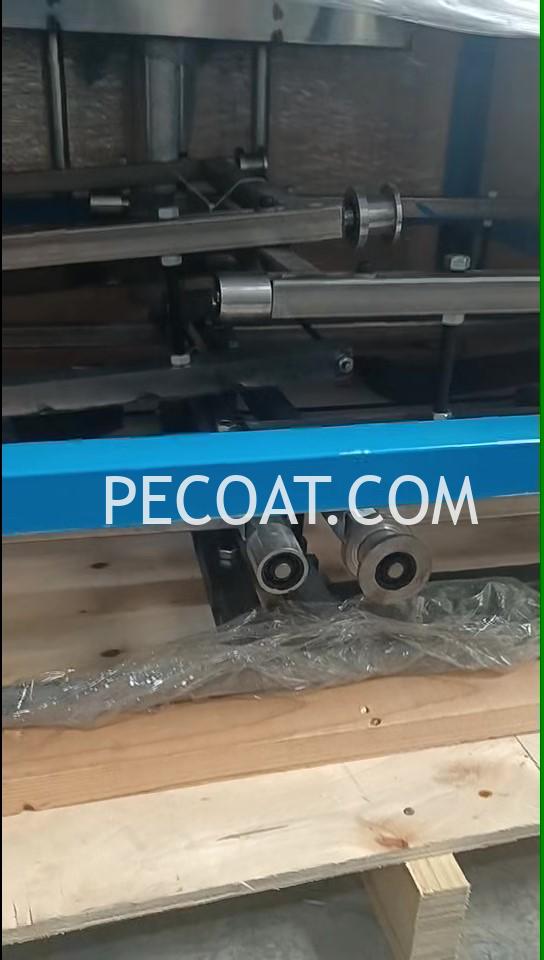

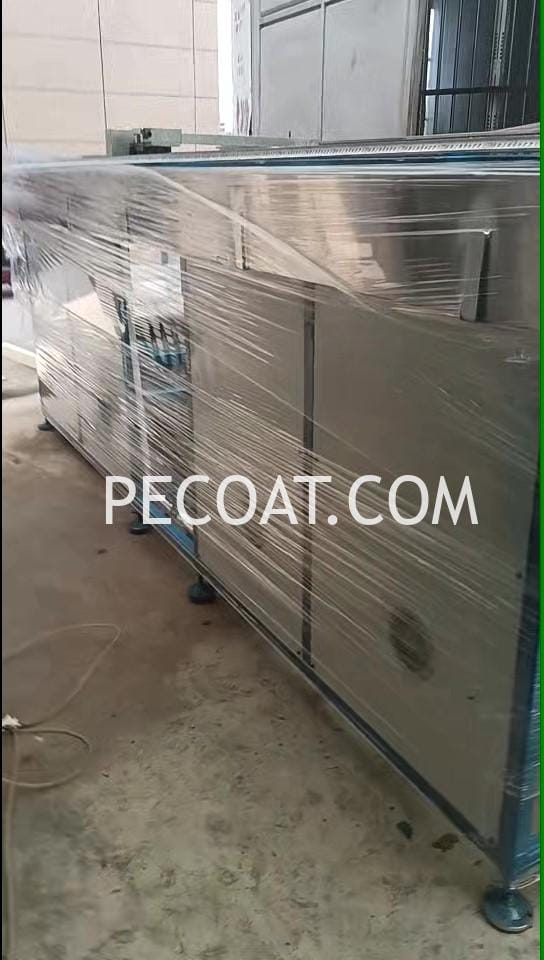

EQUIPMENT DELIVERY
