Semi-Automatic Dip Coating Machine to Produce PVC Plastisol Coatings for Handles
Table of Contents

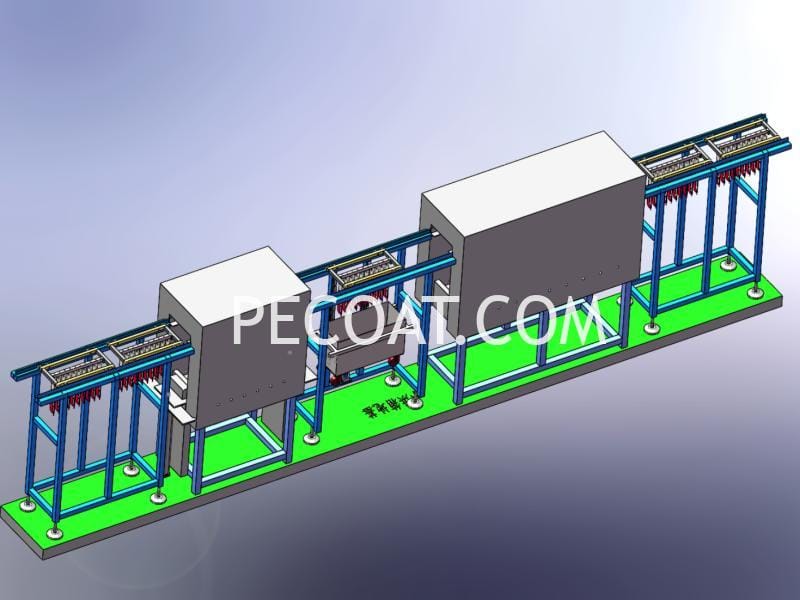

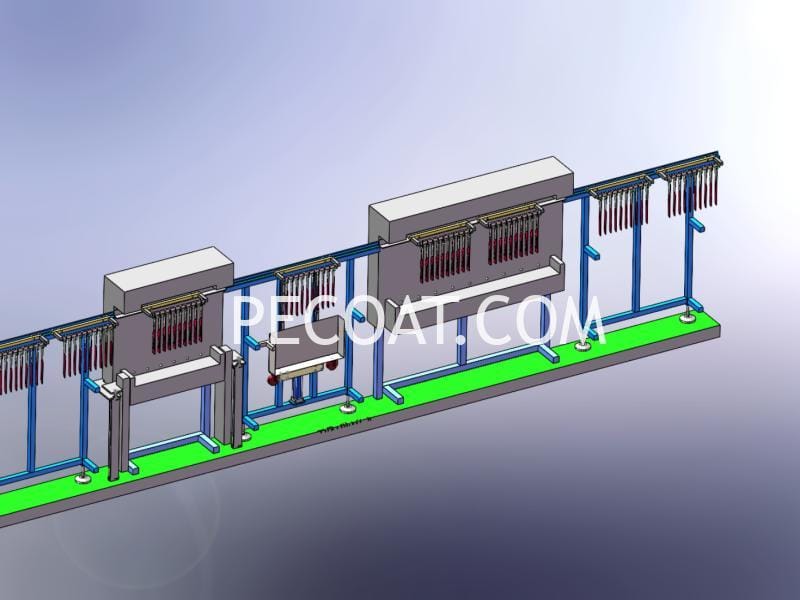

DESIGN CONCEPT
We have specially designed a semi-automatic equipment that meets the customer’s production volume requirements. It can be suitable for the workpieces of 327.5mm × 87mm or similar sizes. The total power of the equipment is 22KW, the voltage can be adapted according to the customer’s country, and the door drive mode is pneumatic. The overall design meets the requirements of high efficiency and stability for the semi-automatic production of handle PVC coatings.
DESIGN BASIS
| Use: | Produce PVC coatings for handles |
| Type | Semi-automatic |
| Coating material | PVC plastisol |
| Workpiece Size | 327.5mm * 87mm |
SPECIFICATION
| Equipment dimensions | L: 6.5M, W: 0.6M, H: 1.3M |
| Ovens | 2 |
| Lift system | 1 |
| Stainless material tank | 1 |
| Hanging tray size | 420mm X 150mm |
| Number of hanging trays | 4 |
| Accessories | 3-5pcs heating tube |
| Total power | 22KW |
| Door drive | Air-drived |

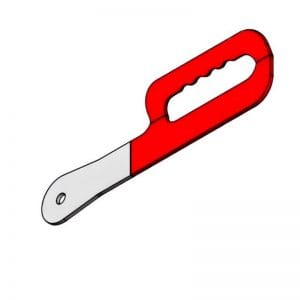

FINAL PRODUCT
