Full Automatic Dip Mould Machine for Production of Pipes End Cover Caps
Design Concept
Our full-automatic dip mould machine is specially made for pipe end dust cover caps, with a design focused on precision, efficiency, practicality, and energy savings to meet the needs of pipe protection product manufacturing.
Built for 88.9mm diameter caps, all parts—including the 0.86m×0.98m×0.2m material tank and 0.5m×0.9m hanging cart—are adjusted to ensure even coating and consistent size. This cuts out manual mistakes and keeps production stable, while the built-in 1.3m×1.3m×1.3m oven provides steady heating.
The machine produces 200 units per hour through full-automatic heating, dipping, drying, and demoulding—replacing heavy manual work. This increases output, reduces human error, and minimizes material waste and inconsistent results.

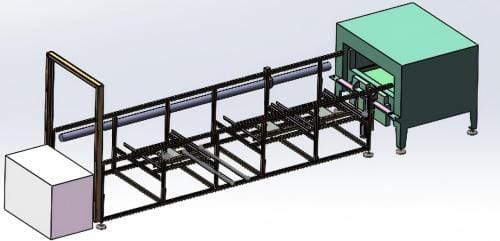

Measuring 7m (L) × 1.4m (W) × 2.2m (H), it offers full functionality in a compact size, fitting easily into standard workshops. The 22kw electric heating is chosen for stable heat, and lower running costs than traditional fuel heating, meeting modern environmental and economic needs.
Specification
- Caps Diameter: 88.9mm
- Oven dimensions: 1.3M x 1.3M x 1.3M
- Material tank dimensions: 0.86M x 0.98M x 0.2M
- Hanging cart dimensions: 0.5M x 0.9M
- Overall equipment dimensions: Length 7M, Width 1.4M, Height 2.2M
- Heating source: Electric
- Power: 22kw
- Output Efficiency: 200 units per hour
