Description

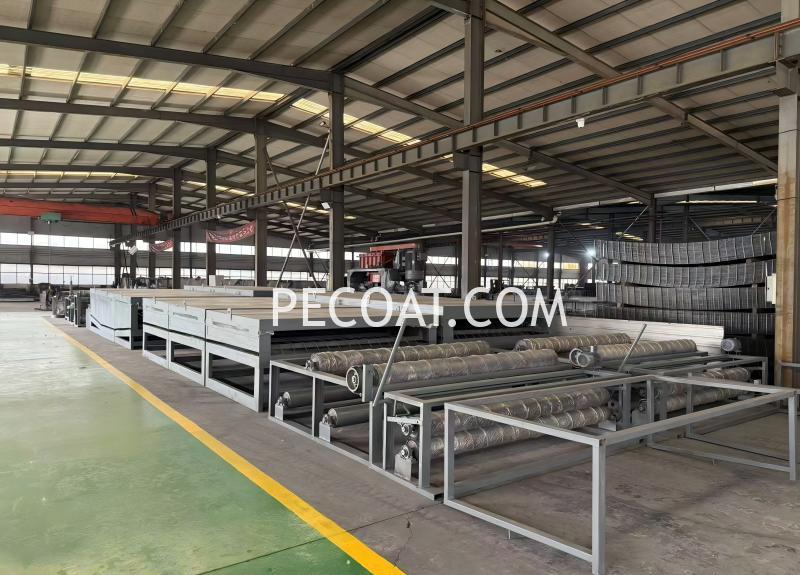

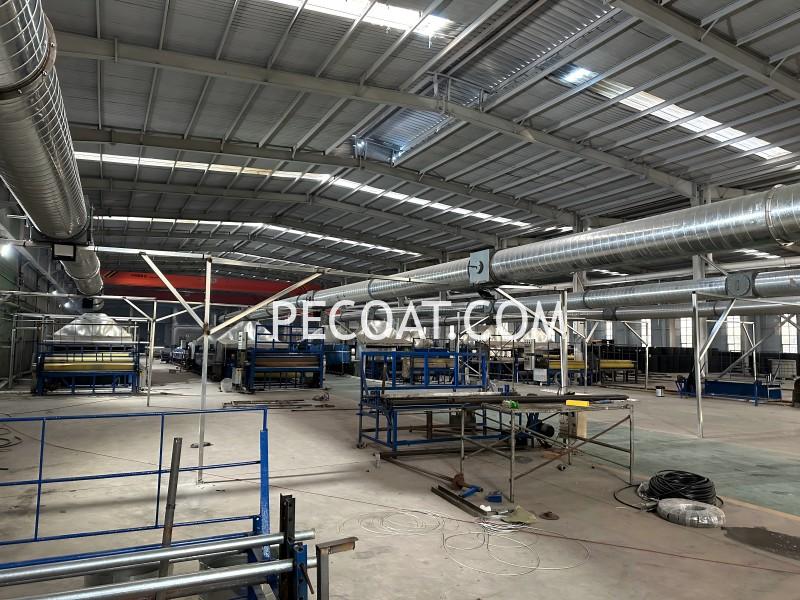

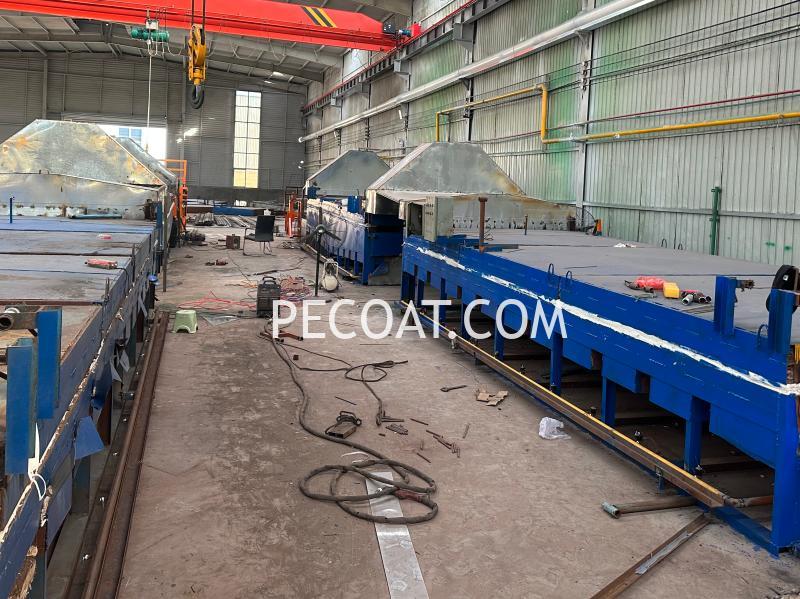

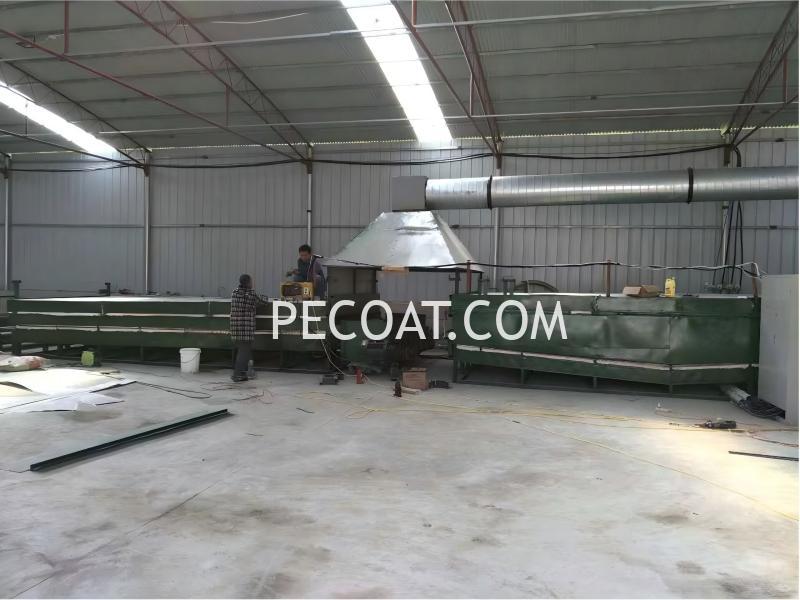

Our coil welded wire mesh roll PVC dip powder coating equipment is specially engineered for continuous powder dip‑coating of rolled wire mesh. Adopting fluidized bed PVC dip coating technology with gas heating as core thermal solution, this production line realizes automated workflow including unwinding, tension control, pre‑heating, powder dipping, curing, cooling, deviation correction and finished‑product winding. It delivers uniform, stable anti‑corrosion plastic coating on wire mesh surfaces.
Main Technical Parameters
| Item | Specification |
| Processed Workpiece | Wire mesh roll, width: 2000 mm, unlimited length |
| Heating Mode | Gas or electricity |
| Production Capacity | 600‑1300 m/h |
| Total Power Supply | 65 kW |
| Water Consumption | Circulating water: 2.5‑3.0 m³/h |
| Overall Equipment Dimension | 40 m(L) × 3.0 m(W) × 2.0 m(H) |
Core Equipment Configuration
- Mesh Unwinder
- Tension Adjuster

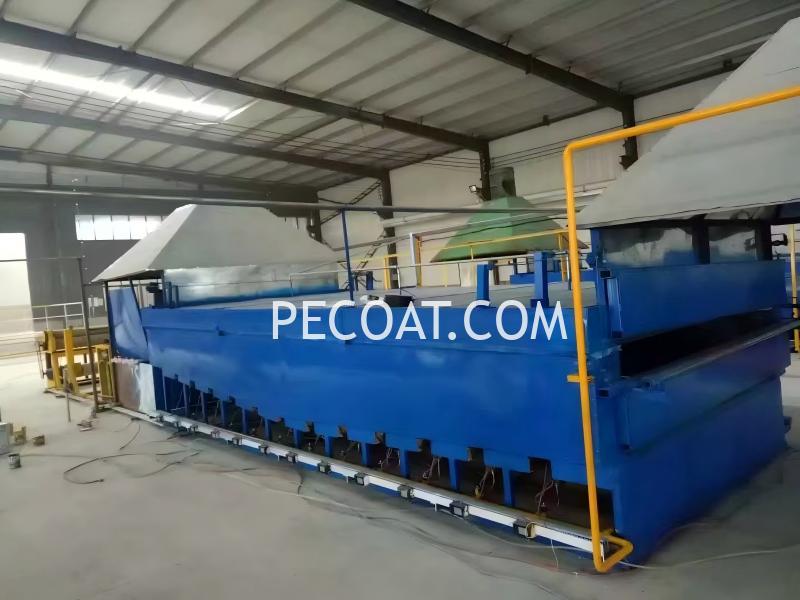

- Preheating Oven

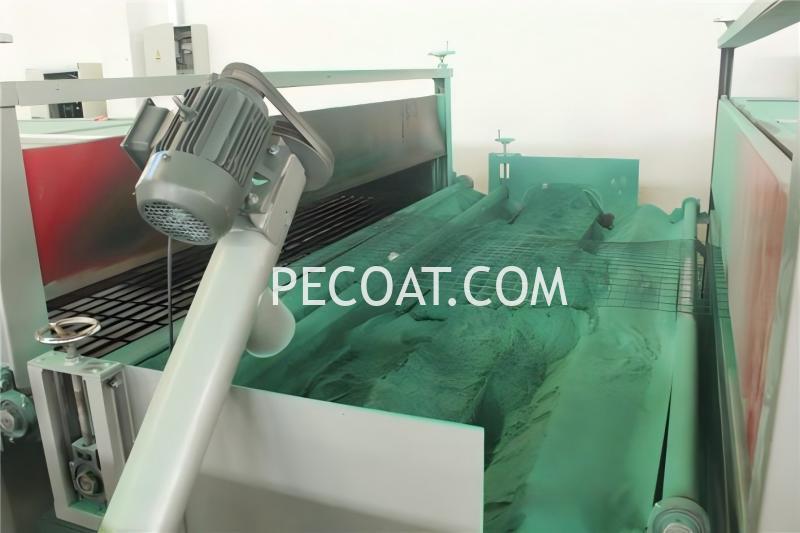

- Dip Coating Fluidized Bed & Vibrating Unit
- Curing Oven
- Cooling Water Tank Assembly
- Mesh Height Adjusting Frame
- Mesh Deviation Corrector
- Mesh Puller
- Mesh Winder
Use Video
Welded wire mesh rolls PVC powder coating machine Line #pvcpowdercoating #weldedcoilwiremeshroll
welded holland wire mesh production dip pvc powder coating line #wiremeshmachine #pvcpowdercoating
Holland wire mesh dip thermoplastic coating process - pecoat.com #wiremesh
PVC powder coating dipping process for welded wire mesh production
TONNY –
Can it use pe powder coating?
PECOAT –
PE powder is too expensive, seldom people use PE.
