Description

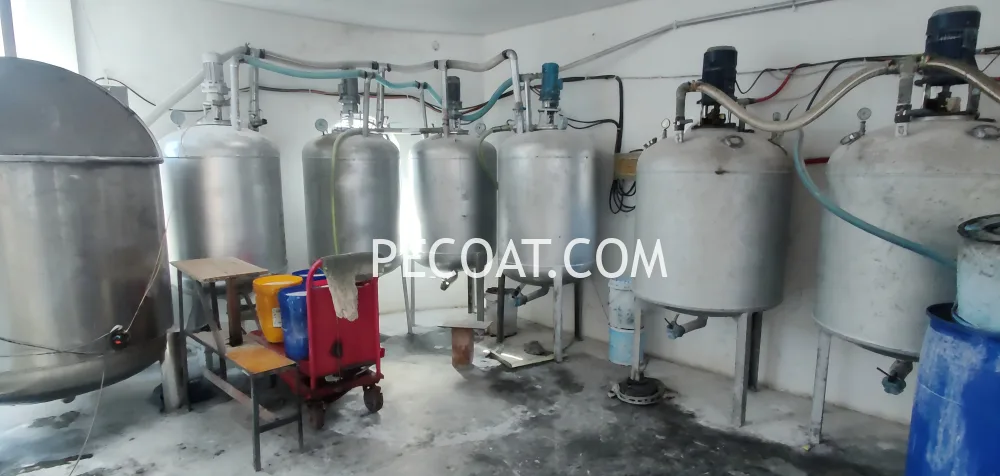

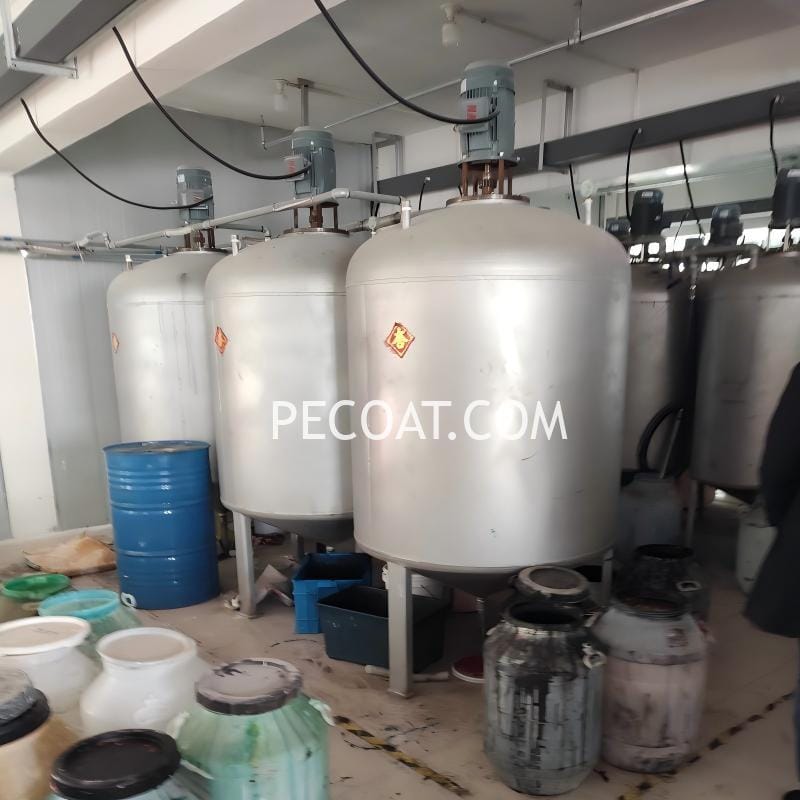

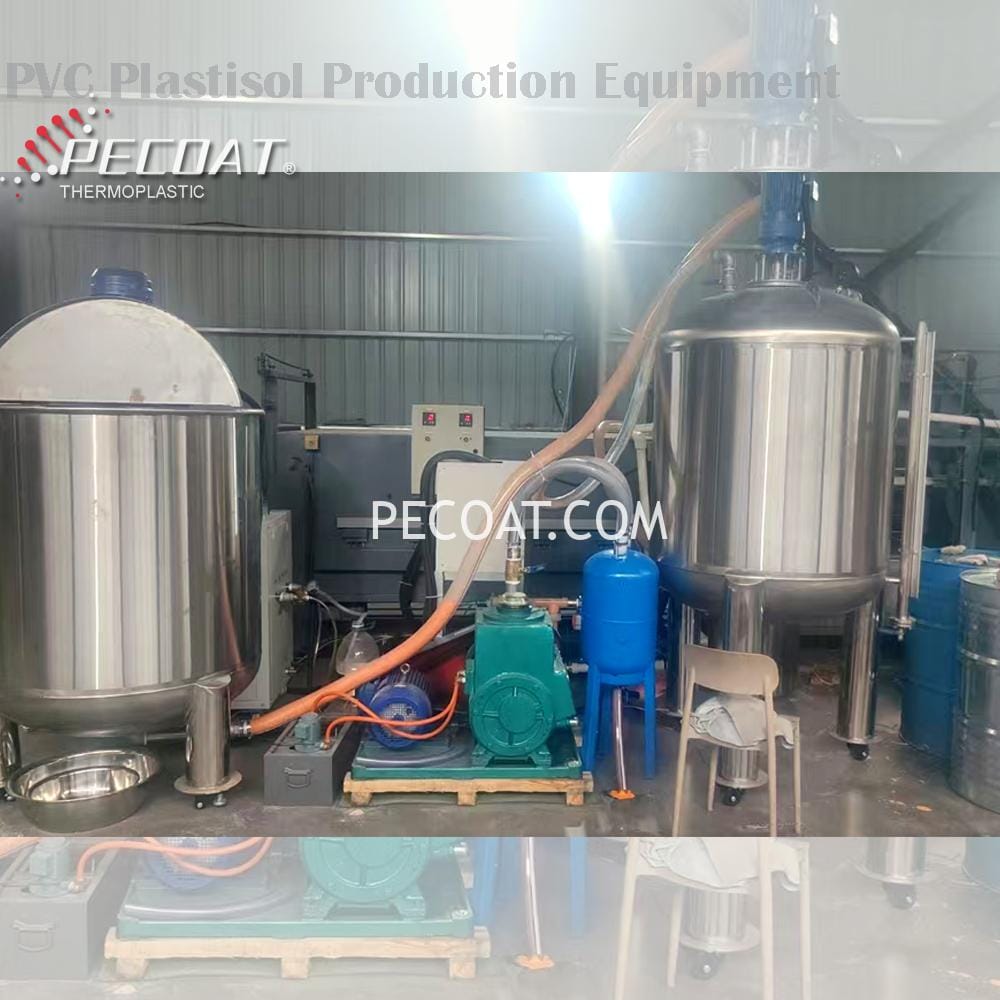

PECOAT® PVC Plastisol Production Equipment Set mainly include pre-mixer, vacuum mixer & vacuum pump system. Constructed primarily from stainless steel and carbon steel, it is robust, durable and highly efficient in production. The pre-mixer is equipped with an iron propeller and a 3mm-thick iron tank (509 liter), plus stainless steel valves and connections for stable mixing. The vacuum mixer features a 3mm-thick stainless steel tank (200 liter), a stainless steel propeller and an iron disc to ensure smooth stirring and reliable vacuum sealing. The vacuum pump comes with a 6.6KW motor, offering a pumping speed of 70L/s and strong vacuum performance, along with auxiliary parts like stainless steel ovens and dipping tanks.

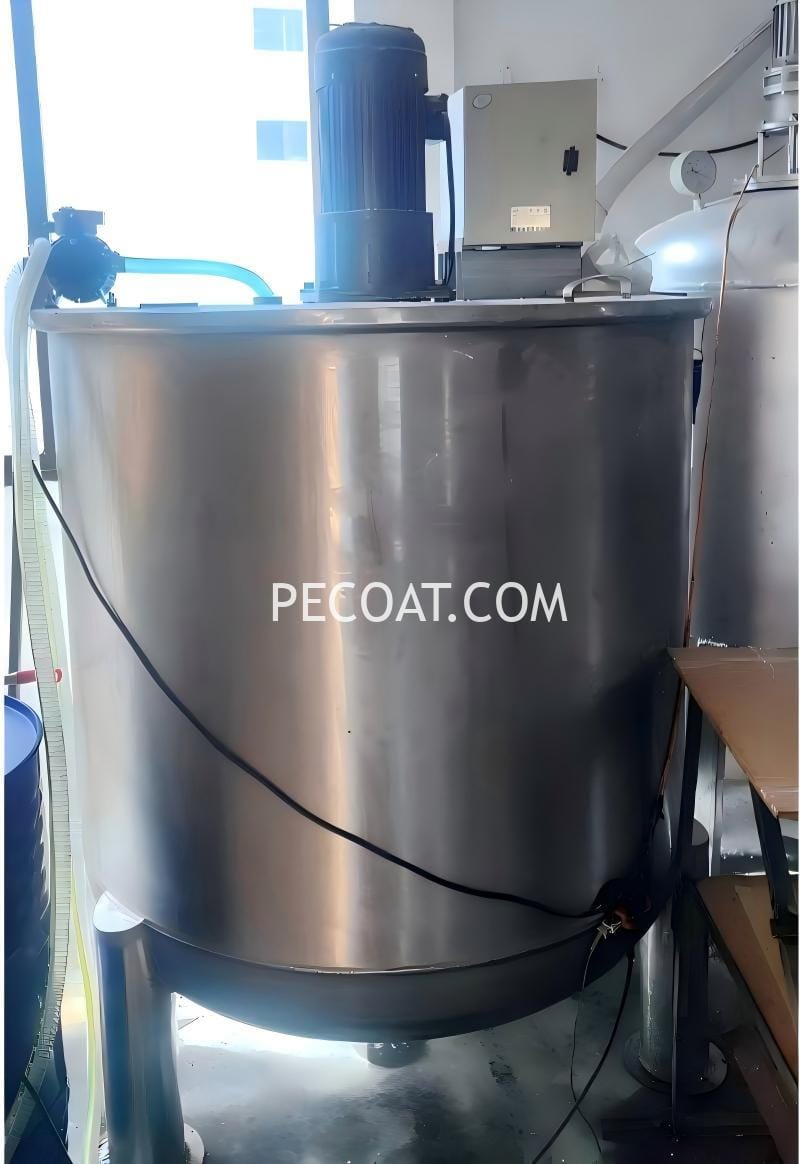

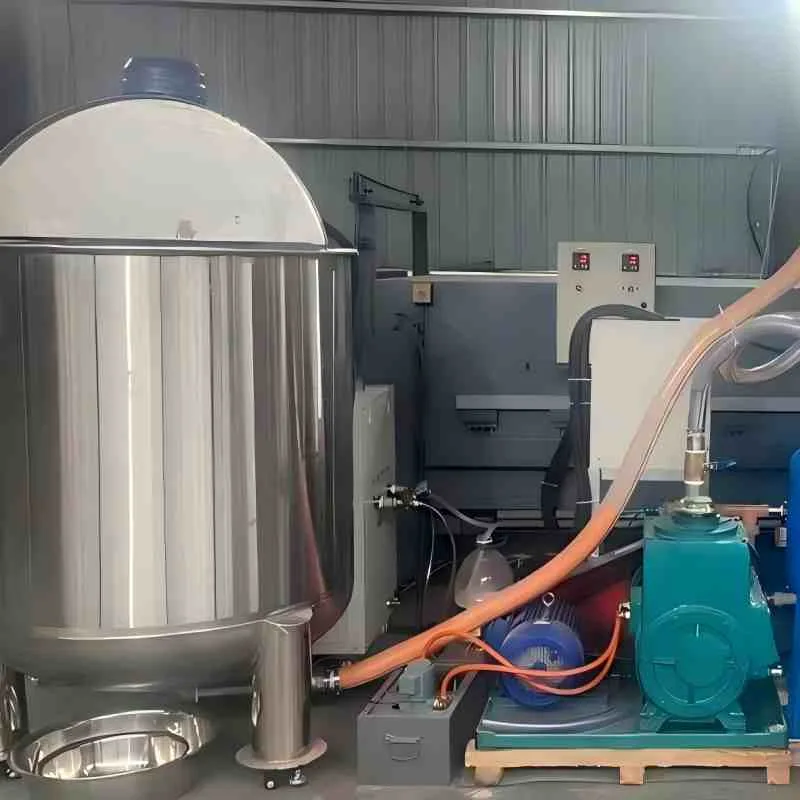

Pre-Mixer
This pre-mixer is fully assembled with standardized components, featuring a reasonable structural design and high mixing efficiency. It can meet the requirements for stability and practicality of material mixing in industrial production.
| Component | Specifications |
| Equipment Name | Automatic Pre-mixing Tank |
| Mixing Motor | 4KW Three-Phase Motor |
| Frequency Converter | 5.5KW Frequency Converter |
| Reducer | 4KW Motor-Matched Reducer |
| Propeller | Material: Iron
Size: Diameter 40mm, Length 800mm |
| Tank Body | Material: Iron Plate (3mm Thick), |
| Size: Dia.900mm, Height 800mm | |
| Volume: 509 liter | |
| Pneumatic Diaphragm Pump | 304 Stainless Steel Material |
| Air Inlet Valve | 304 Stainless Steel Material, Dia.60mm, Wall Thickness 3mm |
| Connection Port | 304 Stainless Steel Material, Dia.60mm, Wall Thickness 3mm |
| Auxiliary Component | Depth Gauge |
Vacuum Mixer
This vacuum mixer features high-quality materials and a reasonable structural design. Its mixing and vacuum functions work synergistically, meeting the demand for refined processing such as material mixing and degassing in industrial production, while combining durability and practicality.
| Component | Specifications |
| Equipment Name | Vacuum Mixer Tank |
| Mixing Motor | 1.5KW Three-Phase Motor |
| Frequency Converter | 2.2KW Frequency Converter |
| Reducer | 1.5KW Motor-Matched Reducer |
| Propeller | 304 Stainless Steel Material, Diameter 30mm, Length 850mm |
| Tank Body | Material: 304 Stainless Steel(3mm Thick), |
| Size: Diameter 600mm, Height 700mm | |
| Volume: 200 liter | |
| Air Inlet Valve | 304 Stainless Steel Material, Diameter 60mm, Wall Thickness 3mm |
| Air Outlet Valve | 304 Stainless Steel Material, Diameter 32mm, Wall Thickness 3mm |
| Connection Port | 304 Stainless Steel Material, Diameter 60mm, Wall Thickness 3mm |
| Vacuum pump | Pumping rate reaches 70L/s |
