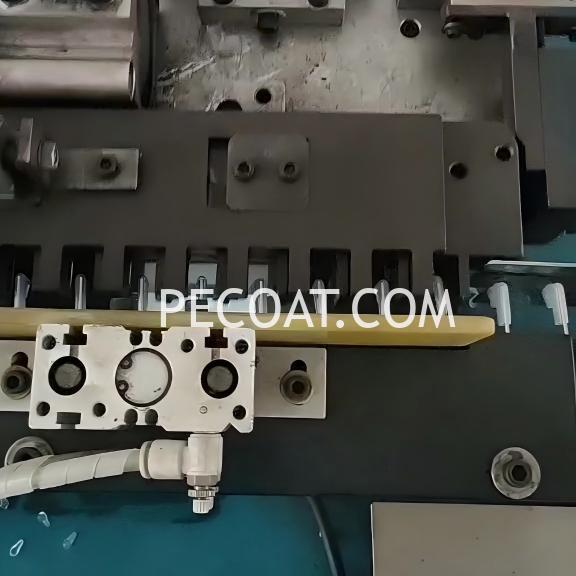

Cutting Machine for PVC Terminal Sheath End Caps/Sleeves - Image 2

Cutting Machine for PVC Terminal Sheath End Caps/Sleeves

Name: Cutting Machine for PVC Terminal Sheath End Caps/Sleeves
SKU: 1248
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

$200.00

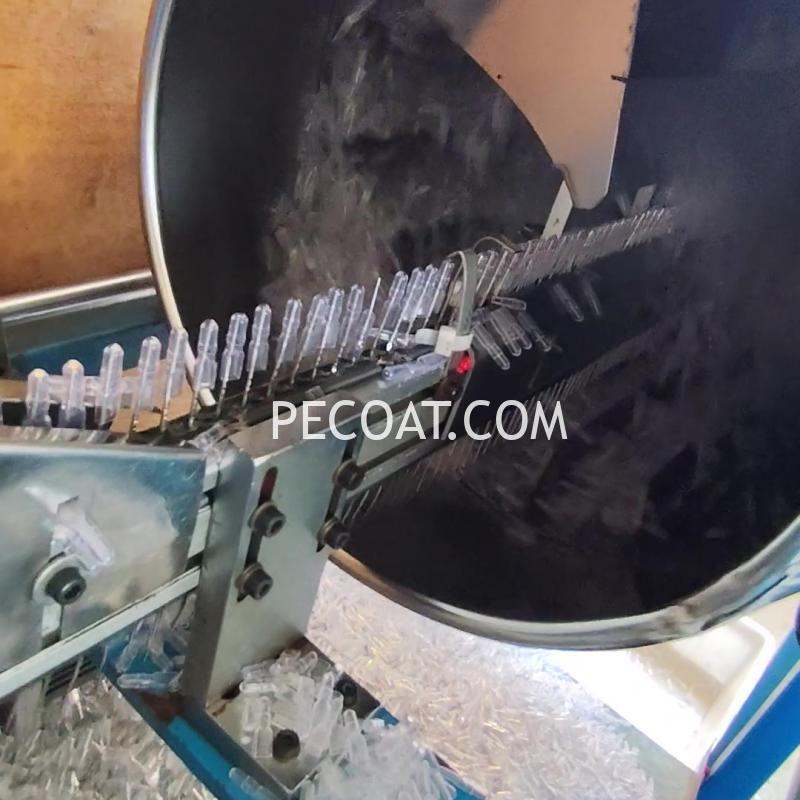

PECOAT® NF2354 is a specialized end-cutting machine for PVC terminal sheaths, caps, and sleeves. It provides standardized, high-precision end trimming for these parts, offering an efficient solution for mass production of terminal protection components in wire harness processing and connector manufacturing industries.

Types available: round-end cutting,square flat-end cutting
Lead time: 7-12 days

How To Get A Quote?

Please send the picture or the drawing of the terminal sheaths to be cut,this information can help us to recommend a suitable type of machine.

Please contact us for accurate price.

SKU: 1248 Category: Thermoplastic Coating Line

Description

Core Functions & Cutting Types

The machine supports two end-cutting styles, which can be flexibly selected based on the shape and size of the workpiece:

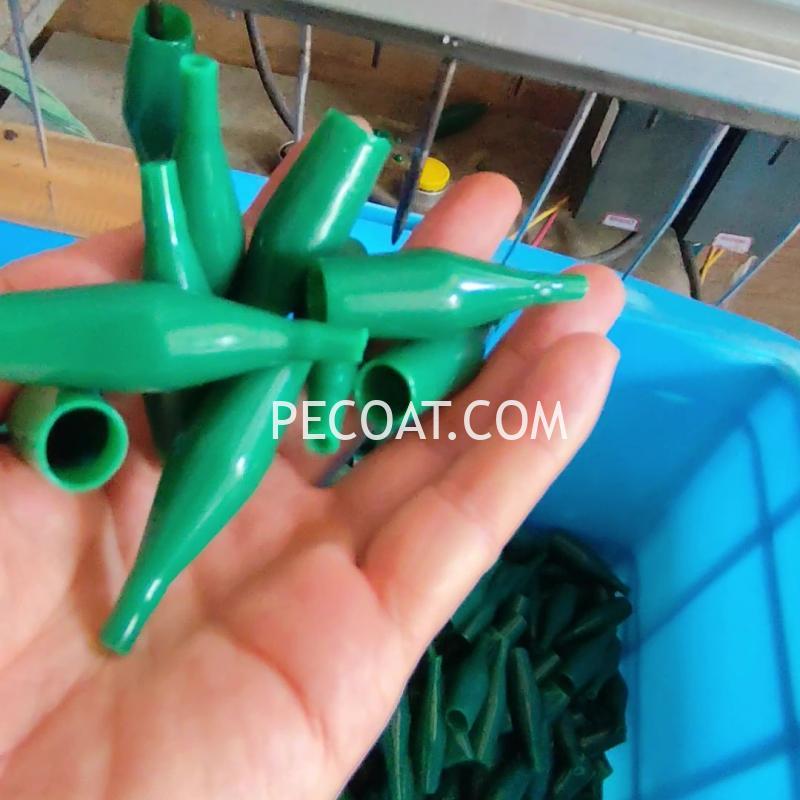

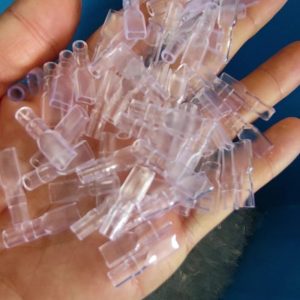

Round-End Cutting: Ideal for caps/sleeveswith round end.
Flat-End Cutting: Idea for terminal sheathwith square flat end.

The choice of cutting style is entirely based on the specific shape, size, and actual assembly needs of the caps or sleeves to be processed.

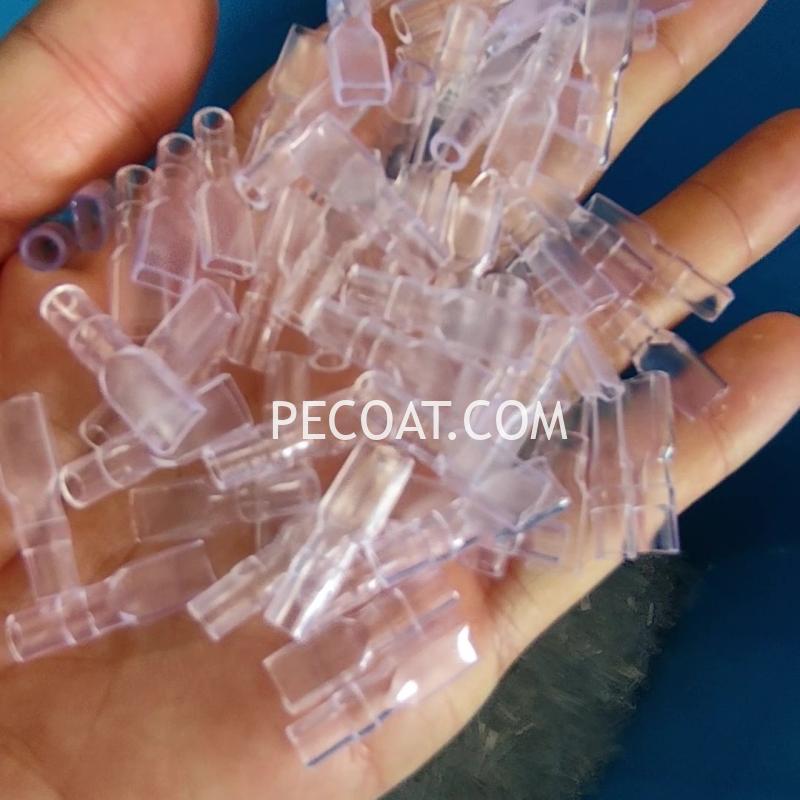

Square Flat-End Terminal Sheath — Square Flat-End

Specification

Equipment dimensions	2.3m0.6m1m
Materials	Stainless steel and iron
Rotation Chuck with cutters	Several sets. The sets number depends on the size of the caps or sleeves to be cut. It means Each size of end cap or sleeves is equipped with a corresponding Rotation Chuck with cutters.

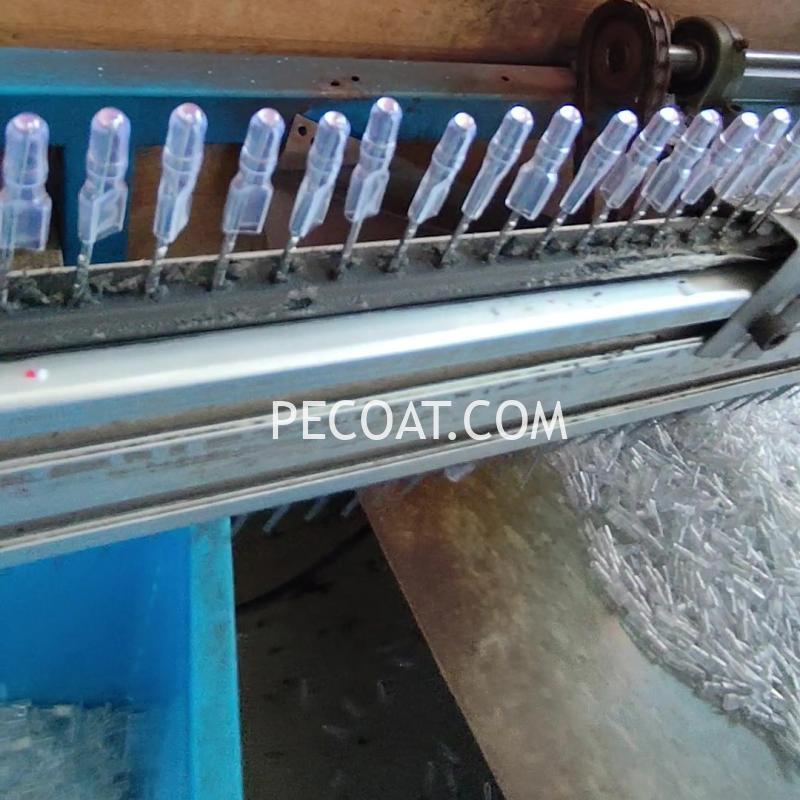

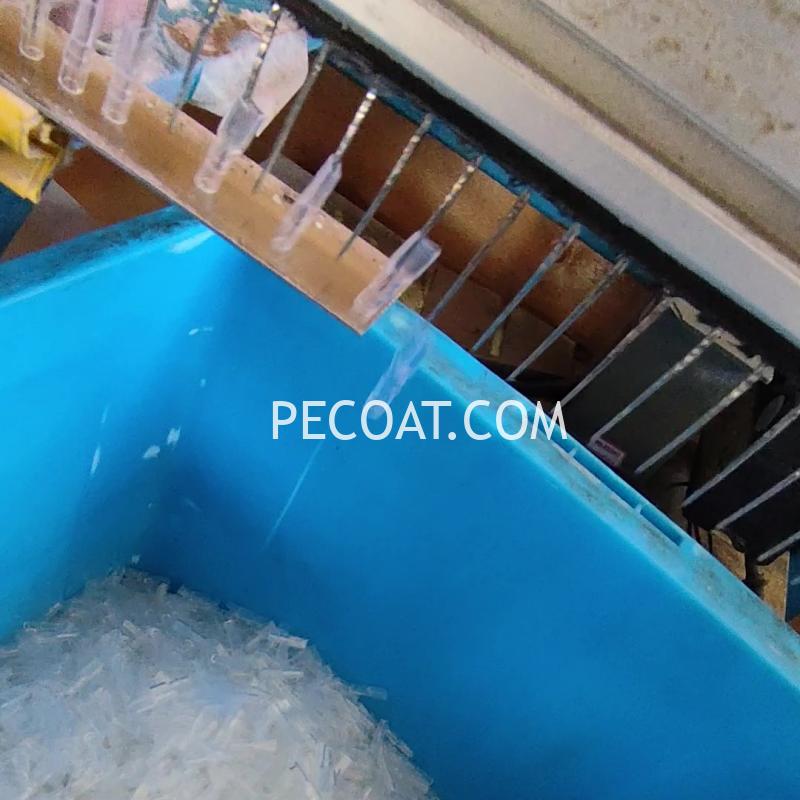

Conveyor Belt with needles	One set

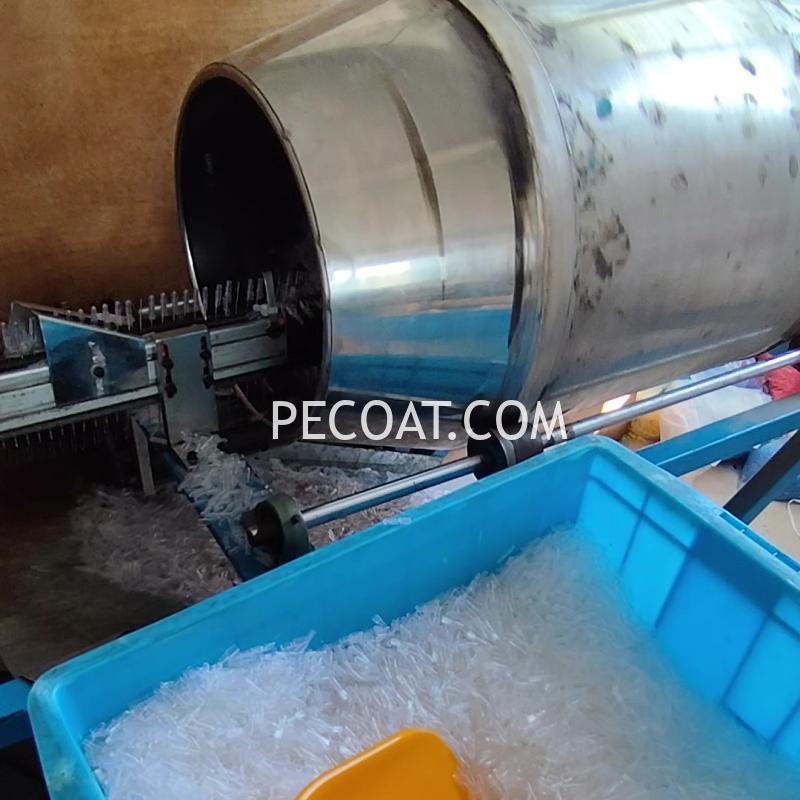

Rotating Feeder	One set, Diameter: 0.52m
Power	2 kw
Output capacity	Approximate 200pcs/minutes
Voltage	by default 380V 50HZ for other voltage,an transformer with extra cost may be required
Accessories/Spare parts	Needles	20pcs
	Cutter	3pcs
