Description

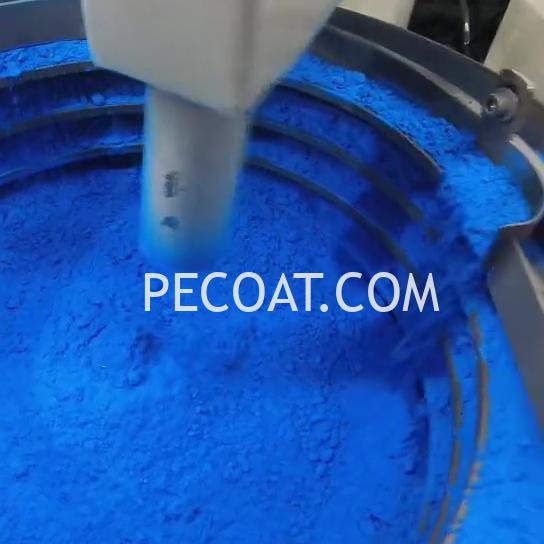

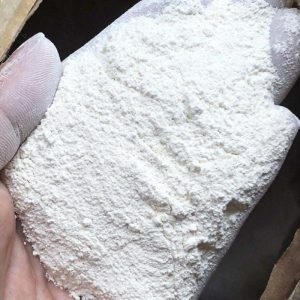

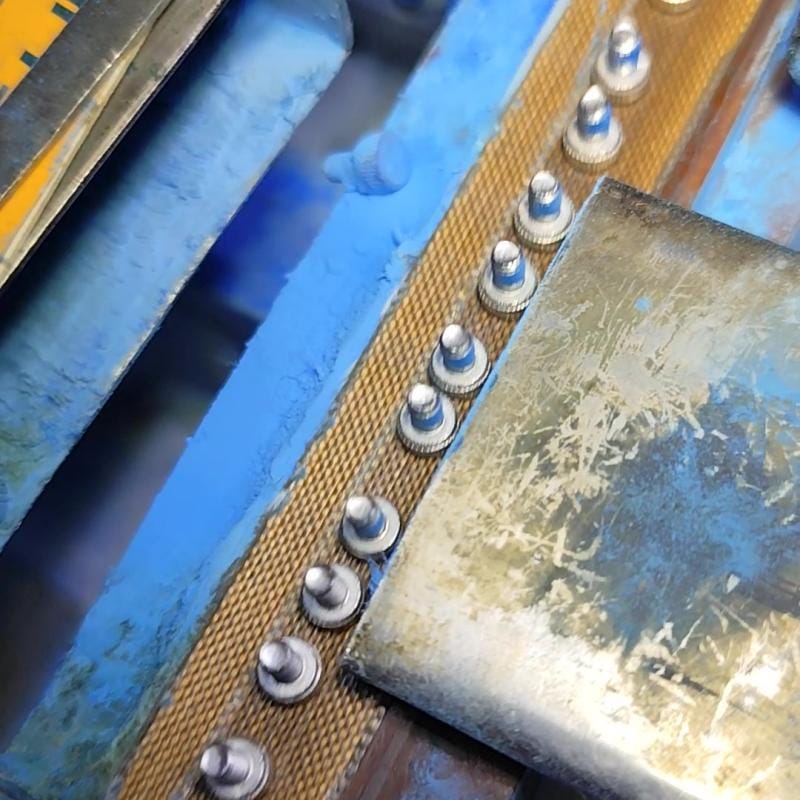

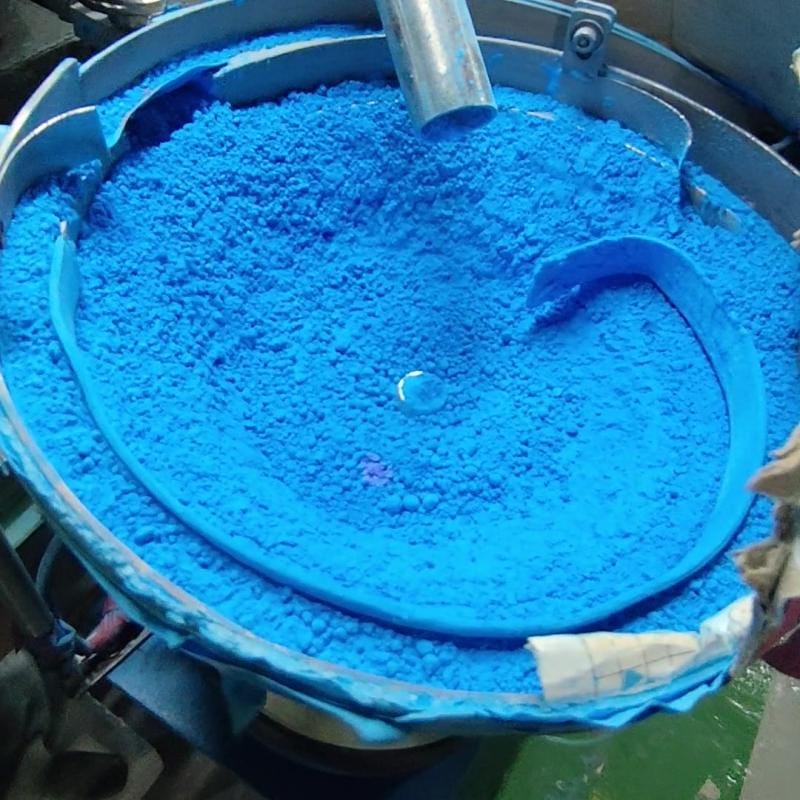

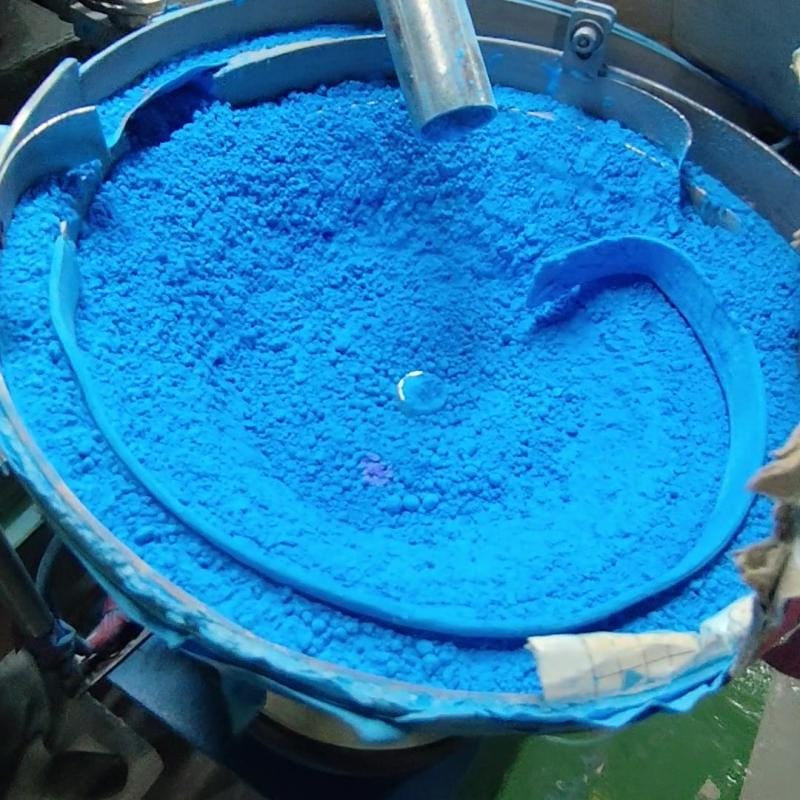

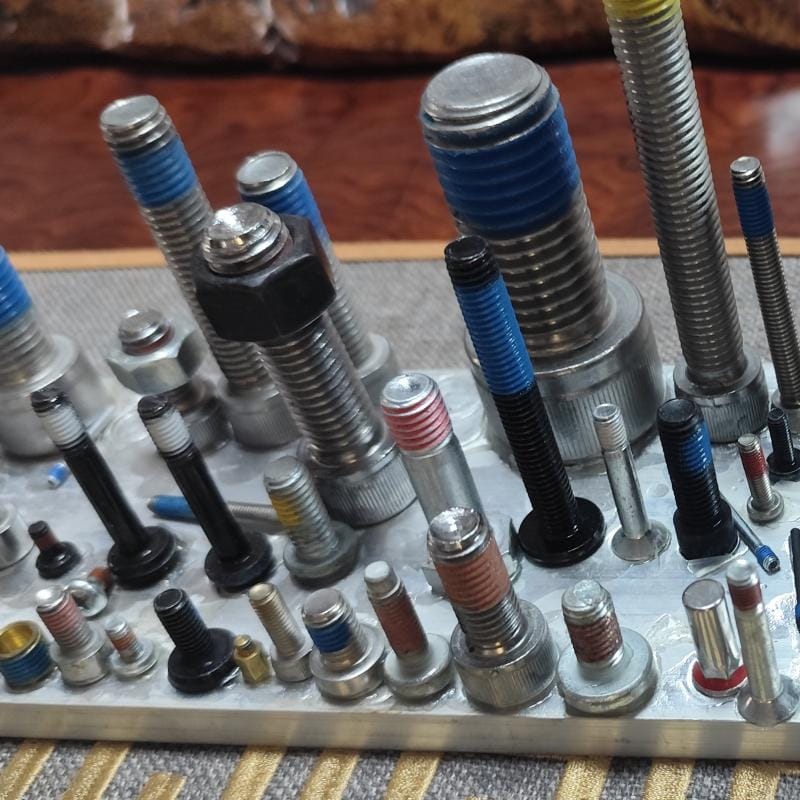

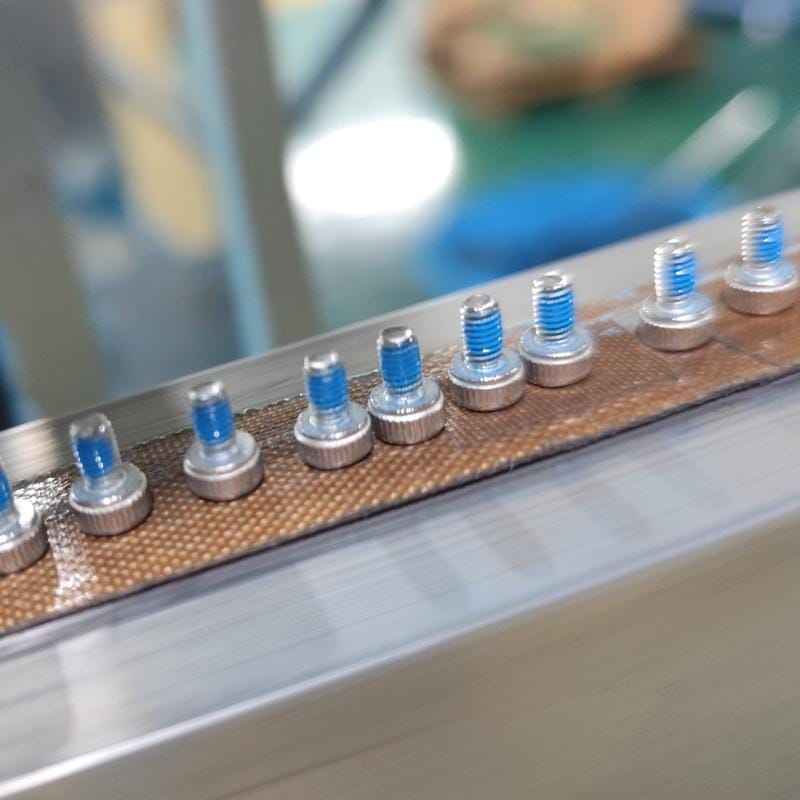

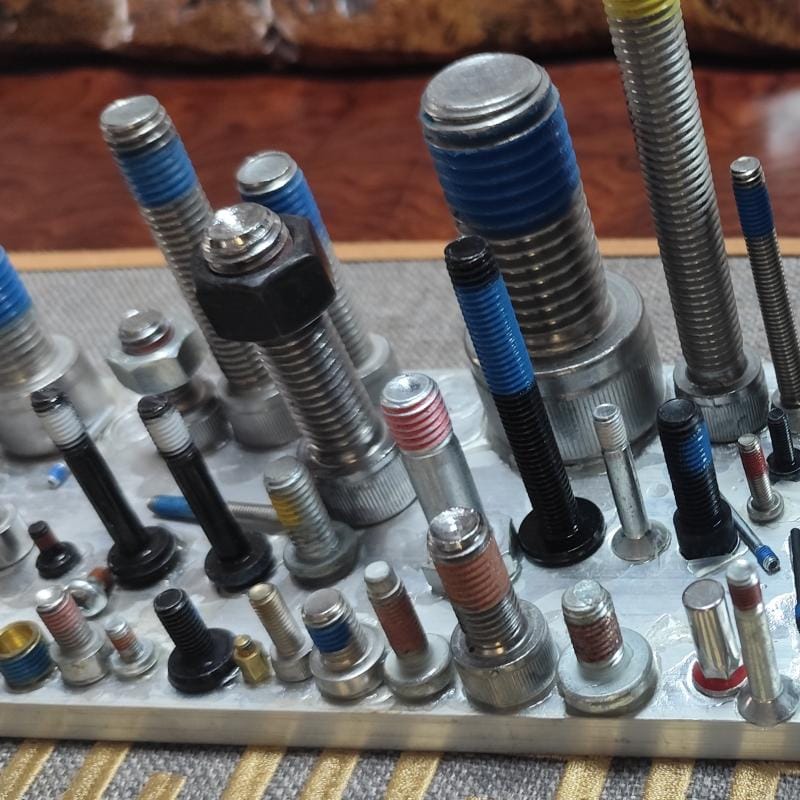

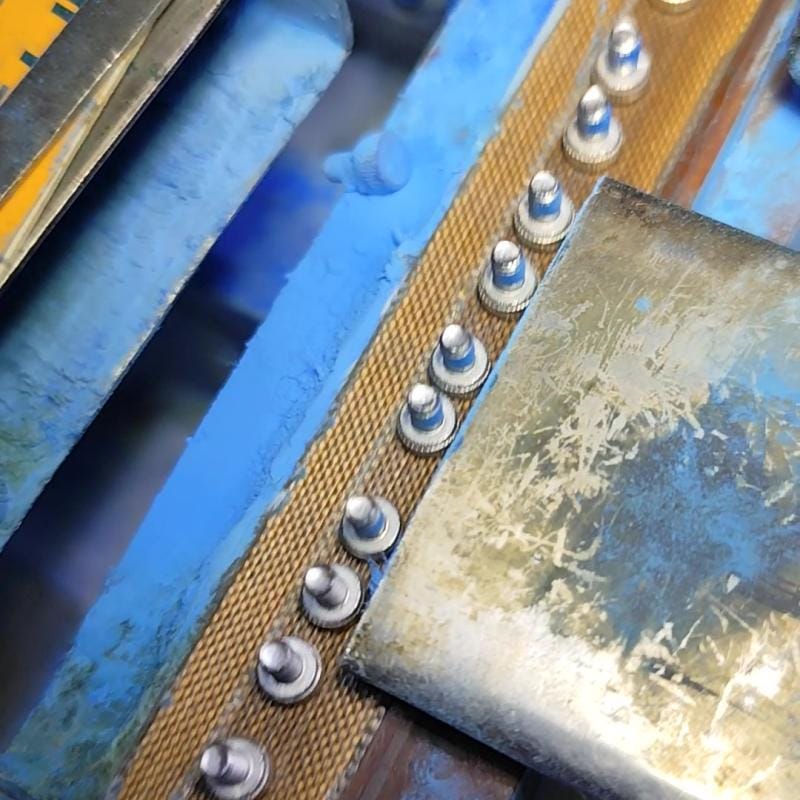

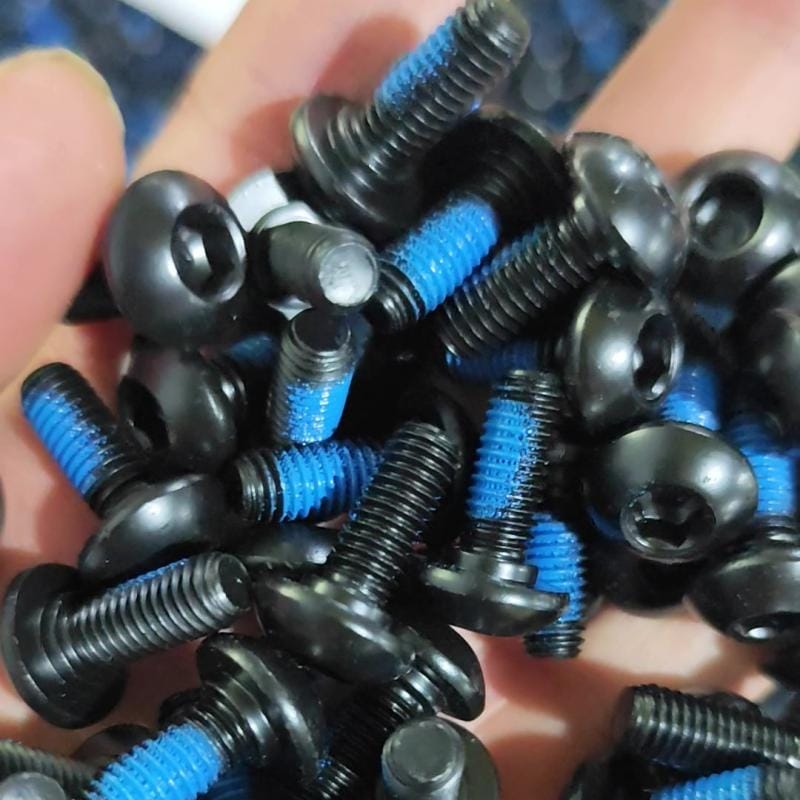

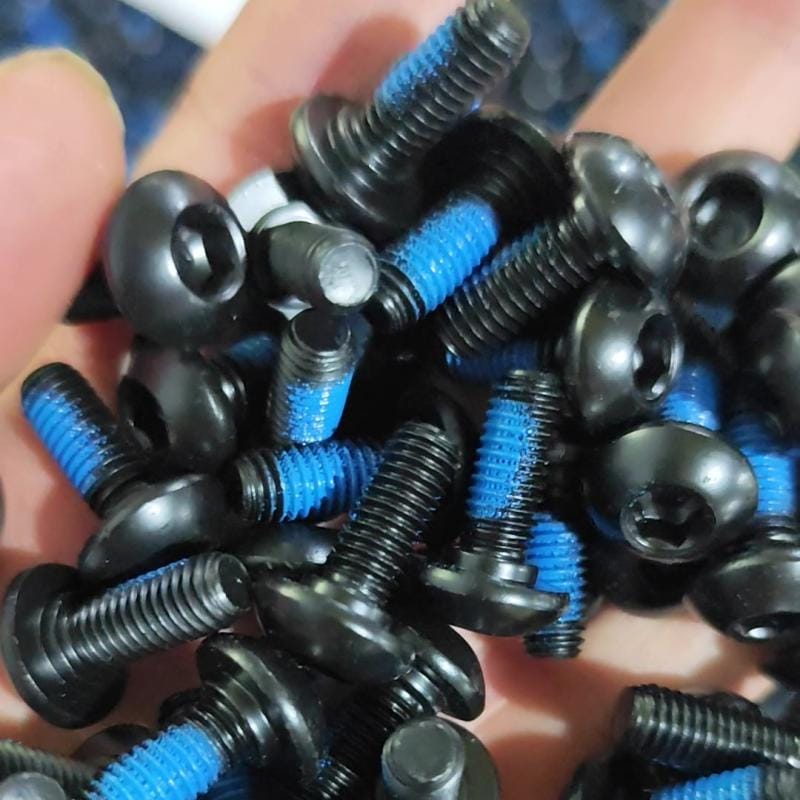

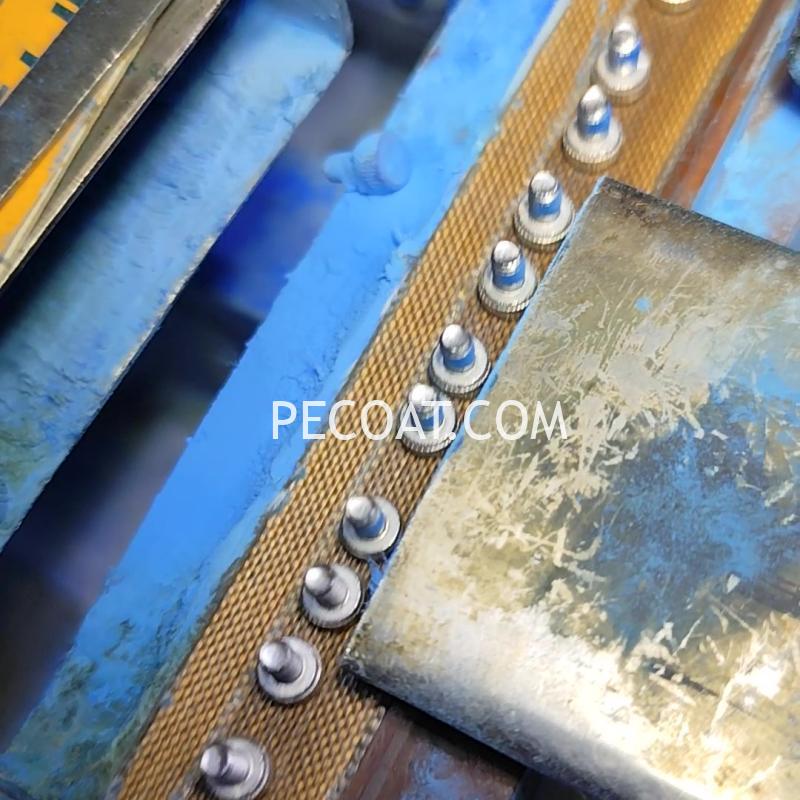

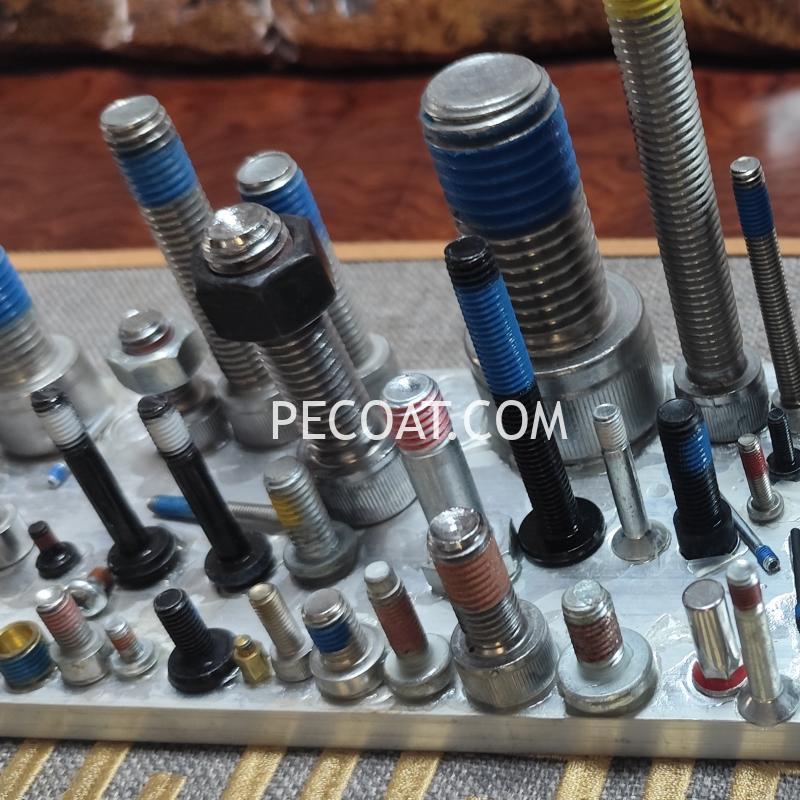

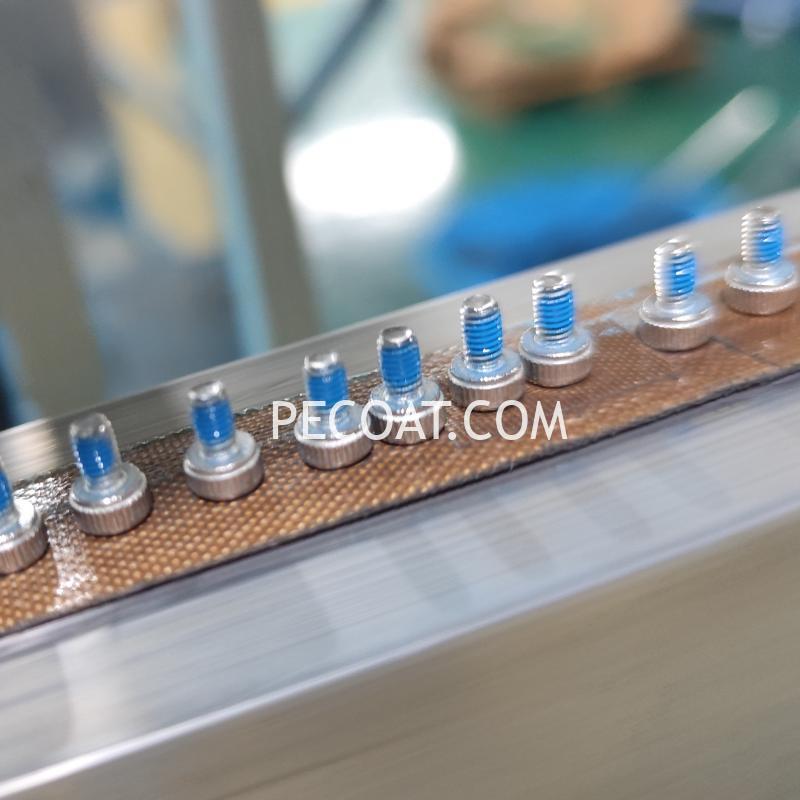

This machine is professional equipment for applying nylon coating on anti-loose or self-lock screws. It adopts high-frequency induction heating to heat screws to about 185°C, then sprays nylon powder onto the thread, making the nylon firmly adhere to form stable friction resistance, effectively preventing screws from loosening during use. It is available in single-track and double-track models to meet different production needs, widely used in anti-loose processing of metal screws.
Core Parameters
| Item | Single Track Model | Double Track Model |
| Body Length | 2.4m | 2.0m |
| Track Structure | Single belt track with magnetic strips | Dual belt tracks (adjustable width) |
| Processing Screw Spec | Generally suitable for small-size headless screws. | Normally used for large-size headed screws. M3–M10 (standard); M3–M25 (max) |
| Screw Length | — | 8mm–150mm |

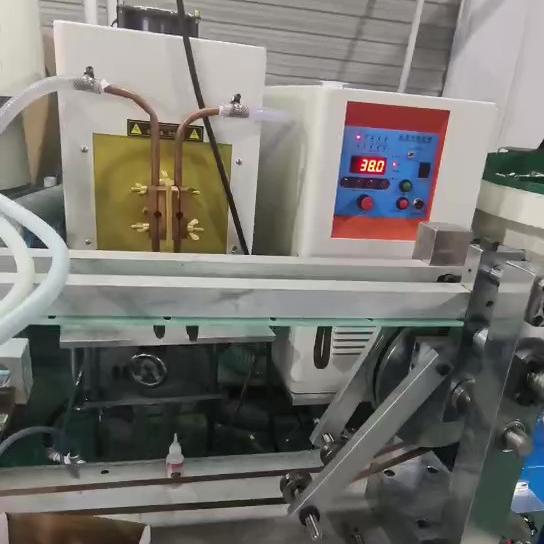

| Heating Method | High-frequency induction heating, 185°C | Ultra-high frequency induction heating |
| Heating Power | 20-5kw | 20kW (≤M10); 30kW (>M10) |
| Input Voltage | 220V | 220V/380V |
| Production Efficiency | Approx. 15,000 pcs/h | Approx. 15,000 pcs/h (M10×30 screw) |
| Installation Space | 4m (L) × 2.0m (W) | 3.5m (L) × 2.0m (W) |
Product Features

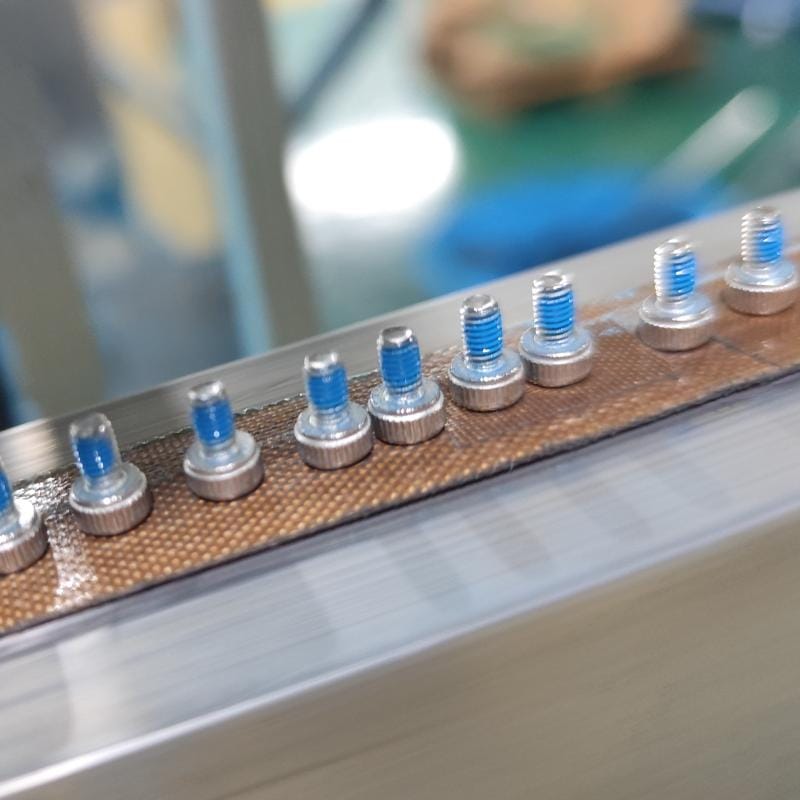

- Stable coating quality: Nylon firmly attached, uniform thickness, reliable anti-loose performance.
- High compatibility: Adjustable track and spray nozzle, suitable for diverse screw specifications.

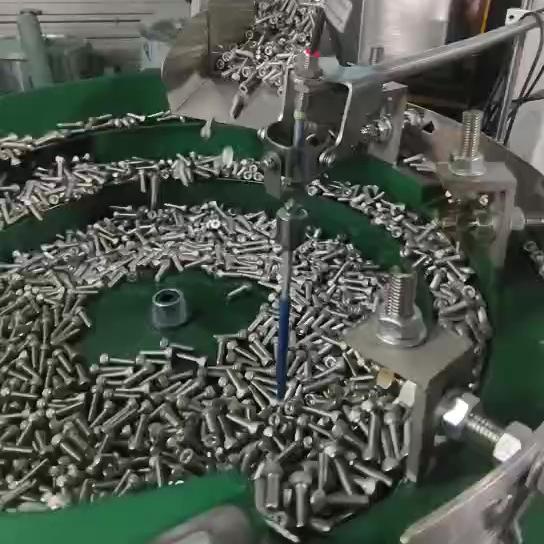

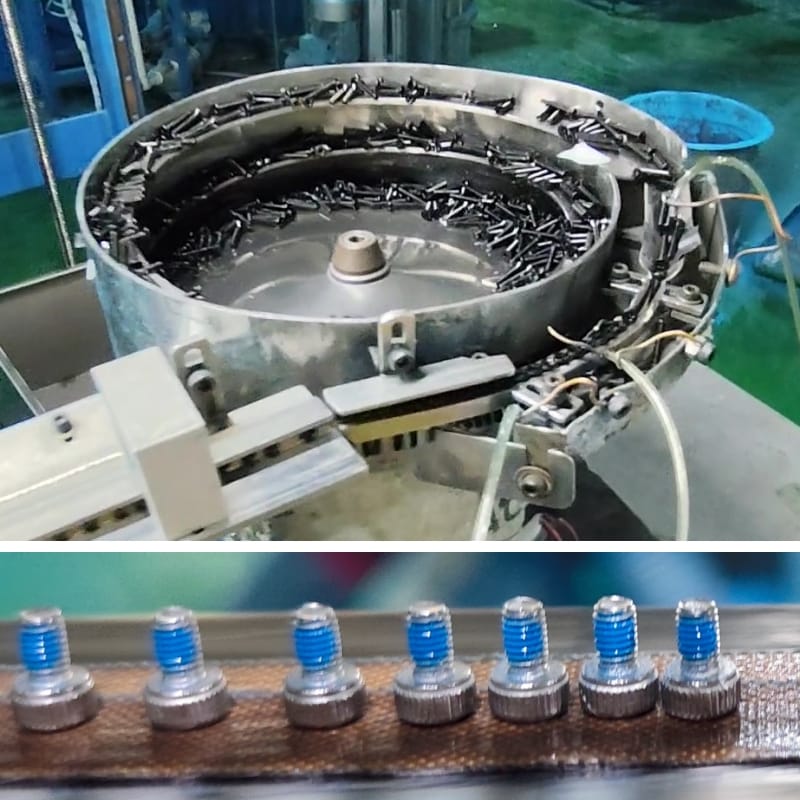

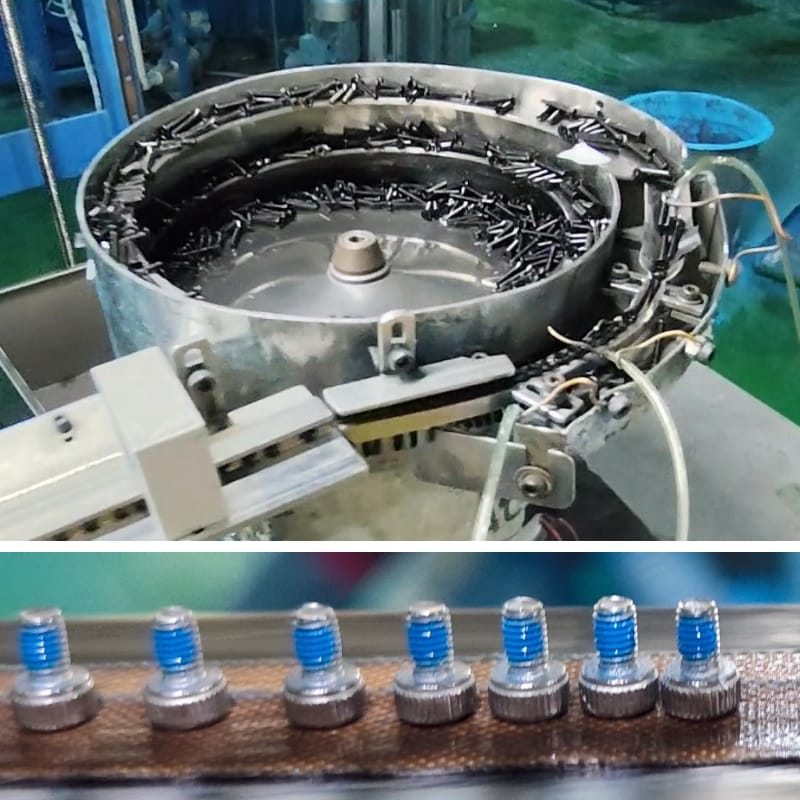

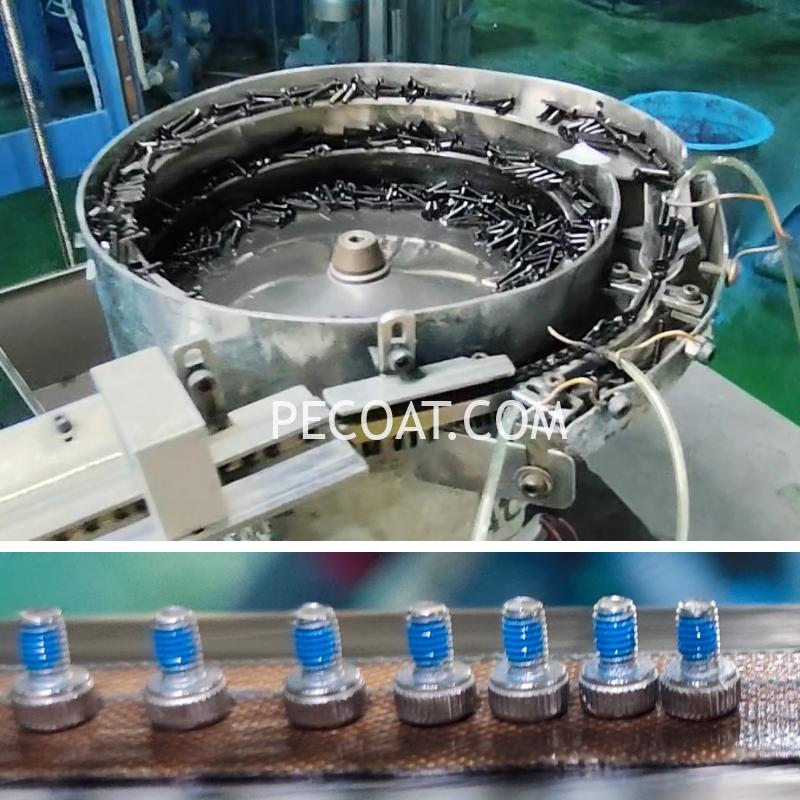

- High efficiency: Automatic feeding, heating, spraying, cooling and receiving, stable continuous production.
- Easy operation & maintenance: Simple process flow, easy cleaning, avoid mixed materials.

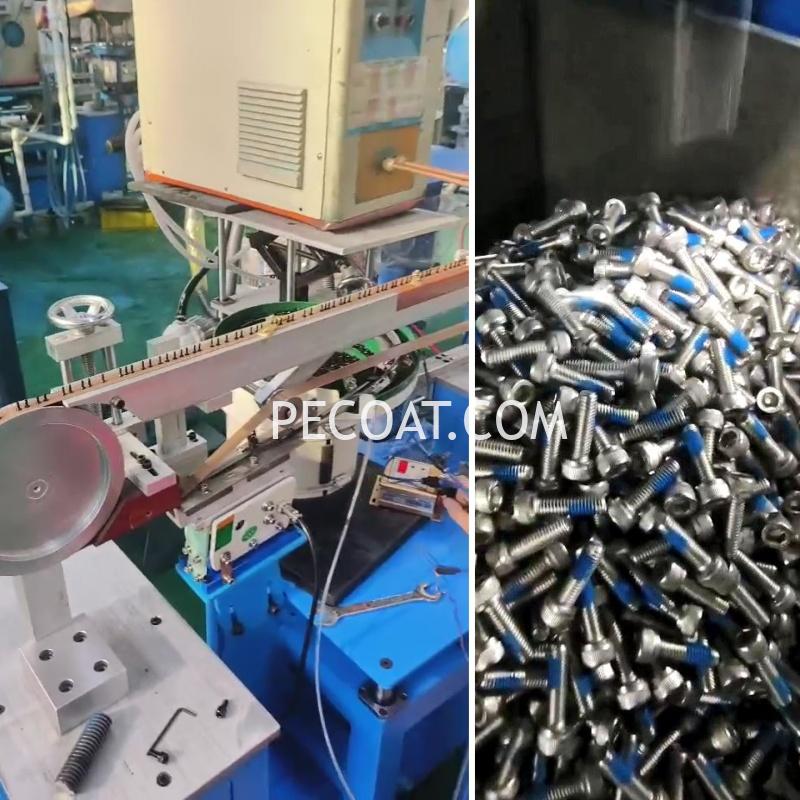

- Flexible configuration: Support single / double track selection, customizable auxiliary devices.
Product Videos
1
/
2

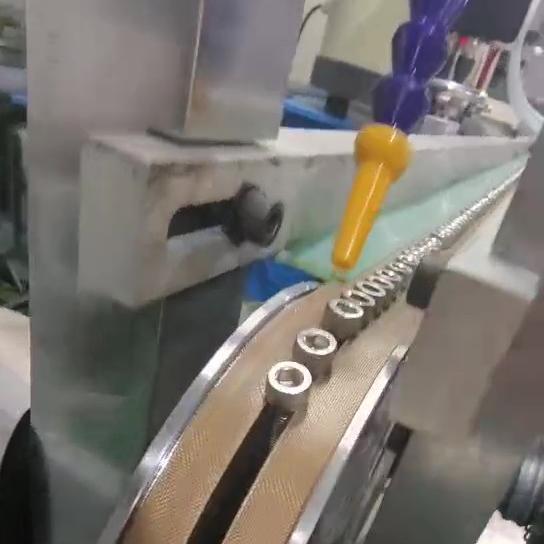

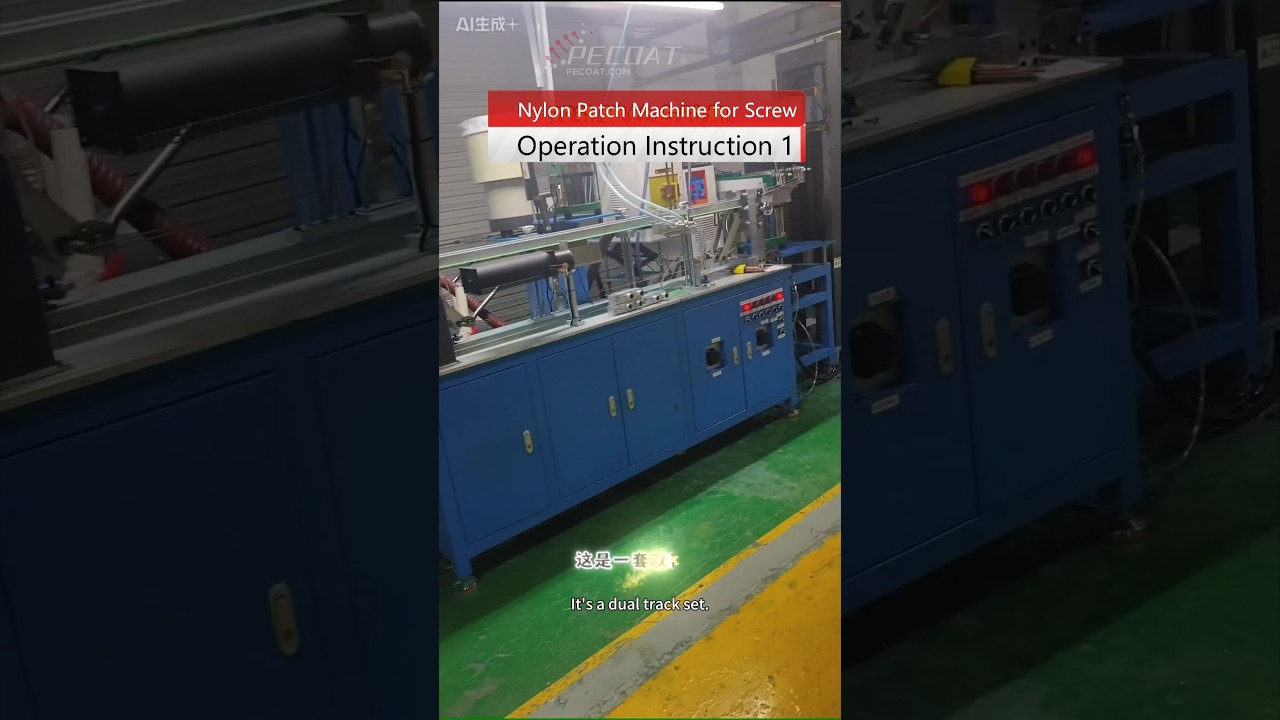

Dural track screw bolts nylon patch coating machine - operation instruction 1 -www.pecoat.com
PA Nylon Patch Coating Machine for Screw Threads M8-M10.#nylonpatchmachine
Nylon Patch Machine for self-lock screws, run-testing before delivery,ready for shipping.

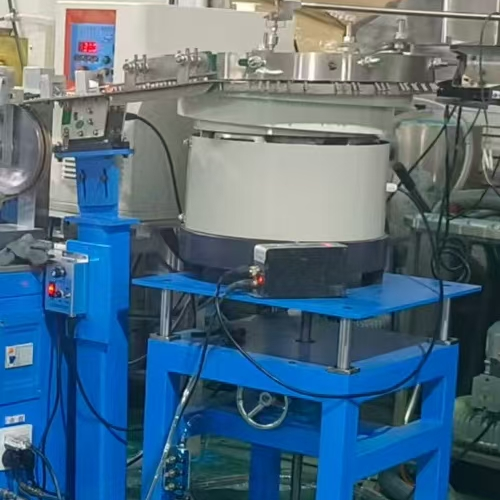

Single-track nylon patch coating machine for smaller size self-lock screws. #machine #factory

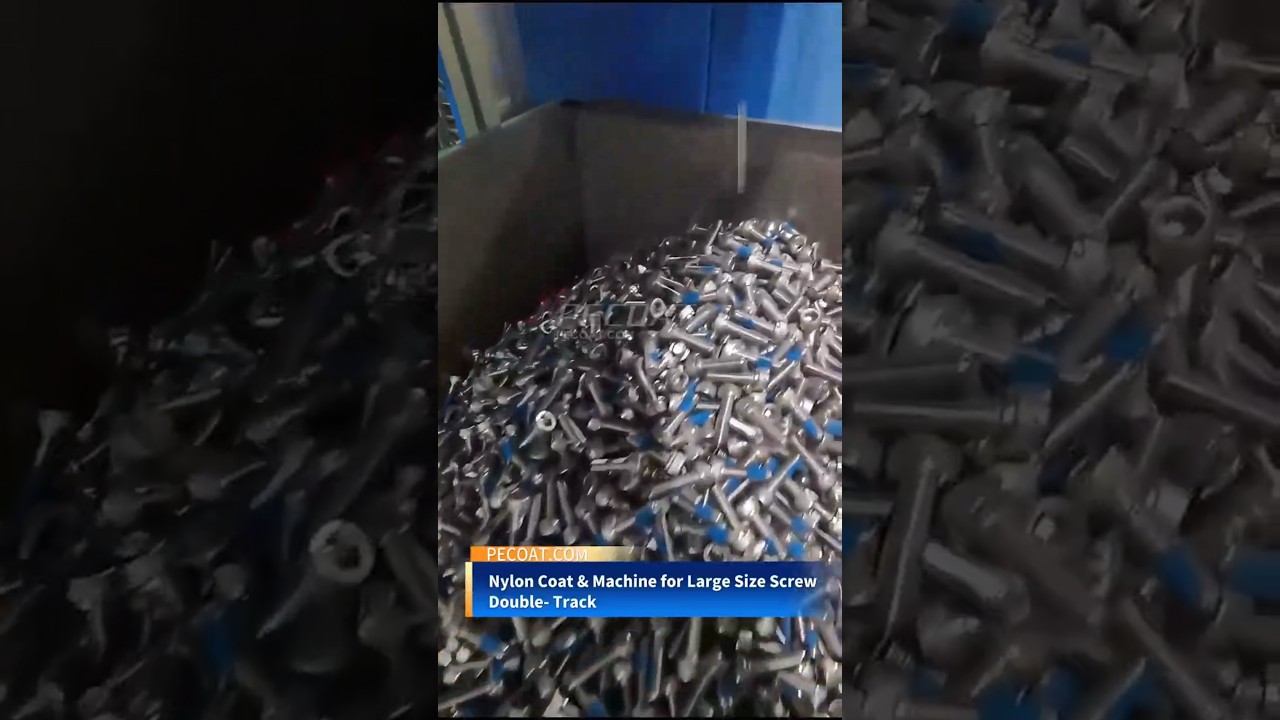

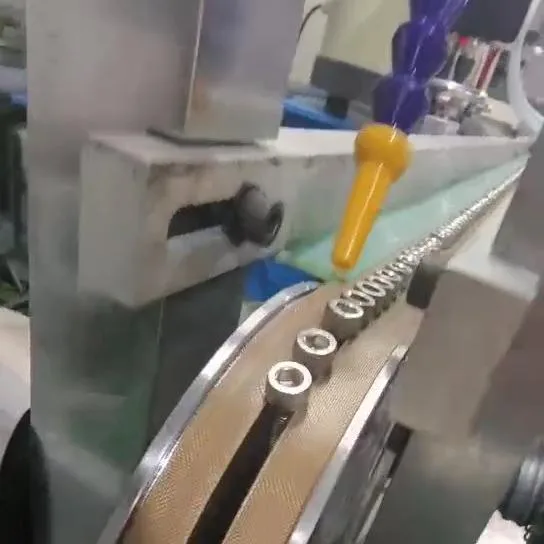

Nylon patch coat machine double track for self-lock screw M3-M10,nylon patch applicator for screw
Self-lock screw nylon coating machine, nylon patch coating machine for anti-loose screws,bolts nuts.
1
/
2
FAQ
- Single track : generally suitable for small-size headless screws.
- Double track : normally used for large-size headed screws.
Production lead time is 15-20 days after prepayment.
The machine is packed in export-standard wooden cases.
Noble –
May I get more arranty & after-sales service details please?
TEr –
do you have the anti-screw coating machine for liquid coat ?
PECOAT –
Yes, we have, our machine is customized.
