Automatic PVC Dip Coating Line for Truck Bumper Guard Anti‑Collision Beam

(1 customer review)

$999.00

PECOAT® Custom fully‑automatic PVC plastisol dip coating production line for large‑size truck & off‑road vehicle anti‑collision beams. Solve unstable coating quality & high‑labor‑cost pain points of manual dipping. Supports black, silver, blue or any finishes, hanging conveyor design, on‑site installation available.

Main Specification

  • Coating Material: PVC Plastisol
  • Equipment Type: Full‑automatic
  • Installation Service: Available
  • Production Time: 30-40 days

How To Get A Quote?

To provide accurate prices, the following information is required.

  • What is the max dimension of workpiece to be coated? (L× W× H).
  • Which heating source do you use? Electricity or gas?

The above prices are for display only. Please contact us for accurate pricing.

SKU: 1024 Category:

Description

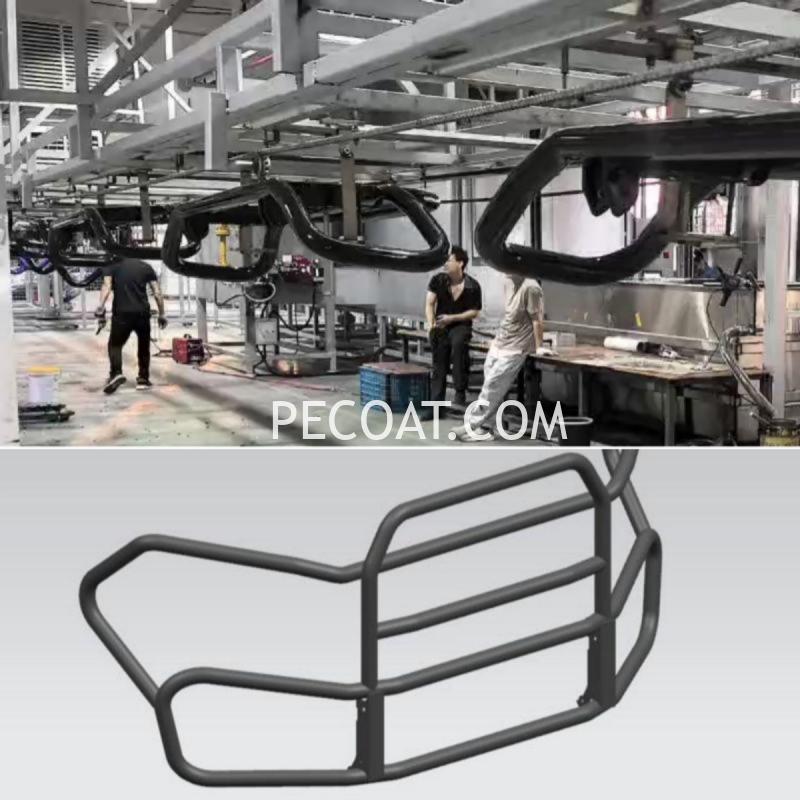

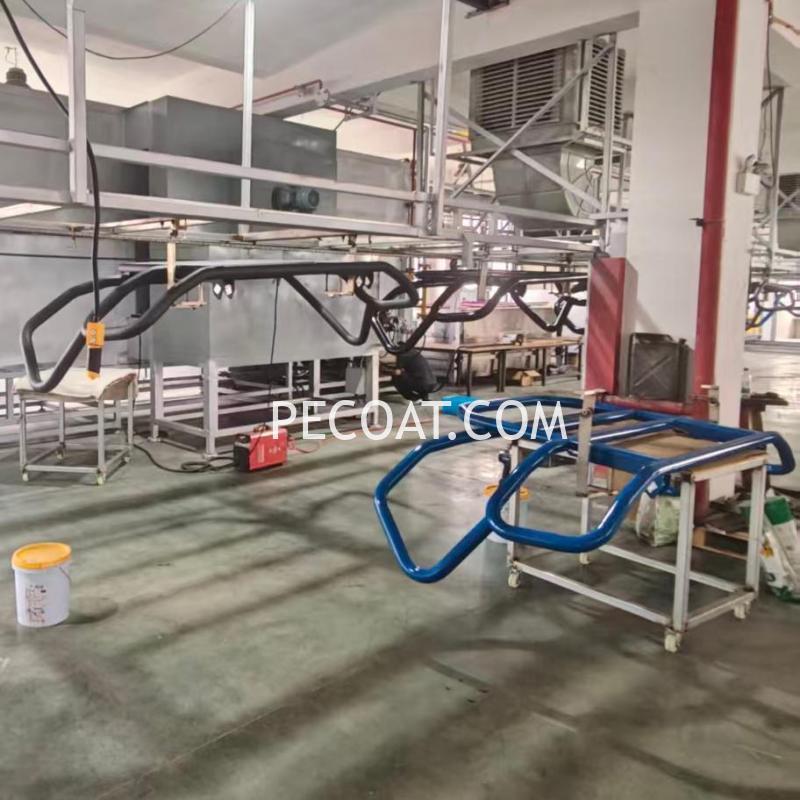

This custom dip coating line is built for customers producing frame‑type anti‑collision beams for trucks and off‑road vehicles. Workpiece dimension: 2593×1092×914 mm, weight ranges 55‑80 kg, requiring black surface finishes.

Design Concept

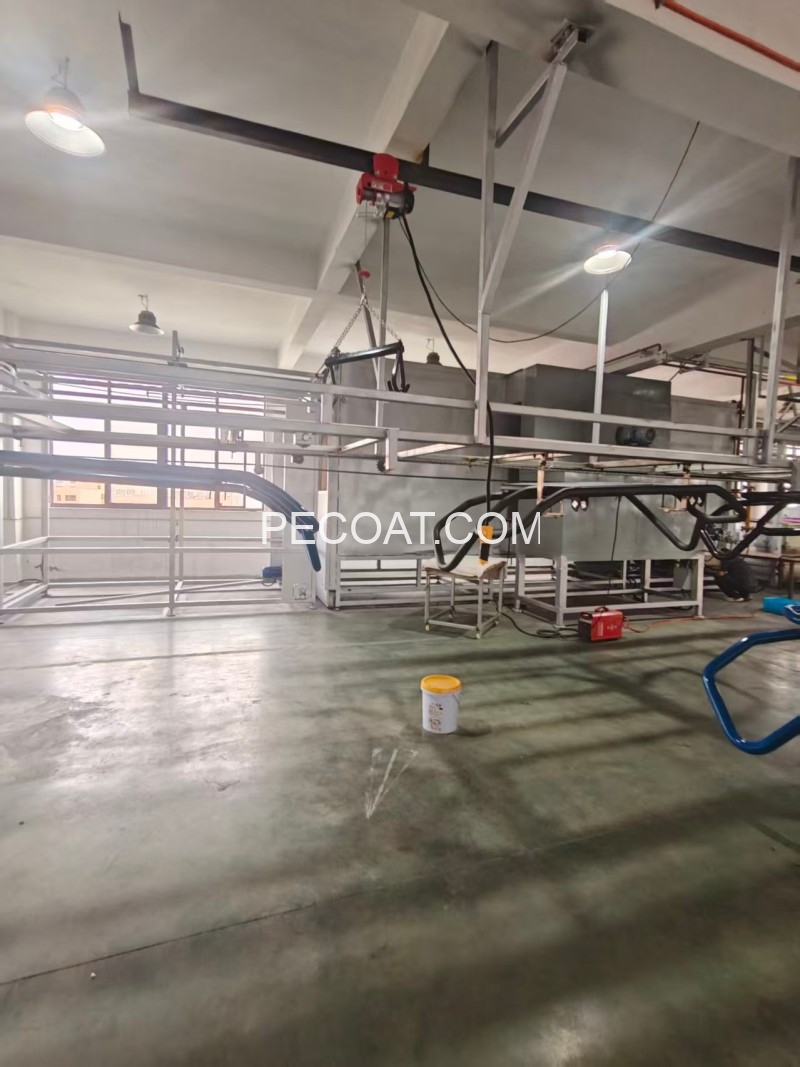

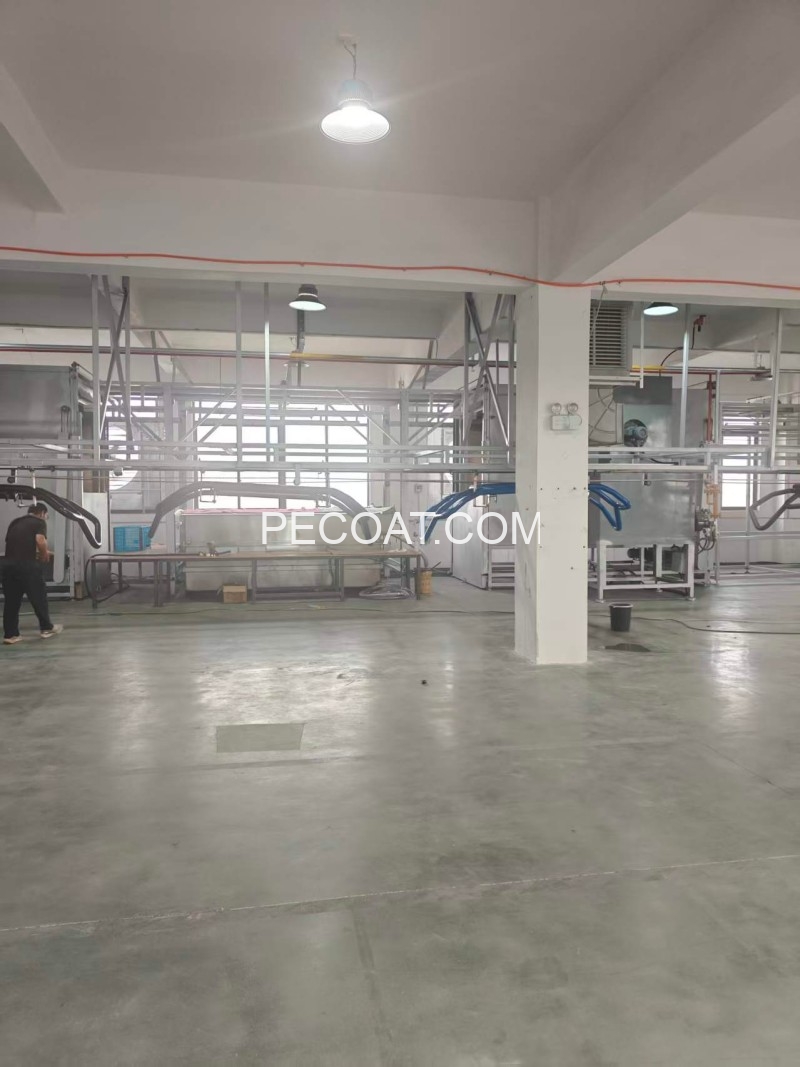

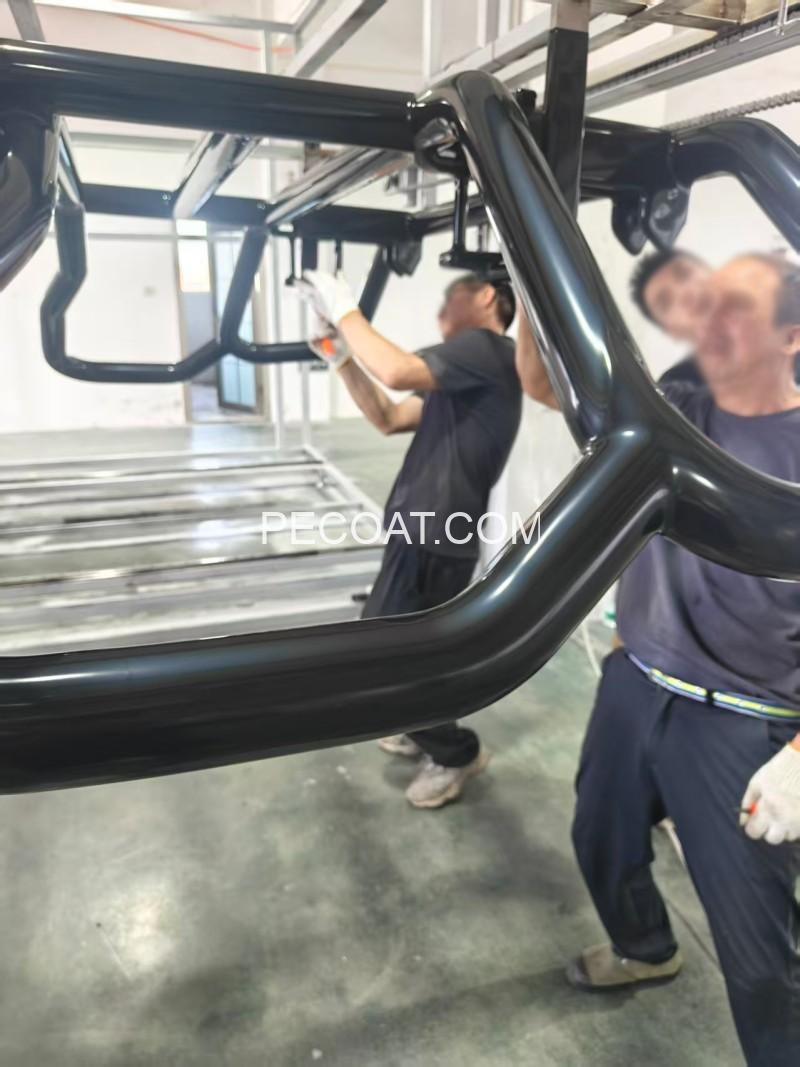

  • Adopts hanging conveyance solution, one workpiece per trolley; custom‑engineered fixtures and trolleys to match heavy‑load anti‑collision beam.
  • Natural‑gas‑fired ovens for stable & energy‑saving pre‑heating and curing temperature control.
  • Full process workflow: loading → pre‑heating → PVC dipping → curing → unloading.
  • Custom‑sized fixtures and equipment frame, quick color switch for black / blue coating production.
  • Supply scope includes equipment manufacturing, transportation and on‑site installation. Overseas travel & accommodation costs are excluded.

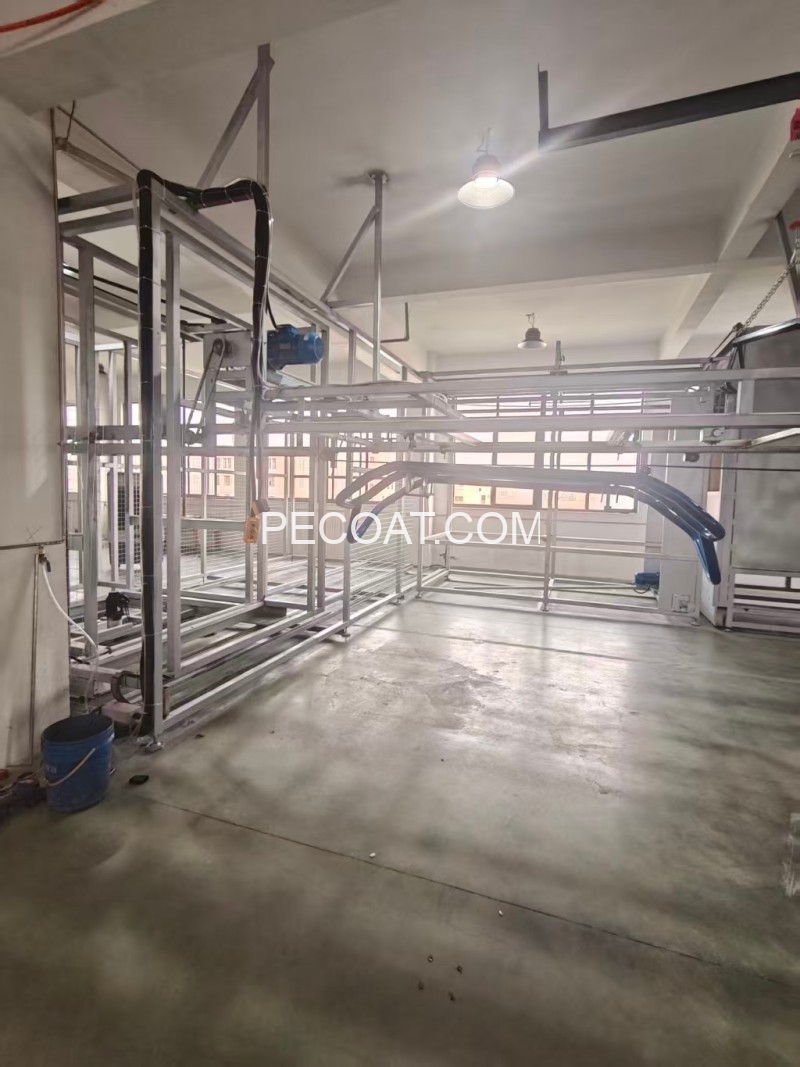

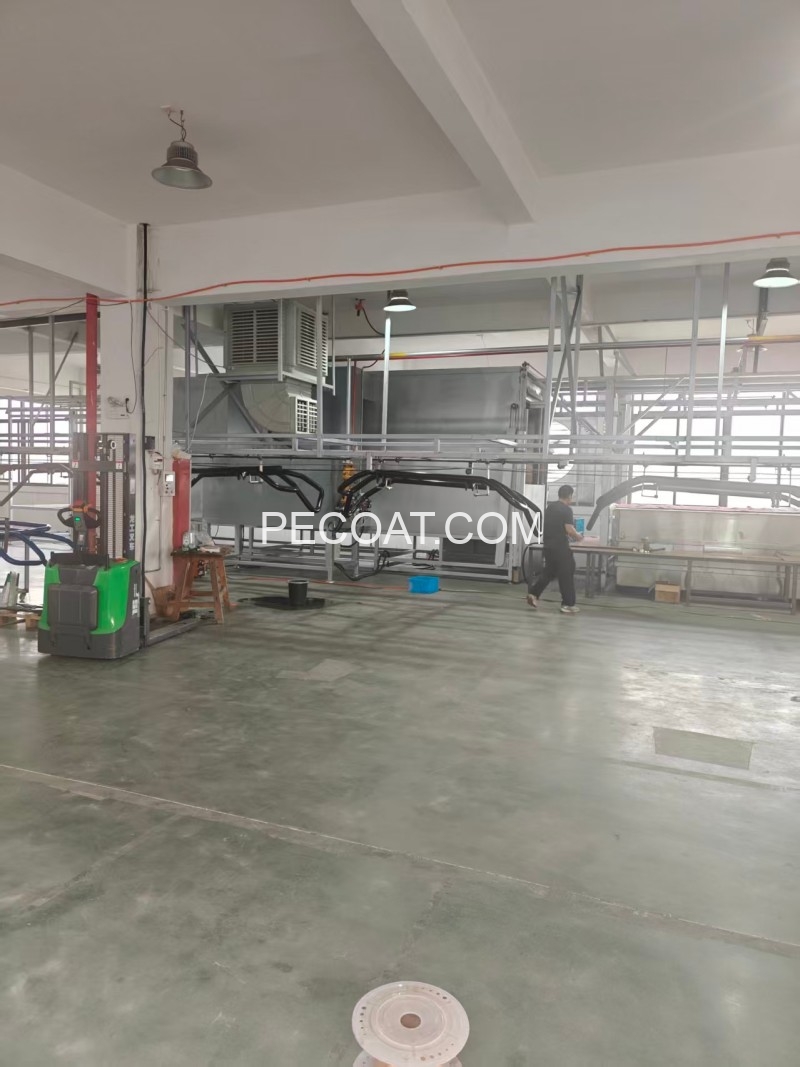

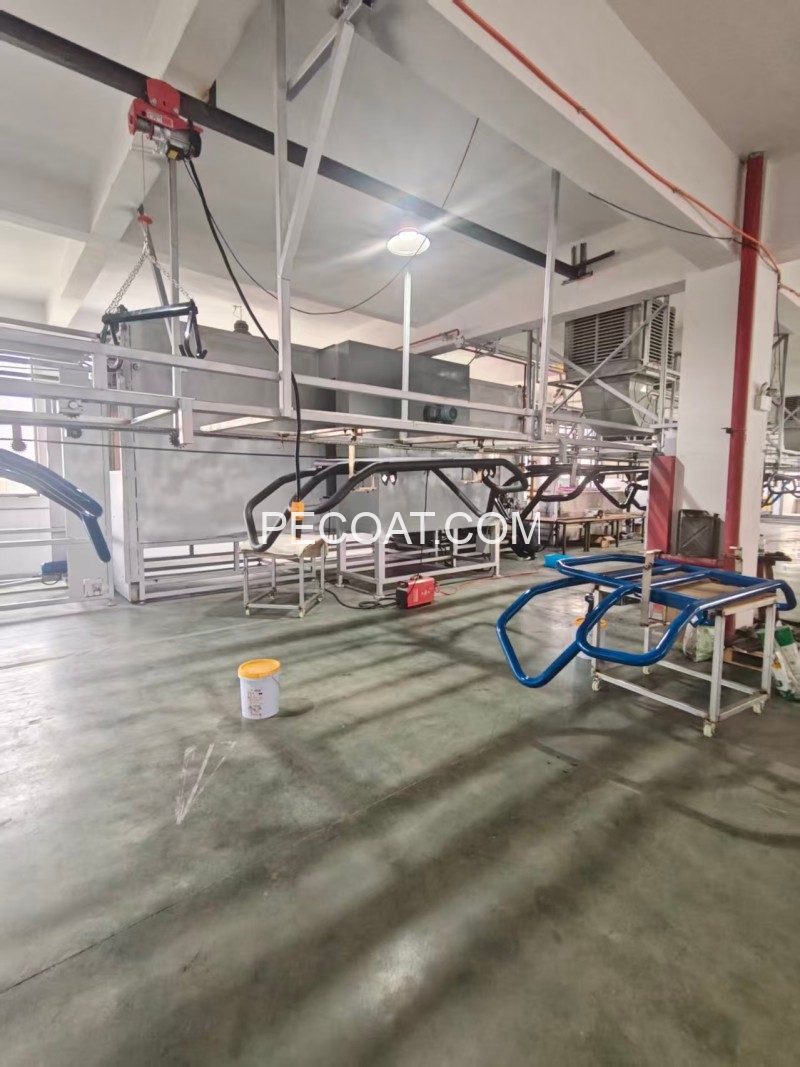

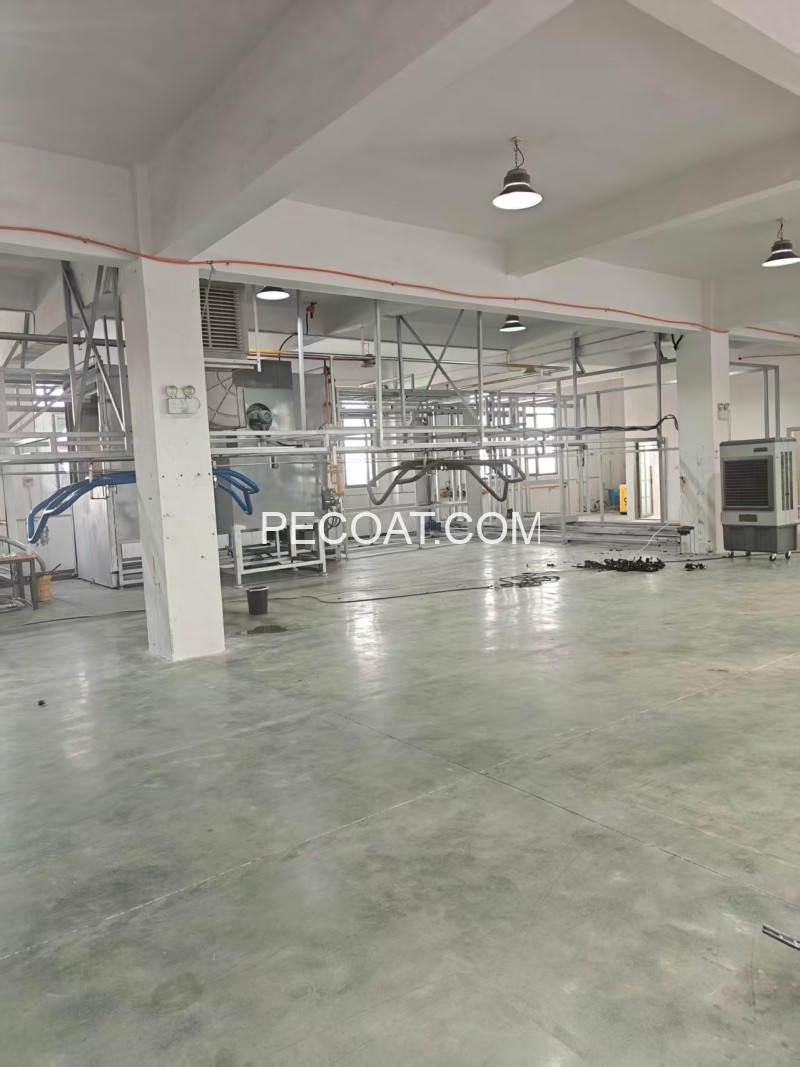

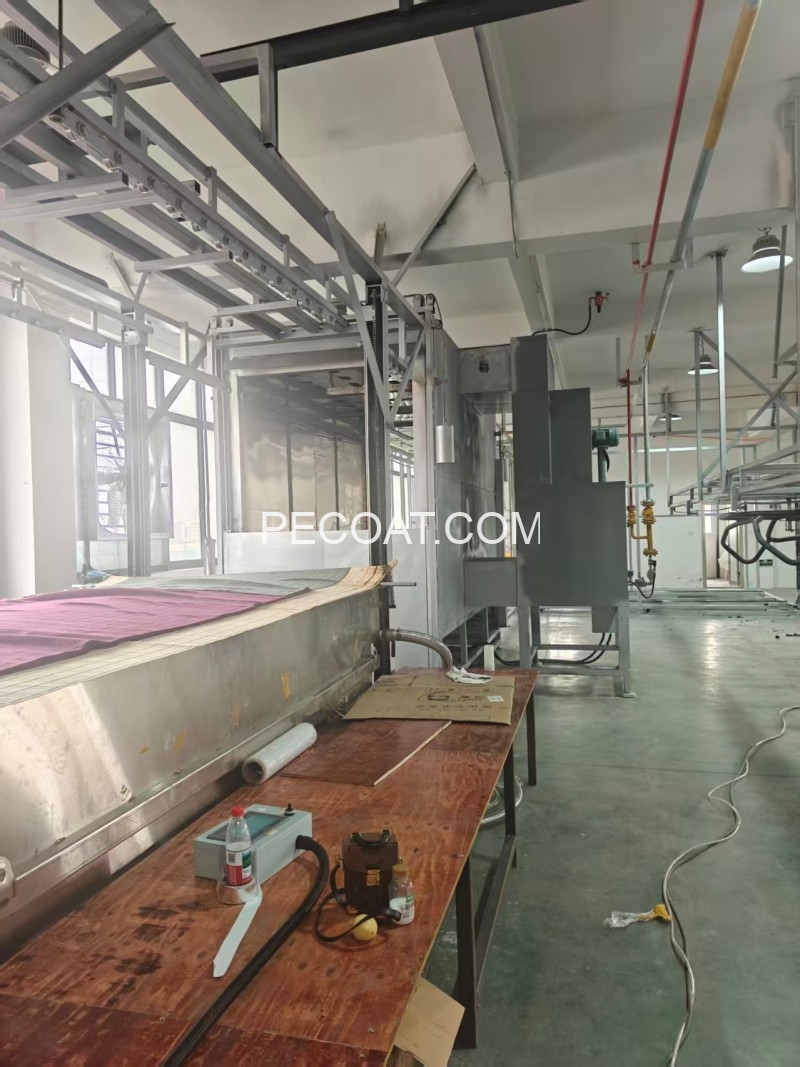

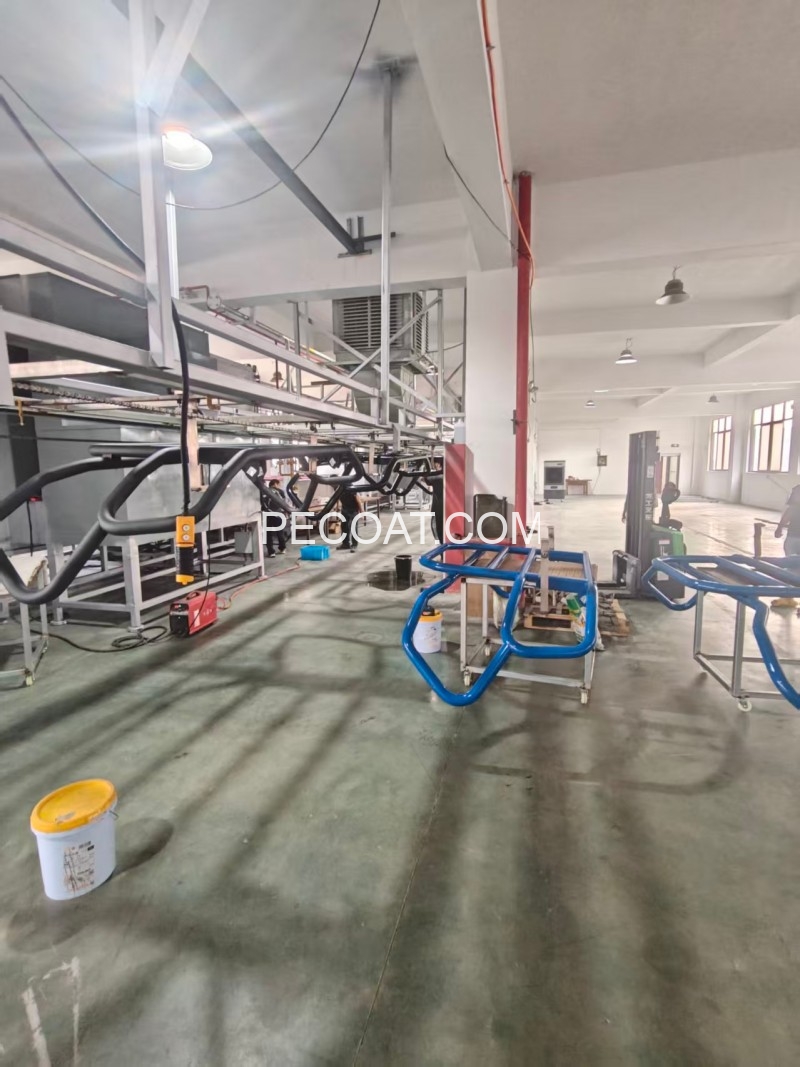

On‑site Construction Service

We provide complete on‑site construction, assembly, wiring, commissioning & operator training service for this PVC dip coating line. According to customer’s factory layout, workpiece size & output requirement, we adjust line layout and fixture solution for best‑fit production performance.

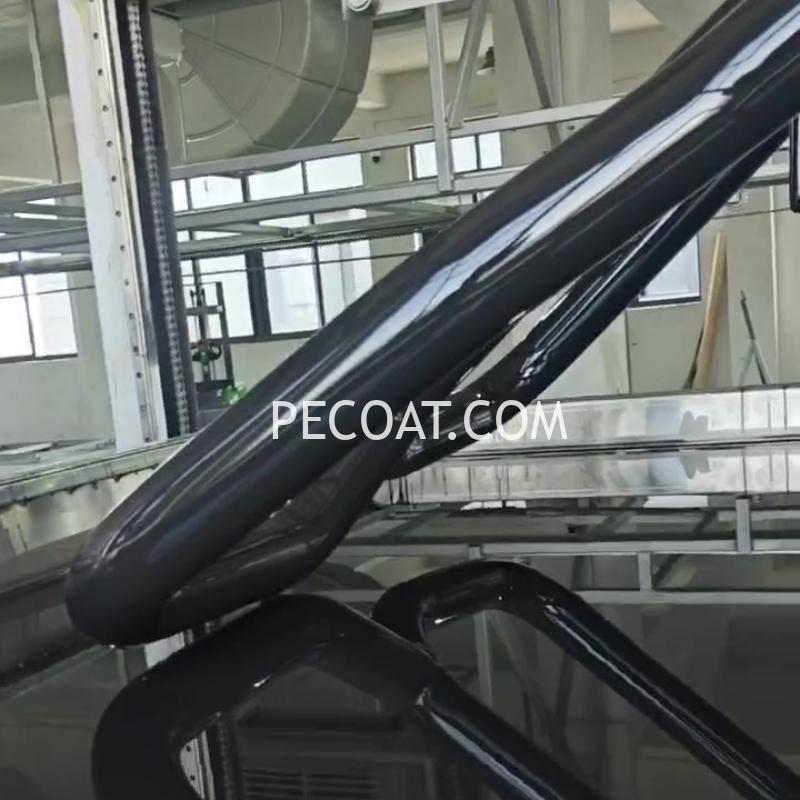

Application Effect

  • Automated production: Full‑automatic dipping operation for 55‑80 kg large‑size anti‑collision beams, eliminating uneven coating thickness caused by manual impregnation.
  • Reliable throughput: Stable production capacity reaches 3‑5 pieces per hour, meets mass‑production requirement for truck anti‑collision beam components.
  • Multi‑color compatibility: Supports both black and silver coating output; dual‑tank configuration ensures non‑stop line running during color switching.
  • Energy‑saving heating: Natural gas burner heating keeps stable temperature for pre‑heating and curing sections, reduces comprehensive operating energy consumption.

Our Service

  • Custom layout design according to your workpiece dimension, weight and hourly output target
  • Manufacturing, packing & sea‑worthy transportation
  • On‑site assembly, installation and full‑machine commissioning
  • Technical training for local operators
  • Long‑term after‑sales technical support & spare‑part guidance

Please contact us and share your workpiece drawing & capacity requirement, we will send you detailed quotation and layout drawing.

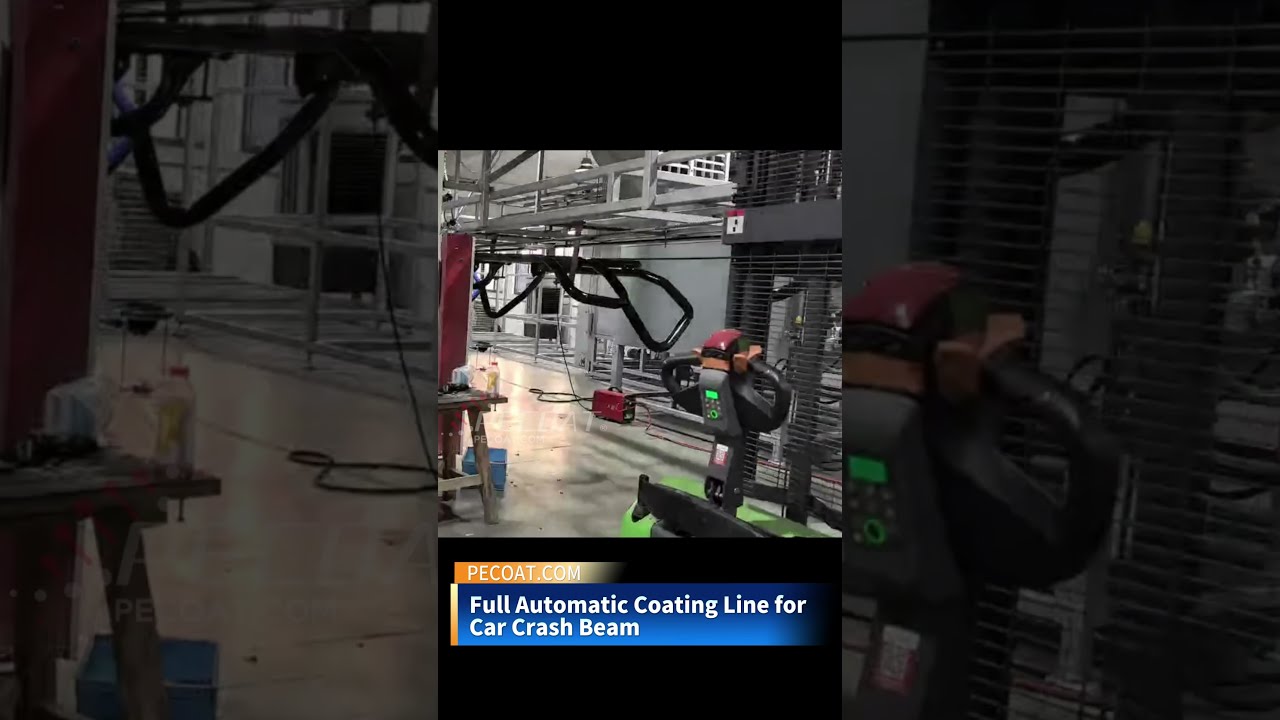

Video Show

Additional information

Country of Origin

China

Material

Steel

Brand

PECOAT®

Production Time

40 Days

Use

Dip Plastic Coating

1 review for Automatic PVC Dip Coating Line for Truck Bumper Guard Anti‑Collision Beam

  1. DNO –

    do you supply installation ?
