Thermoplastic Polyethylene PE Powder Coating White Color for Refrigerator Shelves Grids Basket
Introduction
PECOAT® Thermoplastic Polyethylene PE Powder Coating White Color for Refrigerator Shelves Grids Basket is based with high-pressure polyethylene (LDPE) resin, adding a variety of functional additives and color pigments. it is designed for refrigerator grids,shelves. The powder is applied with fluidized bed dipping process, It has excellent chemical resistance, anti-aging, impact resistance, bending resistance, acid resistance, corrosion resistance, and good surface decoration properties.
Characteristics
- Excellent chemical resistance
- Excellent flexibility and impact resistance
- Good low temperature resistance
- Suitable in severe cold environments.
- Non-toxic, Environmentally friendly
- Food contact
- Smooth finish
Use

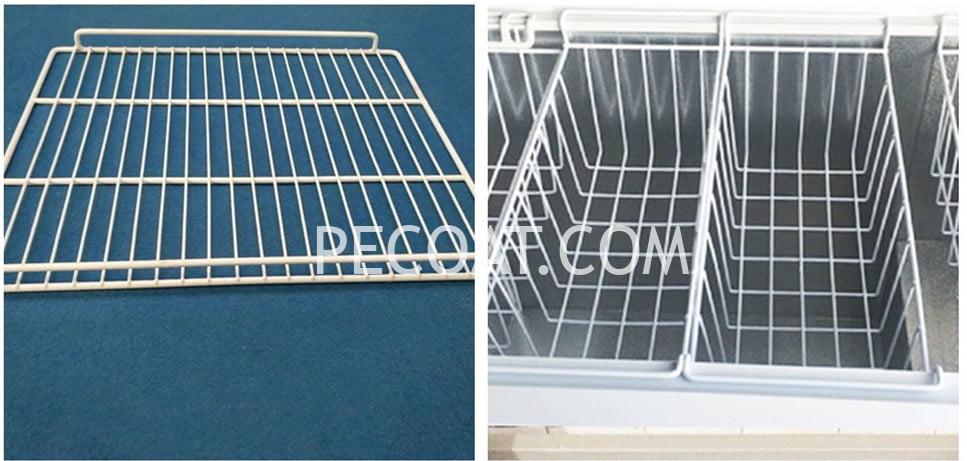

Refrigerator grids and basket shelf, freezer container racks
Specifications
| Item | Standard | Test Result | |
| Appearance(visual) | Smooth | Conform | |
| Gloss%(GB9754,60°) | 55%-60% | 57% | |
| Color(GB9761) | Same by visual | Conform | |
| Specific gravity | 0.92-0.95 | 0.95 | |
| Average particle size | 220-280 um | Conform | |
| vicat softening point(ºC) (GB1633) |
70-88 | Conform | |
| Bending(Film Thickness200μm) (GB6742) |
≤2mm | Conform | |
| Electrical strength Kv/mm (GB1408) |
≥19 | Conform | |
| Low temperature resistance (Q/HJ008-2003) |
-35ºC,60h no cracking | Conform | |
| Chemical resistance Reagent |
5%HCI soak 7d (GB/T1865) |
The appearance of coating has no change | Conform |
| 5%NaOHsoak7d (GB/T1763) |
The appearance of coating has no change | Conform | |
| 5%NaCI soak7d(GB/T1763) | The appearance of coating has no change | Conform | |
Application for PE Powder Coating for Refrigerator Shelves
- Pre-treatment substrate: According to the substrateand the required performance, the surface of the treated substrate should be neutral.
- Pre-heat temperature : 280-330℃ (Adjust according to the heat capacity of the work-piece and room temperature.)
- Dwell Timefor dipping in a fluid bed: 3-20 seconds (adjust according to customers’ required thickness and work-piece)
- Post-heat temperatureand time: 180-220℃/2-5minutes (Adjust according to the heat capacity of the work-piece and the melt flow index of the powder)
- Cooling: Air cooled or naturally cooled to room temperature.
Hygiene Test Report – Safety Contact With Food and Water
Packing and Storage
25kg/bag
- Stored in a clean dry area less than 40℃ and out of sunlight , storage time 2 years.
- After expiration, it can still be used if no quality problem after testing.
- PECOAT®PE powder can not be mixed with powder from other supplier.
About Thermoplastic Polyethylene PE Powder Coating White Color for Refrigerator Shelves Grids Basket, please feel free to contact us for sample testing.
Use Videos
Fluidized Bed Dipping process for Thermoplastic Polyethylene PE Powder Coating
