PA Nylon Powder Coating for Spline Shafts Extend Service Life

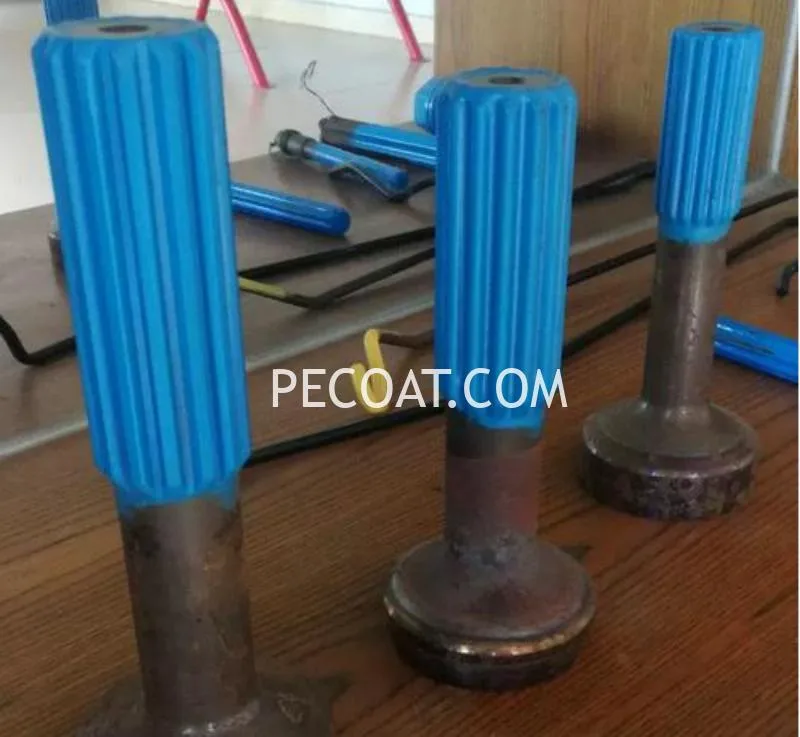

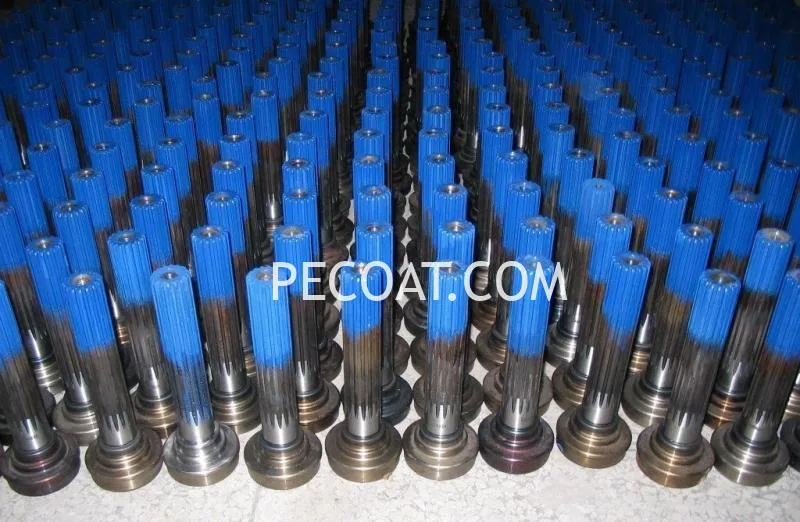

The nylon powder coating for spline shafts is a special functional coating suitable for spline shaft transmission scenarios. It is widely used in fields such as automobiles and agricultural machinery. Its core values are to improve the wear resistance of spline shafts, reduce transmission noise, and extend service life.
1. Common Coating Types and Characteristics
| Coating Type | Core Characteristics | Application Scenarios |
|---|---|---|
| Nylon 11 (PA11) | High hardness, excellent wear resistance, good chemical resistance, solvent resistance and weather resistance, strong adhesion, suitable for long-term working conditions of automotive transmission. It is currently the mainstream choice for automotive spline shafts. | Spline shafts of cars and some heavy-duty vehicles, transmission components that need to have the same service life as the car. |
| Nylon 1010 (PA1010) | Outstanding toughness, good compatibility with metal substrates, and can be combined with adhesives to improve adhesion stability. | Spline shafts of agricultural machinery and general machinery with high toughness requirements. |
| Nylon Composite Powder | Based on Nylon 11 or 1010, mixed with modified molybdenum disulfide, nano-alumina, etc. The gradient coating has an increasing content of reinforcing phases from the inside to the outside, combining the toughness of nylon with the self-lubricating properties of the reinforcing phases. | Spline shafts for heavy-duty, high-frequency transmission with extremely high requirements for wear resistance and self-lubrication. |
2. Core Application Advantages
- Significant Wear Reduction and Noise Reduction: Nylon coating has a low friction coefficient, which can reduce the fit clearance and friction resistance between the spline shaft and the spline sleeve, not only reducing the friction noise during transmission, but also avoiding adhesive wear between metals and improving transmission smoothness, which is crucial for vehicle ride comfort.
- Extended Service Life: Compared with traditional surface quenching process, nylon coating can increase the service life of spline shaft by 5-20 times. For example, the composite coating with nano-alumina can control the wear amount within a very low range when the service life reaches 500,000 times in bench tests; after coating, the spline shaft of agricultural machinery can also significantly reduce the wear rate and ensure the power transmission accuracy.
- Reduced Production Costs: The use of this coating can eliminate the grinding and quenching process in the traditional processing of spline shafts, simplifying the production process; and the coating cost only accounts for 2-10% of the product price, but it can greatly reduce the subsequent maintenance and replacement costs and enhance the market competitiveness of the product.
3. Typical Coating Process
At present, fluidized bed dip coating and electrostatic spraying are the main methods for nylon powder coating of spline shafts, and high-end automotive products also adopt gradient composite coating process. The specific process is as follows:
- Pretreatment: First, the spline shaft is subjected to shot blasting derusting or phosphating treatment to remove surface impurities and oxide layers; then a special nylon primer or high-temperature epoxy resin adhesive is pre-coated to lay the foundation for coating adhesion.
- Coating Operation: The conventional process is to heat the spline shaft to about 260°C and dip-coat it in a nylon fluidized barrel about 3 times; the high-end composite coating adopts double-gun electrostatic spraying, first spraying the Nylon 11/1010 base film through gun A, and then gradually increasing the amount of molybdenum disulfide or nano-alumina through gun B to form a gradient coating. The coating thickness is usually controlled at 0.1-0.35mm.
- Post-treatment: After coating, it is cooled and water-cooled, and then the excess coating is cut off with a punch to ensure that the dimensional accuracy of the spline shaft meets the assembly requirements.
4. Main Application Scenarios
- Automotive Field: It is a standard coating solution for spline components such as steering shafts and drive shafts of cars and heavy-duty vehicles. Relying on the wear resistance and shock absorption of the coating, it ensures the transmission reliability of the car during long-term driving and matches the overall service life of the car.
- Agricultural Machinery Field: After the spline shaft of the agricultural machinery drive shaft is coated with nylon coating, it can not only adapt to the power transmission under complex working conditions in the field, but also improve the convenience of maintenance and reduce the impact of frequent maintenance on the operation progress.
- General Machinery Field: It is suitable for spline components of various small and medium-sized transmission machinery, especially for high-frequency and slight vibration working conditions, and can alleviate the problem of fretting wear through self-lubricating properties.
